Industry Canada File Number: 2619
Channel/Class: 254C1 (98.7)
Broadcasting Mode: Mono
Status:
NAD83 Coordinates: 44 44' 33.00" N 80 54' 18.00" W
Site Elevation: 290 m
| Effective Radiated Power |
12.077 kW |
11.455 kW |
| Maximum Effective Radiated Power |
26.544 kW |
29.24 kW |
| Height Above Average Terrain |
213m |
213m |
| Radiation Center Above Ground Level |
131m |
131m |
| Radiation Center Above Mean Sea Level |
421m |
421m |
Overall Antenna Height Above Ground: 151 m

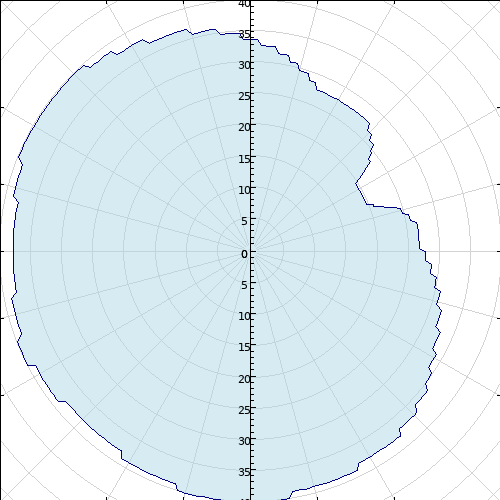

Antenna Type: Directional
Antenna System ID: 6635
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -6.00 | 7.3 |
90 | -12.00 | 1.8 |
180 | 0.00 | 29.2 |
270 | -2.00 | 18.4 |
| 5 | -7.00 | 5.8 |
95 | -11.00 | 2.3 |
185 | 0.00 | 29.2 |
275 | -2.00 | 18.4 |
| 10 | -8.00 | 4.6 |
100 | -10.00 | 2.9 |
190 | 0.00 | 29.2 |
280 | -2.00 | 18.4 |
| 15 | -10.00 | 2.9 |
105 | -9.00 | 3.7 |
195 | 0.00 | 29.2 |
285 | -1.00 | 23.2 |
| 20 | -11.00 | 2.3 |
110 | -8.00 | 4.6 |
200 | -1.00 | 23.2 |
290 | -1.00 | 23.2 |
| 25 | -12.00 | 1.8 |
115 | -7.00 | 5.8 |
205 | -1.00 | 23.2 |
295 | 0.00 | 29.2 |
| 30 | -12.00 | 1.8 |
120 | -6.00 | 7.3 |
210 | -1.00 | 23.2 |
300 | 0.00 | 29.2 |
| 35 | -12.00 | 1.8 |
125 | -5.00 | 9.2 |
215 | -2.00 | 18.4 |
305 | 0.00 | 29.2 |
| 40 | -12.00 | 1.8 |
130 | -4.00 | 11.6 |
220 | -2.00 | 18.4 |
310 | 0.00 | 29.2 |
| 45 | -13.00 | 1.5 |
135 | -3.00 | 14.7 |
225 | -2.00 | 18.4 |
315 | 0.00 | 29.2 |
| 50 | -15.00 | 0.9 |
140 | -3.00 | 14.7 |
230 | -2.00 | 18.4 |
320 | -1.00 | 23.2 |
| 55 | -18.00 | 0.5 |
145 | -2.00 | 18.4 |
235 | -1.00 | 23.2 |
325 | -1.00 | 23.2 |
| 60 | -20.00 | 0.3 |
150 | -2.00 | 18.4 |
240 | -1.00 | 23.2 |
330 | -2.00 | 18.4 |
| 65 | -20.00 | 0.3 |
155 | -1.00 | 23.2 |
245 | 0.00 | 29.2 |
335 | -3.00 | 14.7 |
| 70 | -19.00 | 0.4 |
160 | -1.00 | 23.2 |
250 | -1.00 | 23.2 |
340 | -3.00 | 14.7 |
| 75 | -15.00 | 0.9 |
165 | -1.00 | 23.2 |
255 | -1.00 | 23.2 |
345 | -4.00 | 11.6 |
| 80 | -13.00 | 1.5 |
170 | -1.00 | 23.2 |
260 | -2.00 | 18.4 |
350 | -4.00 | 11.6 |
| 85 | -13.00 | 1.5 |
175 | 0.00 | 29.2 |
265 | -2.00 | 18.4 |
355 | -5.00 | 9.2 |
|
|
| Broadcasting Certificate effective date | 07/24/2024 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2025 | | Application received | 04/26/2024 | | On-air date | 07/16/2018 | | CRTC letter date | 09/20/2017 | | CRTC hearing date | 11/22/2017 |
|
