Industry Canada File Number: 4548
CRTC Decision Number: 50509
Channel/Class: 239C (95.7)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 44 21' 0.00" N 79 41' 49.92" W
Short Spacing Code: LI
Site Elevation: 305 m
| Effective Radiated Power |
41 kW |
41 kW |
| Maximum Effective Radiated Power |
100 kW |
100 kW |
| Height Above Average Terrain |
303m |
303m |
| Radiation Center Above Ground Level |
253m |
253m |
| Radiation Center Above Mean Sea Level |
558m |
558m |
Overall Antenna Height Above Ground: 305 m

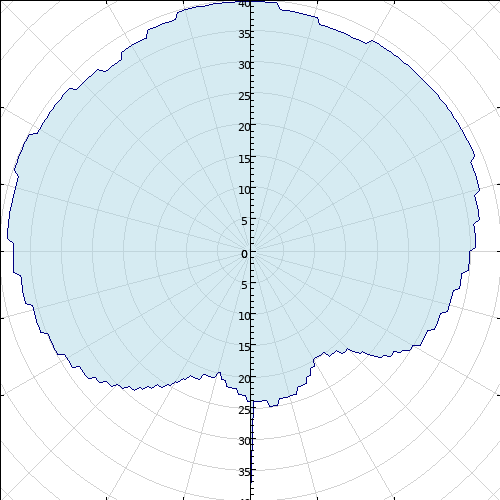

Antenna Type: Directional
Antenna System ID: 4799
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | 0.00 | 100.0 |
90 | -5.00 | 31.6 |
180 | -16.00 | 2.5 |
270 | -2.00 | 63.1 |
| 5 | 0.00 | 100.0 |
95 | -5.00 | 31.6 |
185 | -17.00 | 2.0 |
275 | -1.00 | 79.4 |
| 10 | -1.00 | 79.4 |
100 | -6.00 | 25.1 |
190 | -18.00 | 1.6 |
280 | -1.00 | 79.4 |
| 15 | -1.00 | 79.4 |
105 | -7.00 | 20.0 |
195 | -20.00 | 1.0 |
285 | -1.00 | 79.4 |
| 20 | -2.00 | 63.1 |
110 | -8.00 | 15.8 |
200 | -19.00 | 1.3 |
290 | 0.00 | 100.0 |
| 25 | -2.00 | 63.1 |
115 | -9.00 | 12.6 |
205 | -18.00 | 1.6 |
295 | 0.00 | 100.0 |
| 30 | -1.00 | 79.4 |
120 | -10.00 | 10.0 |
210 | -16.00 | 2.5 |
300 | -1.00 | 79.4 |
| 35 | -1.00 | 79.4 |
125 | -12.00 | 6.3 |
215 | -14.00 | 4.0 |
305 | -1.00 | 79.4 |
| 40 | -1.00 | 79.4 |
130 | -14.00 | 4.0 |
220 | -11.00 | 7.9 |
310 | -1.00 | 79.4 |
| 45 | -1.00 | 79.4 |
135 | -18.00 | 1.6 |
225 | -10.00 | 10.0 |
315 | -2.00 | 63.1 |
| 50 | -1.00 | 79.4 |
140 | -19.00 | 1.3 |
230 | -8.00 | 15.8 |
320 | -2.00 | 63.1 |
| 55 | -1.00 | 79.4 |
145 | -20.00 | 1.0 |
235 | -7.00 | 20.0 |
325 | -3.00 | 50.1 |
| 60 | -1.00 | 79.4 |
150 | -20.00 | 1.0 |
240 | -6.00 | 25.1 |
330 | -2.00 | 63.1 |
| 65 | -1.00 | 79.4 |
155 | -18.00 | 1.6 |
245 | -5.00 | 31.6 |
335 | -1.00 | 79.4 |
| 70 | -2.00 | 63.1 |
160 | -17.00 | 2.0 |
250 | -4.00 | 39.8 |
340 | -1.00 | 79.4 |
| 75 | -2.00 | 63.1 |
165 | -16.00 | 2.5 |
255 | -4.00 | 39.8 |
345 | 0.00 | 100.0 |
| 80 | -3.00 | 50.1 |
170 | -15.00 | 3.2 |
260 | -3.00 | 50.1 |
350 | 0.00 | 100.0 |
| 85 | -4.00 | 39.8 |
175 | -16.00 | 2.5 |
265 | -2.00 | 63.1 |
355 | 0.00 | 100.0 |
|
| Limited to 100 kW and 235 m towards 238C1 Belleville, ON, (AZ 92.3°) Limited to 100 kW and 300 m towards 238A Kincardine, ON, (AZ 262.5°) Limited to 50 kW and 300 m towards 240C1 London, ON, (AZ 219.5°) Limited to current parameters, including directional antenna pattern towards 240C1 Ajax, ON, (AZ 100° to 165°) |
| Limitée à 100 kW et 235 m vers 238C1 Belleville, ON, (AZ 92.3) Limitée à 100 kW et 300 m vers 238A Kincardine, ON, (AZ 262.5°) Limitée à 50 kW et 300 m vers 240C1 London, ON, (AZ 219.5°) Limitée aux paramètres courrants, incluant le diagramme d'antenne directionnel vers 240C1 Ajax, ON, (AZ 100° to 165°)
|
|
|
| Broadcasting Certificate effective date | 05/30/2018 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2031 | | International coordination request sent | 03/07/2005 | | International coordination reply received | 03/29/2005 | | Application received | 05/17/2018 | | Letter of Authorization issued | 10/26/2005 | | On-air date | 12/28/2005 | | CRTC letter date | 02/18/2005 | | CRTC hearing date | 10/20/2005 |
|
