Industry Canada File Number: 4771
CRTC Decision Number: 80110
Channel/Class: 290B (105.9)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 44 31' 54.84" N 79 39' 43.92" W
Short Spacing Code: LI
Site Elevation: 411 m
| Effective Radiated Power |
10.6 kW |
10.6 kW |
| Maximum Effective Radiated Power |
20 kW |
20 kW |
| Height Above Average Terrain |
214m |
214m |
| Radiation Center Above Ground Level |
73m |
73m |
| Radiation Center Above Mean Sea Level |
484m |
484m |
Overall Antenna Height Above Ground: 122 m

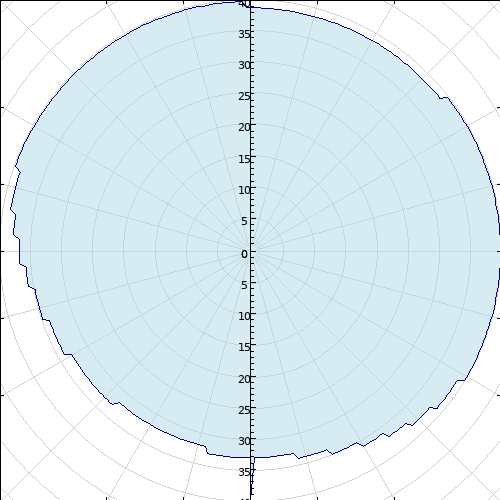

Antenna Type: Directional
Antenna System ID: 4810
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -1.00 | 15.9 |
90 | 0.00 | 20.0 |
180 | -7.00 | 4.0 |
270 | -3.00 | 10.0 |
| 5 | -1.00 | 15.9 |
95 | 0.00 | 20.0 |
185 | -7.00 | 4.0 |
275 | -2.00 | 12.6 |
| 10 | -1.00 | 15.9 |
100 | 0.00 | 20.0 |
190 | -7.00 | 4.0 |
280 | -1.00 | 15.9 |
| 15 | -1.00 | 15.9 |
105 | 0.00 | 20.0 |
195 | -8.00 | 3.2 |
285 | -1.00 | 15.9 |
| 20 | -1.00 | 15.9 |
110 | 0.00 | 20.0 |
200 | -8.00 | 3.2 |
290 | 0.00 | 20.0 |
| 25 | -1.00 | 15.9 |
115 | 0.00 | 20.0 |
205 | -8.00 | 3.2 |
295 | 0.00 | 20.0 |
| 30 | -1.00 | 15.9 |
120 | 0.00 | 20.0 |
210 | -8.00 | 3.2 |
300 | 0.00 | 20.0 |
| 35 | -1.00 | 15.9 |
125 | -1.00 | 15.9 |
215 | -8.00 | 3.2 |
305 | 0.00 | 20.0 |
| 40 | -1.00 | 15.9 |
130 | -1.00 | 15.9 |
220 | -8.00 | 3.2 |
310 | 0.00 | 20.0 |
| 45 | -1.00 | 15.9 |
135 | -2.00 | 12.6 |
225 | -7.00 | 4.0 |
315 | 0.00 | 20.0 |
| 50 | -1.00 | 15.9 |
140 | -3.00 | 10.0 |
230 | -7.00 | 4.0 |
320 | 0.00 | 20.0 |
| 55 | 0.00 | 20.0 |
145 | -4.00 | 8.0 |
235 | -7.00 | 4.0 |
325 | 0.00 | 20.0 |
| 60 | 0.00 | 20.0 |
150 | -4.00 | 8.0 |
240 | -7.00 | 4.0 |
330 | 0.00 | 20.0 |
| 65 | 0.00 | 20.0 |
155 | -5.00 | 6.3 |
245 | -6.00 | 5.0 |
335 | 0.00 | 20.0 |
| 70 | 0.00 | 20.0 |
160 | -6.00 | 5.0 |
250 | -6.00 | 5.0 |
340 | 0.00 | 20.0 |
| 75 | 0.00 | 20.0 |
165 | -6.00 | 5.0 |
255 | -5.00 | 6.3 |
345 | 0.00 | 20.0 |
| 80 | 0.00 | 20.0 |
170 | -7.00 | 4.0 |
260 | -5.00 | 6.3 |
350 | 0.00 | 20.0 |
| 85 | 0.00 | 20.0 |
175 | -7.00 | 4.0 |
265 | -4.00 | 8.0 |
355 | 0.00 | 20.0 |
|
| Limited to the proposed parameters towards 291B Guelph, ON along the azimuths from 181.5° to 223.5° |
| Limité aux paramètres vers 291B Guelph, ON au long des azimuths de 181.5° à 223.5°
|
|
|
| Broadcasting Certificate effective date | 06/15/2018 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2024 | | International coordination request sent | 04/15/2008 | | International coordination reply received | 04/24/2008 | | Application received | 05/24/2018 | | Letter of Authorization issued | 05/30/2008 | | On-air date | 02/24/2009 | | CRTC letter date | 03/04/2008 | | CRTC hearing date | 05/21/2008 |
|
