Call Sign	Community Name	Licensee Name

Industry Canada - Canada

CIMA-FM

Alliston ON

Local Radio Lab Inc.
185 Lake Promenade
Box 961
Toronto
ON

Industry Canada File Number: 9568
CRTC Decision Number: 120491
Channel/Class: 221A (92.1)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 44 8' 44.88" N 79 50' 15.00" W
Short Spacing Code: #LI
Site Elevation: 221 m
Subsidiary Carrier Multiple Operation

	Horiz	Vert
Effective Radiated Power	1.986 kW	1.986 kW
Maximum Effective Radiated Power	3.75 kW	3.75 kW
Height Above Average Terrain	30m	30m
Radiation Center Above Ground Level	55m	55m
Radiation Center Above Mean Sea Level	276m	276m

Overall Antenna Height Above Ground: 90 m

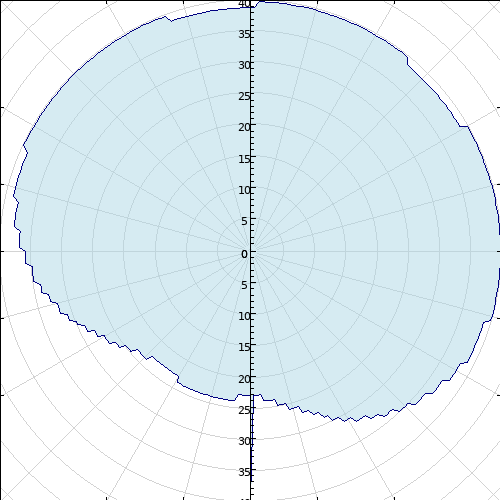

Antenna Type: Directional
Antenna System ID: 6716

Rad	dB	ERP	Rad	dB	ERP	Rad	dB	ERP	Rad	dB	ERP
0	-1.00	2.979	90	0.00	3.750	180	-17.00	0.075	270	-4.00	1.493
5	0.00	3.750	95	0.00	3.750	185	-17.00	0.075	275	-3.00	1.879
10	0.00	3.750	100	0.00	3.750	190	-16.00	0.094	280	-2.00	2.366
15	0.00	3.750	105	0.00	3.750	195	-16.00	0.094	285	-1.00	2.979
20	0.00	3.750	110	-1.00	2.979	200	-16.00	0.094	290	-1.00	2.979
25	0.00	3.750	115	-1.00	2.979	205	-16.00	0.094	295	0.00	3.750
30	0.00	3.750	120	-2.00	2.366	210	-17.00	0.075	300	0.00	3.750
35	0.00	3.750	125	-3.00	1.879	215	-17.00	0.075	305	0.00	3.750
40	-1.00	2.979	130	-4.00	1.493	220	-17.00	0.075	310	0.00	3.750
45	-1.00	2.979	135	-5.00	1.186	225	-16.00	0.094	315	0.00	3.750
50	-1.00	2.979	140	-6.00	0.942	230	-15.00	0.119	320	0.00	3.750
55	-1.00	2.979	145	-8.00	0.594	235	-14.00	0.149	325	0.00	3.750
60	0.00	3.750	150	-9.00	0.472	240	-13.00	0.188	330	0.00	3.750
65	0.00	3.750	155	-11.00	0.298	245	-11.00	0.298	335	0.00	3.750
70	0.00	3.750	160	-13.00	0.188	250	-9.00	0.472	340	0.00	3.750
75	0.00	3.750	165	-14.00	0.149	255	-8.00	0.594	345	-1.00	2.979
80	0.00	3.750	170	-15.00	0.119	260	-6.00	0.942	350	-1.00	2.979
85	0.00	3.750	175	-16.00	0.094	265	-5.00	1.186	355	-1.00	2.979

LIMITS

2300 W and 37 m HAAT towards 220A*(L) Toronto, ON (Az.=143.2°) proposed parameters towards 220B*(L) Lindsay, ON (Az.=36° to 126°) proposed parameters towards 221C1*(L) Brantford, ON (Az.=144.5° to 258°) 4.5 kW and 30 m towards 222B*(L) Owen Sound, ON (Az.=295°) 6 kW and 30 m towards 222A(L) Georgina Island, ON (Az.=58.7°) proposed parameters towards 223B*(L) Toronto, ON (Az.=69.8° to 223°)

2300 W et 37 m vers 220A*(L) Toronto, ON (Az.=143.2°) paramètres proposés et patron d'antenne vers 220B*(L) Lindsay, ON (Az.=36° to 126°) paramètres proposés et patron d'antenne vers 221C1*(L) Brantford, ON (Az.=144.5° to 258°) 4.5 kW et 30 m vers 222B*(L) Owen Sound, ON (Az.=295°) 6 kW et 30 m vers 222A(L) Georgina Island, ON (Az.=58.7°) paramètres proposés et patron d'antenne vers 223B*(L) Toronto, ON (Az.=69.8° to 223°)

APPLICATION HISTORY

Broadcasting Certificate effective date	10/08/2024
Broadcasting Certificate renewal date or LOA or OATA expiry date	08/31/2026
International coordination request sent	03/30/2011
International coordination reply received	04/10/2012
Application received	10/02/2024
Letter of Authorization issued	09/18/2012
On-air date	09/20/2013
CRTC letter date	08/26/2011
CRTC hearing date	09/12/2012
