Industry Canada File Number: 5477
CRTC Decision Number: 60288
Channel/Class: 286B (105.1)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 43 5' 36.96" N 79 12' 51.84" W
REC measured distance to USA: 9.9 km - 86.9
Short Spacing Code: LI
Site Elevation: 180 m
| Effective Radiated Power |
4 kW |
4 kW |
| Maximum Effective Radiated Power |
15 kW |
15 kW |
| Height Above Average Terrain |
127.9m |
127.9m |
| Radiation Center Above Ground Level |
102m |
102m |
| Radiation Center Above Mean Sea Level |
282m |
282m |
Overall Antenna Height Above Ground: 121.9 m

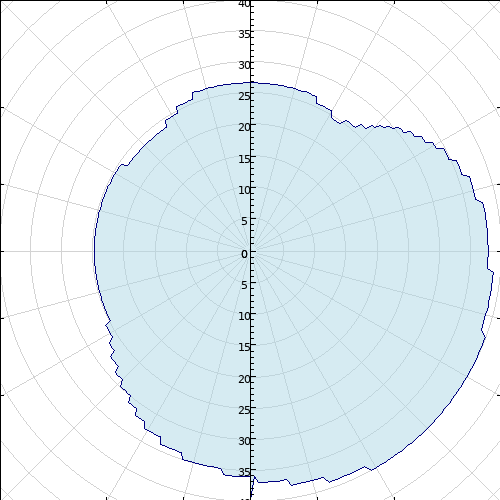

Antenna Type: Directional
Antenna System ID: 6060
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -13.44 | 0.7 |
90 | -2.24 | 9.0 |
180 | -4.17 | 5.7 |
270 | -15.72 | 0.4 |
| 5 | -13.33 | 0.7 |
95 | -1.99 | 9.5 |
185 | -4.76 | 5.0 |
275 | -15.53 | 0.4 |
| 10 | -13.24 | 0.7 |
100 | -1.71 | 10.1 |
190 | -5.24 | 4.5 |
280 | -15.22 | 0.5 |
| 15 | -13.22 | 0.7 |
105 | -1.37 | 10.9 |
195 | -5.69 | 4.0 |
285 | -15.10 | 0.5 |
| 20 | -13.45 | 0.7 |
110 | -0.99 | 11.9 |
200 | -6.24 | 3.6 |
290 | -15.38 | 0.4 |
| 25 | -14.17 | 0.6 |
115 | -0.66 | 12.9 |
205 | -6.92 | 3.0 |
295 | -15.83 | 0.4 |
| 30 | -14.93 | 0.5 |
120 | -0.36 | 13.8 |
210 | -7.79 | 2.5 |
300 | -15.80 | 0.4 |
| 35 | -15.10 | 0.5 |
125 | -0.14 | 14.5 |
215 | -8.84 | 2.0 |
305 | -16.03 | 0.4 |
| 40 | -14.11 | 0.6 |
130 | -0.01 | 15.0 |
220 | -10.05 | 1.5 |
310 | -16.31 | 0.4 |
| 45 | -12.25 | 0.9 |
135 | -0.04 | 14.8 |
225 | -11.19 | 1.1 |
315 | -16.55 | 0.3 |
| 50 | -9.94 | 1.5 |
140 | -0.18 | 14.4 |
230 | -12.28 | 0.9 |
320 | -16.59 | 0.3 |
| 55 | -8.01 | 2.4 |
145 | -0.43 | 13.6 |
235 | -13.40 | 0.7 |
325 | -16.33 | 0.3 |
| 60 | -6.37 | 3.5 |
150 | -0.82 | 12.4 |
240 | -14.47 | 0.5 |
330 | -15.44 | 0.4 |
| 65 | -5.06 | 4.7 |
155 | -1.28 | 11.2 |
245 | -15.08 | 0.5 |
335 | -14.49 | 0.5 |
| 70 | -4.06 | 5.9 |
160 | -1.81 | 9.9 |
250 | -15.28 | 0.4 |
340 | -13.96 | 0.6 |
| 75 | -3.27 | 7.1 |
165 | -2.38 | 8.7 |
255 | -15.38 | 0.4 |
345 | -13.66 | 0.6 |
| 80 | -2.81 | 7.9 |
170 | -2.96 | 7.6 |
260 | -15.53 | 0.4 |
350 | -13.65 | 0.6 |
| 85 | -2.50 | 8.4 |
175 | -3.56 | 6.6 |
265 | -15.72 | 0.4 |
355 | -13.56 | 0.7 |
|
| Limited to 1500 W and 182.4m towards 286A Toronto, ON (Az. = 348.2°) Limited to 850 W and 161.4m towards 286B Peterborough, ON (Az. = 27.1°) Limited to proposed parameters including antenna pattern towards 287C1 Kitchener, ON (Az. = 241°-333°) Limited to 44.5 kW and 102.6m towards 287B Hornell, NY (Az. 124.8°) |
| Limité à 1550 W et 182.4 mètres vers 286A Toronto, ON (Az. = 348.2°) Limité à 850 W et 161.4 mètres vers 286B Peterborough, ON (Az. = 27.1°) Limité aux paramètres proposés incluant le patron d'antenne vers 287C1 Kitchener, ON (Az.=241°-333°) Limité à 44.5 kW et 102.6 mètres vers 287B Hornell, NY (Az. = 124.8°) |
|
|
| Broadcasting Certificate effective date | 11/14/2017 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 09/01/2022 | | International coordination request sent | 06/09/2006 | | International coordination reply received | 07/07/2006 | | Application received | 02/04/2019 | | Letter of Authorization issued | 09/20/2006 | | On-air date | 05/19/2015 | | CRTC letter date | 04/05/2006 | | CRTC hearing date | 07/11/2006 |
|
