Call Sign	Community Name	Licensee Name

Industry Canada - Canada

CFTO-DT-21

Orillia ON

Bell Media Inc.
299 Queen Street West
Toronto
ON

Industry Canada File Number: 4908
Channel: 21
Station Class: R
Status: Operational
NAD83 Coordinates: 44 52' 4.08" N 79 35' 40.92" W
REC measured distance to USA: 152.6 km - 153.1
Site Elevation: 220 m
Effective HAAT: 173 m
Site Elevation: 220 m
Overall Antenna Height Above Ground: 174 m
Radiation Center Above Mean Sea Level: 384 m
Effective Radiated Power (ERP): 13.5 kW

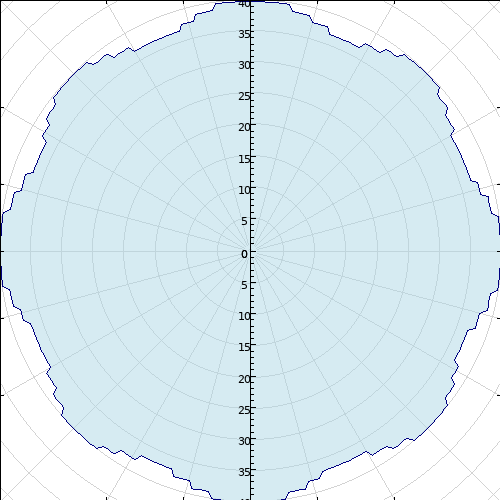

Antenna Type: Directional
Antenna System ID: 2531

Rad	dB	ERP	Rad	dB	ERP	Rad	dB	ERP	Rad	dB	ERP
0	0.00	13.5	90	0.00	13.5	180	0.00	13.5	270	0.00	13.5
5	0.00	13.5	95	0.00	13.5	185	0.00	13.5	275	0.00	13.5
10	-1.00	10.7	100	-1.00	10.7	190	-1.00	10.7	280	-1.00	10.7
15	-2.00	8.5	105	-2.00	8.5	195	-2.00	8.5	285	-2.00	8.5
20	-3.00	6.8	110	-3.00	6.8	200	-3.00	6.8	290	-3.00	6.8
25	-3.00	6.8	115	-3.00	6.8	205	-3.00	6.8	295	-3.00	6.8
30	-2.00	8.5	120	-2.00	8.5	210	-2.00	8.5	300	-2.00	8.5
35	-1.00	10.7	125	-1.00	10.7	215	-1.00	10.7	305	-1.00	10.7
40	0.00	13.5	130	0.00	13.5	220	0.00	13.5	310	0.00	13.5
45	0.00	13.5	135	0.00	13.5	225	0.00	13.5	315	0.00	13.5
50	-1.00	10.7	140	-1.00	10.7	230	-1.00	10.7	320	-1.00	10.7
55	-2.00	8.5	145	-2.00	8.5	235	-2.00	8.5	325	-2.00	8.5
60	-3.00	6.8	150	-3.00	6.8	240	-3.00	6.8	330	-3.00	6.8
65	-3.00	6.8	155	-3.00	6.8	245	-3.00	6.8	335	-3.00	6.8
70	-3.00	6.8	160	-3.00	6.8	250	-3.00	6.8	340	-3.00	6.8
75	-2.00	8.5	165	-2.00	8.5	255	-2.00	8.5	345	-2.00	8.5
80	-1.00	10.7	170	-1.00	10.7	260	-1.00	10.7	350	-1.00	10.7
85	0.00	13.5	175	0.00	13.5	265	0.00	13.5	355	0.00	13.5

For assistance with LPFM, FM and translators, contact REC!

APPLICATION HISTORY

Broadcasting Certificate effective date	09/06/2019
Broadcasting Certificate renewal date or LOA or OATA expiry date	08/31/2031
Application received	02/06/2018
Letter of Authorization issued	08/23/2018
On-air date	09/06/2019
CRTC letter date	03/12/2018
