Industry Canada File Number: 0
Channel: 28
Station Class: R
Status: Allotment
NAD83 Coordinates: 44 58' 14.16" N 79 46' 57.00" W
REC measured distance to USA: 169.5 km - 151.8
Site Elevation: 200 m
Effective HAAT: 308 m
Site Elevation: 200 m
Radiation Center Above Mean Sea Level: 510 m
Effective Radiated Power (ERP): 70.3 kW

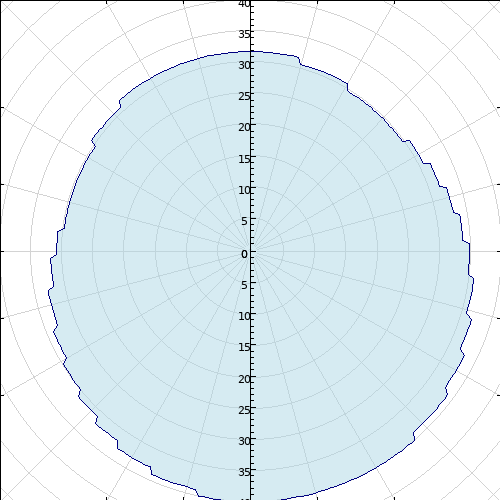

Antenna Type: Directional
Antenna System ID: 2402
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -8.00 | 11.1 |
90 | -5.00 | 22.2 |
180 | 0.00 | 70.3 |
270 | -9.00 | 8.9 |
| 5 | -8.00 | 11.1 |
95 | -5.00 | 22.2 |
185 | 0.00 | 70.3 |
275 | -9.00 | 8.9 |
| 10 | -8.00 | 11.1 |
100 | -4.00 | 28.0 |
190 | 0.00 | 70.3 |
280 | -10.00 | 7.0 |
| 15 | -9.00 | 8.9 |
105 | -4.00 | 28.0 |
195 | -1.00 | 55.8 |
285 | -10.00 | 7.0 |
| 20 | -9.00 | 8.9 |
110 | -3.00 | 35.2 |
200 | -1.00 | 55.8 |
290 | -10.00 | 7.0 |
| 25 | -9.00 | 8.9 |
115 | -3.00 | 35.2 |
205 | -2.00 | 44.4 |
295 | -10.00 | 7.0 |
| 30 | -9.00 | 8.9 |
120 | -2.00 | 44.4 |
210 | -2.00 | 44.4 |
300 | -10.00 | 7.0 |
| 35 | -10.00 | 7.0 |
125 | -2.00 | 44.4 |
215 | -3.00 | 35.2 |
305 | -9.00 | 8.9 |
| 40 | -10.00 | 7.0 |
130 | -1.00 | 55.8 |
220 | -3.00 | 35.2 |
310 | -9.00 | 8.9 |
| 45 | -10.00 | 7.0 |
135 | -1.00 | 55.8 |
225 | -4.00 | 28.0 |
315 | -9.00 | 8.9 |
| 50 | -10.00 | 7.0 |
140 | 0.00 | 70.3 |
230 | -4.00 | 28.0 |
320 | -8.00 | 11.1 |
| 55 | -9.00 | 8.9 |
145 | 0.00 | 70.3 |
235 | -5.00 | 22.2 |
325 | -8.00 | 11.1 |
| 60 | -9.00 | 8.9 |
150 | 0.00 | 70.3 |
240 | -6.00 | 17.7 |
330 | -8.00 | 11.1 |
| 65 | -8.00 | 11.1 |
155 | 0.00 | 70.3 |
245 | -6.00 | 17.7 |
335 | -8.00 | 11.1 |
| 70 | -8.00 | 11.1 |
160 | 0.00 | 70.3 |
250 | -7.00 | 14.0 |
340 | -8.00 | 11.1 |
| 75 | -7.00 | 14.0 |
165 | 0.00 | 70.3 |
255 | -7.00 | 14.0 |
345 | -8.00 | 11.1 |
| 80 | -6.00 | 17.7 |
170 | 0.00 | 70.3 |
260 | -8.00 | 11.1 |
350 | -8.00 | 11.1 |
| 85 | -6.00 | 17.7 |
175 | 0.00 | 70.3 |
265 | -8.00 | 11.1 |
355 | -8.00 | 11.1 |
|
|
|
