Industry Canada File Number: 0
Channel: 16
Station Class: R
Status: Allotment
NAD83 Coordinates: 44 26' 44.88" N 80 59' 58.92" W
REC measured distance to USA: 104.8 km - 259.7
Site Elevation: 274 m
Effective HAAT: 132 m
Site Elevation: 274 m
Radiation Center Above Mean Sea Level: 407 m
Effective Radiated Power (ERP): 152 kW

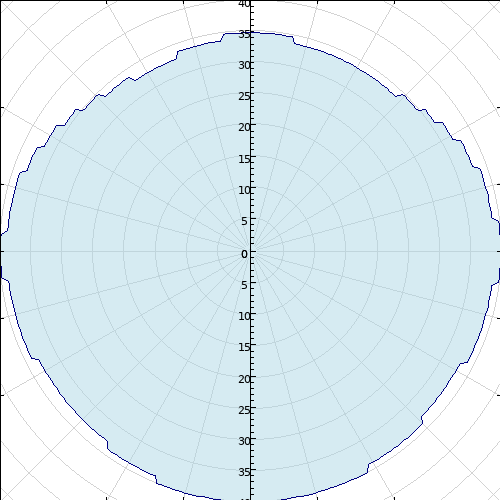

Antenna Type: Directional
Antenna System ID: 2415
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -5.00 | 48.1 |
90 | 0.00 | 152.0 |
180 | 0.00 | 152.0 |
270 | 0.00 | 152.0 |
| 5 | -5.00 | 48.1 |
95 | 0.00 | 152.0 |
185 | 0.00 | 152.0 |
275 | -1.00 | 120.7 |
| 10 | -5.00 | 48.1 |
100 | -1.00 | 120.7 |
190 | 0.00 | 152.0 |
280 | -1.00 | 120.7 |
| 15 | -6.00 | 38.2 |
105 | -1.00 | 120.7 |
195 | 0.00 | 152.0 |
285 | -1.00 | 120.7 |
| 20 | -6.00 | 38.2 |
110 | -1.00 | 120.7 |
200 | 0.00 | 152.0 |
290 | -2.00 | 95.9 |
| 25 | -6.00 | 38.2 |
115 | -1.00 | 120.7 |
205 | -1.00 | 120.7 |
295 | -2.00 | 95.9 |
| 30 | -6.00 | 38.2 |
120 | -2.00 | 95.9 |
210 | -1.00 | 120.7 |
300 | -3.00 | 76.2 |
| 35 | -6.00 | 38.2 |
125 | -2.00 | 95.9 |
215 | -1.00 | 120.7 |
305 | -4.00 | 60.5 |
| 40 | -6.00 | 38.2 |
130 | -2.00 | 95.9 |
220 | -2.00 | 95.9 |
310 | -5.00 | 48.1 |
| 45 | -5.00 | 48.1 |
135 | -1.00 | 120.7 |
225 | -2.00 | 95.9 |
315 | -5.00 | 48.1 |
| 50 | -5.00 | 48.1 |
140 | -1.00 | 120.7 |
230 | -2.00 | 95.9 |
320 | -6.00 | 38.2 |
| 55 | -4.00 | 60.5 |
145 | -1.00 | 120.7 |
235 | -2.00 | 95.9 |
325 | -6.00 | 38.2 |
| 60 | -3.00 | 76.2 |
150 | -1.00 | 120.7 |
240 | -2.00 | 95.9 |
330 | -7.00 | 30.3 |
| 65 | -2.00 | 95.9 |
155 | 0.00 | 152.0 |
245 | -1.00 | 120.7 |
335 | -7.00 | 30.3 |
| 70 | -1.00 | 120.7 |
160 | 0.00 | 152.0 |
250 | -1.00 | 120.7 |
340 | -6.00 | 38.2 |
| 75 | -1.00 | 120.7 |
165 | 0.00 | 152.0 |
255 | -1.00 | 120.7 |
345 | -6.00 | 38.2 |
| 80 | -1.00 | 120.7 |
170 | 0.00 | 152.0 |
260 | -1.00 | 120.7 |
350 | -6.00 | 38.2 |
| 85 | 0.00 | 152.0 |
175 | 0.00 | 152.0 |
265 | 0.00 | 152.0 |
355 | -5.00 | 48.1 |
|
|
|
