Industry Canada File Number: 6532
Channel/Class: 266B (101.1)
Broadcasting Mode: Stereo
Status: Under Construction
NAD83 Coordinates: 53 44' 45.96" N 78 51' 42.84" W
Site Elevation: 45 m
| Effective Radiated Power |
27.115 kW |
27.115 kW |
| Maximum Effective Radiated Power |
45 kW |
45 kW |
| Height Above Average Terrain |
117m |
117m |
| Radiation Center Above Ground Level |
95m |
95m |
| Radiation Center Above Mean Sea Level |
140m |
140m |
Overall Antenna Height Above Ground: 102 m

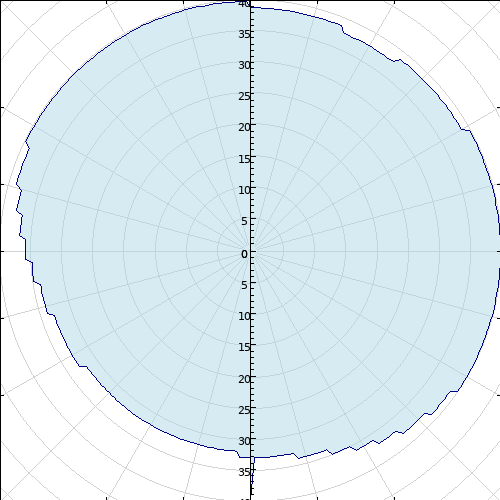

Antenna Type: Directional
Antenna System ID: 6769
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -1.00 | 35.7 |
90 | 0.00 | 45.0 |
180 | -7.00 | 9.0 |
270 | -4.00 | 17.9 |
| 5 | -1.00 | 35.7 |
95 | 0.00 | 45.0 |
185 | -8.00 | 7.1 |
275 | -3.00 | 22.6 |
| 10 | -1.00 | 35.7 |
100 | 0.00 | 45.0 |
190 | -8.00 | 7.1 |
280 | -2.00 | 28.4 |
| 15 | -1.00 | 35.7 |
105 | 0.00 | 45.0 |
195 | -8.00 | 7.1 |
285 | -2.00 | 28.4 |
| 20 | -1.00 | 35.7 |
110 | 0.00 | 45.0 |
200 | -8.00 | 7.1 |
290 | -1.00 | 35.7 |
| 25 | -2.00 | 28.4 |
115 | 0.00 | 45.0 |
205 | -8.00 | 7.1 |
295 | -1.00 | 35.7 |
| 30 | -2.00 | 28.4 |
120 | 0.00 | 45.0 |
210 | -8.00 | 7.1 |
300 | 0.00 | 45.0 |
| 35 | -2.00 | 28.4 |
125 | -1.00 | 35.7 |
215 | -8.00 | 7.1 |
305 | 0.00 | 45.0 |
| 40 | -1.00 | 35.7 |
130 | -1.00 | 35.7 |
220 | -8.00 | 7.1 |
310 | 0.00 | 45.0 |
| 45 | -1.00 | 35.7 |
135 | -2.00 | 28.4 |
225 | -8.00 | 7.1 |
315 | 0.00 | 45.0 |
| 50 | -1.00 | 35.7 |
140 | -2.00 | 28.4 |
230 | -8.00 | 7.1 |
320 | 0.00 | 45.0 |
| 55 | -1.00 | 35.7 |
145 | -3.00 | 22.6 |
235 | -8.00 | 7.1 |
325 | 0.00 | 45.0 |
| 60 | -1.00 | 35.7 |
150 | -4.00 | 17.9 |
240 | -7.00 | 9.0 |
330 | 0.00 | 45.0 |
| 65 | 0.00 | 45.0 |
155 | -5.00 | 14.2 |
245 | -7.00 | 9.0 |
335 | 0.00 | 45.0 |
| 70 | 0.00 | 45.0 |
160 | -6.00 | 11.3 |
250 | -7.00 | 9.0 |
340 | 0.00 | 45.0 |
| 75 | 0.00 | 45.0 |
165 | -6.00 | 11.3 |
255 | -6.00 | 11.3 |
345 | 0.00 | 45.0 |
| 80 | 0.00 | 45.0 |
170 | -7.00 | 9.0 |
260 | -6.00 | 11.3 |
350 | 0.00 | 45.0 |
| 85 | 0.00 | 45.0 |
175 | -7.00 | 9.0 |
265 | -5.00 | 14.2 |
355 | 0.00 | 45.0 |
|
|
| Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2026 | | Application received | 11/01/2023 | | Letter of Authorization issued | 10/01/1998 | | On-air date | 03/09/2000 | | CRTC letter date | 03/18/1998 | | CRTC hearing date | 10/01/1998 |
|
