Industry Canada File Number: 0
CRTC Decision Number: 140448
Channel/Class: 295B (106.9)
Broadcasting Mode: Stereo
Status: Authorized
NAD83 Coordinates: 49 56' 6.00" N 74 48' 2.16" W
Site Elevation: 401 m
| Effective Radiated Power |
26.378 kW |
0 kW |
| Maximum Effective Radiated Power |
48.445 kW |
0 kW |
| Height Above Average Terrain |
128.6m |
0m |
| Radiation Center Above Ground Level |
98.1m |
0m |
| Radiation Center Above Mean Sea Level |
499.1m |
0m |
Overall Antenna Height Above Ground: 109 m

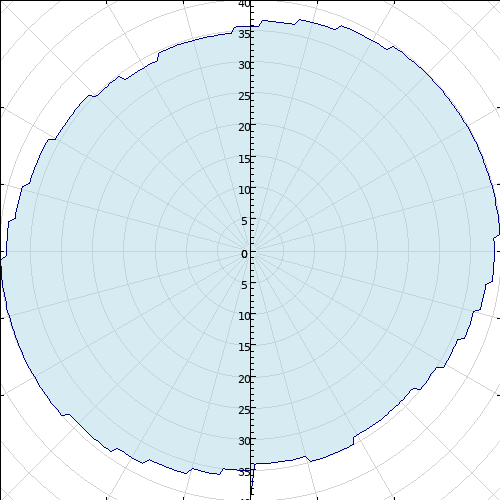

Antenna Type: Directional
Antenna System ID: 6080
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -4.37 | 17.7 |
90 | -1.27 | 36.2 |
180 | -5.96 | 12.3 |
270 | -1.16 | 37.1 |
| 5 | -3.76 | 20.4 |
95 | -1.79 | 32.1 |
185 | -5.31 | 14.3 |
275 | -1.72 | 32.6 |
| 10 | -3.21 | 23.2 |
100 | -2.29 | 28.6 |
190 | -4.70 | 16.4 |
280 | -2.40 | 27.9 |
| 15 | -2.68 | 26.1 |
105 | -3.02 | 24.2 |
195 | -4.06 | 19.0 |
285 | -2.88 | 25.0 |
| 20 | -2.15 | 29.5 |
110 | -3.68 | 20.7 |
200 | -3.64 | 20.9 |
290 | -3.32 | 22.6 |
| 25 | -1.72 | 32.6 |
115 | -4.21 | 18.4 |
205 | -3.22 | 23.1 |
295 | -3.67 | 20.8 |
| 30 | -1.29 | 36.0 |
120 | -4.77 | 16.2 |
210 | -2.59 | 26.7 |
300 | -4.04 | 19.1 |
| 35 | -0.96 | 38.8 |
125 | -5.40 | 14.0 |
215 | -1.96 | 30.9 |
305 | -4.37 | 17.7 |
| 40 | -0.57 | 42.5 |
130 | -6.02 | 12.1 |
220 | -1.61 | 33.4 |
310 | -4.64 | 16.7 |
| 45 | -0.30 | 45.2 |
135 | -6.42 | 11.1 |
225 | -1.22 | 36.6 |
315 | -5.04 | 15.2 |
| 50 | -0.21 | 46.2 |
140 | -6.86 | 10.0 |
230 | -0.93 | 39.1 |
320 | -5.50 | 13.6 |
| 55 | -0.16 | 46.7 |
145 | -6.77 | 10.2 |
235 | -0.74 | 40.9 |
325 | -6.16 | 11.7 |
| 60 | -0.20 | 46.3 |
150 | -6.17 | 11.7 |
240 | -0.40 | 44.2 |
330 | -6.34 | 11.3 |
| 65 | -0.09 | 47.5 |
155 | -5.79 | 12.8 |
245 | -0.18 | 46.4 |
335 | -5.94 | 12.3 |
| 70 | -0.12 | 47.1 |
160 | -5.68 | 13.1 |
250 | 0.00 | 48.4 |
340 | -5.85 | 12.6 |
| 75 | -0.22 | 46.0 |
165 | -6.08 | 12.0 |
255 | -0.10 | 47.3 |
345 | -5.93 | 12.4 |
| 80 | -0.58 | 42.4 |
170 | -6.53 | 10.8 |
260 | -0.30 | 45.3 |
350 | -5.79 | 12.8 |
| 85 | -0.90 | 39.4 |
175 | -6.62 | 10.6 |
265 | -0.71 | 41.2 |
355 | -5.05 | 15.1 |
|
|
| Broadcasting Certificate renewal date or LOA or OATA expiry date | 06/28/2021 | | Application received | 02/26/2019 | | Letter of Authorization issued | 07/02/2019 |
|
