Industry Canada - Canada
CKHD-FM
Assiniboia SK
Huber Radio Ltd.
PO BOX 141
BRIERCREST
SK
Industry Canada File Number: 20107
Channel/Class: 251C1 (98.1)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 49 23' 8.88" N 105 40' 19.20" W
Site Elevation: 877 m
  Horiz Vert
Effective Radiated Power 0 kW 20.063 kW
Maximum Effective Radiated Power 0 kW 29 kW
Height Above Average Terrain 0m 258m
Radiation Center Above Ground Level 0m 173m
Radiation Center Above Mean Sea Level 0m 1050m
Overall Antenna Height Above Ground: 181 m

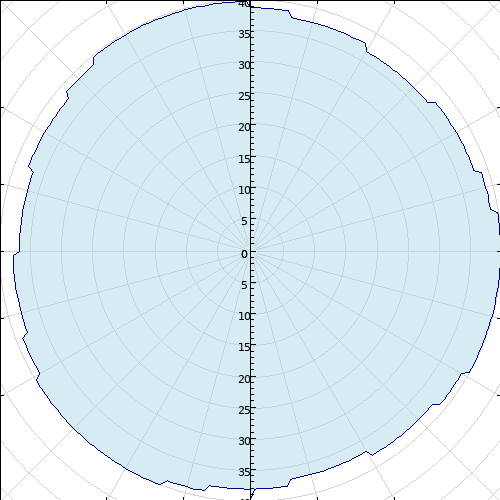

Antenna Type: Directional
Antenna System ID: 5770
Rad dB ERP Rad dB ERP Rad dB ERP Rad dB ERP
0-1.0023.0 900.0029.0 180-2.0018.3 270-3.0014.5
5-1.0023.0 950.0029.0 185-2.0018.3 275-3.0014.5
10-2.0018.3 1000.0029.0 190-2.0018.3 280-3.0014.5
15-2.0018.3 1050.0029.0 195-1.0023.0 285-3.0014.5
20-2.0018.3 1100.0029.0 200-1.0023.0 290-3.0014.5
25-2.0018.3 1150.0029.0 2050.0029.0 295-2.0018.3
30-3.0014.5 120-1.0023.0 2100.0029.0 300-2.0018.3
35-3.0014.5 125-1.0023.0 2150.0029.0 305-2.0018.3
40-3.0014.5 130-2.0018.3 2200.0029.0 310-2.0018.3
45-3.0014.5 135-2.0018.3 2250.0029.0 315-1.0023.0
50-3.0014.5 140-2.0018.3 2300.0029.0 320-1.0023.0
55-2.0018.3 145-2.0018.3 2350.0029.0 3250.0029.0
60-2.0018.3 150-3.0014.5 240-1.0023.0 3300.0029.0
65-2.0018.3 155-3.0014.5 245-1.0023.0 3350.0029.0
70-2.0018.3 160-3.0014.5 250-2.0018.3 3400.0029.0
75-1.0023.0 165-3.0014.5 255-2.0018.3 3450.0029.0
80-1.0023.0 170-3.0014.5 260-2.0018.3 3500.0029.0
850.0029.0 175-2.0018.3 265-2.0018.3 3550.0029.0
Please help support FCCdata and other REC efforts. Thank you.
APPLICATION HISTORY
Broadcasting Certificate effective date12/26/2023
Broadcasting Certificate renewal date or LOA or OATA expiry date08/31/2029
Application received12/21/2020
Letter of Authorization issued01/26/2021
On-air date03/07/2019
CRTC letter date08/15/2017
CRTC hearing date07/26/2018
