Industry Canada File Number: 9691
CRTC Decision Number: 160340
Channel/Class: 206B1 (89.1)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 43 0' 27.00" N 79 10' 40.08" W
Short Spacing Code: LI
Site Elevation: 182 m
| Effective Radiated Power |
0.77 kW |
0.77 kW |
| Maximum Effective Radiated Power |
4.25 kW |
4.25 kW |
| Height Above Average Terrain |
130m |
130m |
| Radiation Center Above Ground Level |
125m |
125m |
| Radiation Center Above Mean Sea Level |
307m |
307m |
Overall Antenna Height Above Ground: 152 m

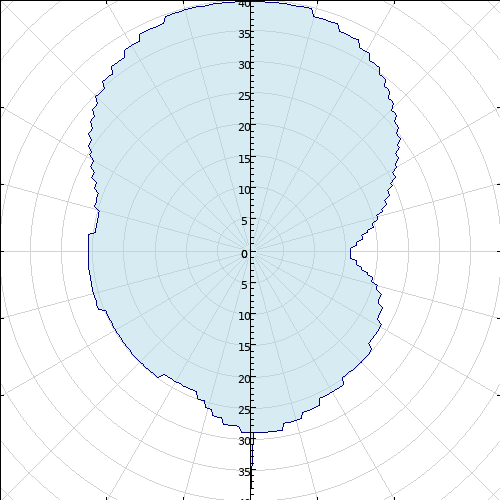

Antenna Type: Directional
Antenna System ID: 6703
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | 0.00 | 4.250 |
90 | -24.00 | 0.017 |
180 | -11.00 | 0.338 |
270 | -14.00 | 0.169 |
| 5 | 0.00 | 4.250 |
95 | -23.00 | 0.021 |
185 | -12.00 | 0.268 |
275 | -14.00 | 0.169 |
| 10 | 0.00 | 4.250 |
100 | -21.00 | 0.034 |
190 | -13.00 | 0.213 |
280 | -15.00 | 0.134 |
| 15 | -1.00 | 3.376 |
105 | -19.00 | 0.054 |
195 | -14.00 | 0.169 |
285 | -15.00 | 0.134 |
| 20 | -1.00 | 3.376 |
110 | -18.00 | 0.067 |
200 | -15.00 | 0.134 |
290 | -14.00 | 0.169 |
| 25 | -2.00 | 2.682 |
115 | -17.00 | 0.085 |
205 | -16.00 | 0.107 |
295 | -12.00 | 0.268 |
| 30 | -3.00 | 2.130 |
120 | -16.00 | 0.107 |
210 | -16.00 | 0.107 |
300 | -11.00 | 0.338 |
| 35 | -4.00 | 1.692 |
125 | -16.00 | 0.107 |
215 | -16.00 | 0.107 |
305 | -9.00 | 0.535 |
| 40 | -6.00 | 1.068 |
130 | -15.00 | 0.134 |
220 | -15.00 | 0.134 |
310 | -7.00 | 0.848 |
| 45 | -8.00 | 0.674 |
135 | -15.00 | 0.134 |
225 | -15.00 | 0.134 |
315 | -5.00 | 1.344 |
| 50 | -9.00 | 0.535 |
140 | -15.00 | 0.134 |
230 | -15.00 | 0.134 |
320 | -4.00 | 1.692 |
| 55 | -11.00 | 0.338 |
145 | -14.00 | 0.169 |
235 | -15.00 | 0.134 |
325 | -3.00 | 2.130 |
| 60 | -13.00 | 0.213 |
150 | -14.00 | 0.169 |
240 | -15.00 | 0.134 |
330 | -2.00 | 2.682 |
| 65 | -15.00 | 0.134 |
155 | -14.00 | 0.169 |
245 | -15.00 | 0.134 |
335 | -1.00 | 3.376 |
| 70 | -17.00 | 0.085 |
160 | -13.00 | 0.213 |
250 | -14.00 | 0.169 |
340 | 0.00 | 4.250 |
| 75 | -19.00 | 0.054 |
165 | -12.00 | 0.268 |
255 | -14.00 | 0.169 |
345 | 0.00 | 4.250 |
| 80 | -21.00 | 0.034 |
170 | -11.00 | 0.338 |
260 | -14.00 | 0.169 |
350 | 0.00 | 4.250 |
| 85 | -23.00 | 0.021 |
175 | -11.00 | 0.338 |
265 | -14.00 | 0.169 |
355 | 0.00 | 4.250 |
|
| Proposed parameters including antenna pattern (domestic) 2.8 kW ERP and 126.5 m HAAT or equivalent towards channel 205A in Lakewood, NY (Az.=187.1°). 480 W ERP and 126.3 m HAAT or equivalent towards channel 205A in Fredonia, NY (Az.=159°). Proposed parameters towards channel 206B1 in Brockport, NY (Az.=52° to 105°). 350 W ERP and 126.6 m HAAT or equivalent towards channel 206B1 in Friendship, NY (Az.=140°). 12 kW ERP and 129 m HAAT or equivalent towards channel 207A in Geneseo, NY (Az.=101.5°). 4250 W ERP and 127.2 m HAAT or equivalent towards channel 206B1 in Tidioute, PA (Az.=192.5°). Proposed parameters towards channel 207B1 in Silver Creek, NY (Az.=77° to 194°). |
| Paramètres proposés incluant le patron d'antenne (domestic) 2.8 kW et 126.5 m vers 205A à Lakewood, NY (Az.=187.1°). 480 W et 126.3 m vers 205A à Fredonia, NY (Az.=159°). Paramètres proposés vers 206B1 à Brockport, NY (Az.=52° à 105°). 350 W et 126.6 m vers 206B1 à Friendship, NY (Az.=140°). 12 kW et 129 m vers 207A à Geneseo, NY (Az.=101.5°). 4250 W et 127.2 m vers 206B1 à Tidioute, PA (Az.=192.5°). Paramètres proposés vers 207B1 à Silver Creek, NY (Az.=77° à 194°).
|
|
|
| Broadcasting Certificate effective date | 08/19/2024 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2031 | | International coordination request sent | 08/25/2016 | | International coordination reply received | 09/19/2016 | | Application received | 08/19/2024 | | Letter of Authorization issued | 02/22/2017 | | On-air date | 06/28/2017 | | CRTC letter date | 03/15/2016 | | CRTC hearing date | 08/23/2016 |
|
