Industry Canada File Number: 6886
CRTC Decision Number: 240021
Channel/Class: 263C1 (100.5)
Broadcasting Mode: Stereo
Status: Authorized
NAD83 Coordinates: 49 43' 50.16" N 97 11' 57.84" W
Short Spacing Code: LI
Site Elevation: 235 m
| Effective Radiated Power |
60.814 kW |
60.814 kW |
| Maximum Effective Radiated Power |
100 kW |
100 kW |
| Height Above Average Terrain |
184m |
184m |
| Radiation Center Above Ground Level |
180m |
180m |
| Radiation Center Above Mean Sea Level |
415m |
415m |
Overall Antenna Height Above Ground: 190 m
Antenna Type: Directional
Antenna System ID: 6113

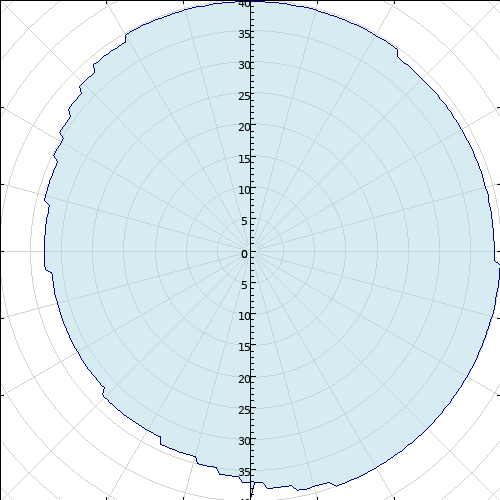

| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | 0.00 | 100.0 |
90 | -1.00 | 79.4 |
180 | -3.00 | 50.1 |
270 | -7.00 | 20.0 |
| 5 | 0.00 | 100.0 |
95 | 0.00 | 100.0 |
185 | -4.00 | 39.8 |
275 | -7.00 | 20.0 |
| 10 | 0.00 | 100.0 |
100 | 0.00 | 100.0 |
190 | -5.00 | 31.6 |
280 | -7.00 | 20.0 |
| 15 | 0.00 | 100.0 |
105 | 0.00 | 100.0 |
195 | -6.00 | 25.1 |
285 | -6.00 | 25.1 |
| 20 | 0.00 | 100.0 |
110 | 0.00 | 100.0 |
200 | -6.00 | 25.1 |
290 | -6.00 | 25.1 |
| 25 | 0.00 | 100.0 |
115 | 0.00 | 100.0 |
205 | -6.00 | 25.1 |
295 | -6.00 | 25.1 |
| 30 | 0.00 | 100.0 |
120 | 0.00 | 100.0 |
210 | -7.00 | 20.0 |
300 | -5.00 | 31.6 |
| 35 | 0.00 | 100.0 |
125 | 0.00 | 100.0 |
215 | -7.00 | 20.0 |
305 | -4.00 | 39.8 |
| 40 | -1.00 | 79.4 |
130 | 0.00 | 100.0 |
220 | -7.00 | 20.0 |
310 | -3.00 | 50.1 |
| 45 | -1.00 | 79.4 |
135 | 0.00 | 100.0 |
225 | -7.00 | 20.0 |
315 | -2.00 | 63.1 |
| 50 | -1.00 | 79.4 |
140 | 0.00 | 100.0 |
230 | -8.00 | 15.8 |
320 | -1.00 | 79.4 |
| 55 | -1.00 | 79.4 |
145 | 0.00 | 100.0 |
235 | -8.00 | 15.8 |
325 | -1.00 | 79.4 |
| 60 | -1.00 | 79.4 |
150 | 0.00 | 100.0 |
240 | -8.00 | 15.8 |
330 | 0.00 | 100.0 |
| 65 | -1.00 | 79.4 |
155 | 0.00 | 100.0 |
245 | -8.00 | 15.8 |
335 | 0.00 | 100.0 |
| 70 | -1.00 | 79.4 |
160 | 0.00 | 100.0 |
250 | -8.00 | 15.8 |
340 | 0.00 | 100.0 |
| 75 | -1.00 | 79.4 |
165 | -1.00 | 79.4 |
255 | -8.00 | 15.8 |
345 | 0.00 | 100.0 |
| 80 | -1.00 | 79.4 |
170 | -2.00 | 63.1 |
260 | -8.00 | 15.8 |
350 | 0.00 | 100.0 |
| 85 | -1.00 | 79.4 |
175 | -2.00 | 63.1 |
265 | -7.00 | 20.0 |
355 | 0.00 | 100.0 |
|
| limited to 85 kW and 284 m towards 262C1 in Thief River Falls, MN (Az.=167.3°) |
| limité à 85 kW et 284 m vers 262C1 à Thief River Falls, MN (Az.=167.3°)
|
|
|
| Broadcasting Certificate renewal date or LOA or OATA expiry date | 03/09/2025 | | International coordination request sent | 08/25/2014 | | International coordination reply received | 09/05/2014 | | Application received | 02/08/2022 | | Letter of Authorization issued | 10/27/2022 | | On-air date | 06/30/2015 | | CRTC letter date | 03/18/2024 | | CRTC hearing date | 05/09/2022 |
|
