Industry Canada File Number: 2525
CRTC Decision Number: 100528
Channel/Class: 268B1 (101.5)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 45 33' 33.84" N 73 33' 6.84" W
Short Spacing Code: * #LI
Site Elevation: 30 m
| Effective Radiated Power |
0 kW |
0.872 kW |
| Maximum Effective Radiated Power |
0 kW |
2.8 kW |
| Height Above Average Terrain |
0m |
192m |
| Radiation Center Above Ground Level |
0m |
190m |
| Radiation Center Above Mean Sea Level |
0m |
220m |
Overall Antenna Height Above Ground: 195 m

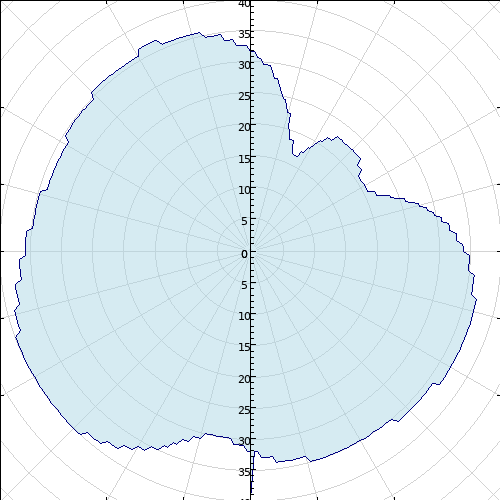

Antenna Type: Directional
Antenna System ID: 3625
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -8.00 | 0.444 |
90 | -6.00 | 0.703 |
180 | -8.00 | 0.444 |
270 | -4.00 | 1.115 |
| 5 | -10.00 | 0.280 |
95 | -5.00 | 0.885 |
185 | -9.00 | 0.352 |
275 | -4.00 | 1.115 |
| 10 | -13.00 | 0.140 |
100 | -4.00 | 1.115 |
190 | -10.00 | 0.280 |
280 | -5.00 | 0.885 |
| 15 | -17.00 | 0.056 |
105 | -3.00 | 1.403 |
195 | -9.00 | 0.352 |
285 | -5.00 | 0.885 |
| 20 | -21.00 | 0.022 |
110 | -3.00 | 1.403 |
200 | -8.00 | 0.444 |
290 | -6.00 | 0.703 |
| 25 | -23.00 | 0.014 |
115 | -3.00 | 1.403 |
205 | -5.00 | 0.885 |
295 | -6.00 | 0.703 |
| 30 | -21.00 | 0.022 |
120 | -3.00 | 1.403 |
210 | -4.00 | 1.115 |
300 | -6.00 | 0.703 |
| 35 | -18.00 | 0.044 |
125 | -3.00 | 1.403 |
215 | -2.00 | 1.767 |
305 | -5.00 | 0.885 |
| 40 | -17.00 | 0.056 |
130 | -4.00 | 1.115 |
220 | -1.00 | 2.224 |
310 | -5.00 | 0.885 |
| 45 | -17.00 | 0.056 |
135 | -4.00 | 1.115 |
225 | 0.00 | 2.800 |
315 | -4.00 | 1.115 |
| 50 | -17.00 | 0.056 |
140 | -5.00 | 0.885 |
230 | 0.00 | 2.800 |
320 | -4.00 | 1.115 |
| 55 | -19.00 | 0.035 |
145 | -5.00 | 0.885 |
235 | 0.00 | 2.800 |
325 | -4.00 | 1.115 |
| 60 | -19.00 | 0.035 |
150 | -5.00 | 0.885 |
240 | 0.00 | 2.800 |
330 | -4.00 | 1.115 |
| 65 | -18.00 | 0.044 |
155 | -5.00 | 0.885 |
245 | 0.00 | 2.800 |
335 | -3.00 | 1.403 |
| 70 | -15.00 | 0.089 |
160 | -5.00 | 0.885 |
250 | 0.00 | 2.800 |
340 | -4.00 | 1.115 |
| 75 | -12.00 | 0.177 |
165 | -6.00 | 0.703 |
255 | -1.00 | 2.224 |
345 | -4.00 | 1.115 |
| 80 | -9.00 | 0.352 |
170 | -6.00 | 0.703 |
260 | -2.00 | 1.767 |
350 | -5.00 | 0.885 |
| 85 | -7.00 | 0.559 |
175 | -7.00 | 0.559 |
265 | -3.00 | 1.403 |
355 | -6.00 | 0.703 |
|
| Limited to: 1.1kW&187.9m towards 267B Mont-Tremblant, QC(Az.=313.8°) - to the proposed parameters towards 269A Sorel, QC along azimuths 0°-64° - to the proposed parameters towards 270A1 Chateauguay, QC along azimuths 167°- 251° -to 4.9kW&203.7m towards 270A1 Candiac, QC (Az.=171.6°) -to 7kW&204.6m towards 267B1 Essex, NY (Az.=175.8°) -to 2.5kW&199.8m towards 269B Stowe, VT (Az.=153°) -to 2.3kW&167.9m towards 268B Canton, NY (Az.=222.3°) |
| Limité à: 1.1kW&187.9m vers 267B Mont-Tremblant, QC (Az.=313.8°) -aux paramètres proposés vers 269A Sorel, QC le long des azimuts de 0° à 64° -aux paramètres proposés vers 270A1 Châteauguay, QC le long des azimuts de 167° à 251° -à 4.9kW&203.7m vers 270A1 Candiac, QC (Az.=171.6°) -à 7kW&204.6m vers 267B1 Essex, NY (Az.=175.8°) -à 2.5kW&199.8m vers 269B Stowe, VT (Az.=153°) -à 2.3kW&167.9m vers 268B Canton, NY (Az.=222.3°)
|
|
|
| Broadcasting Certificate effective date | 06/23/2011 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2025 | | International coordination request sent | 06/28/2010 | | International coordination reply received | 08/06/2010 | | Application received | 12/14/2009 | | Letter of Authorization issued | 08/30/2010 | | On-air date | 06/11/2011 | | CRTC letter date | 04/21/2010 | | CRTC hearing date | 07/29/2010 |
|
