Industry Canada File Number: 9001
CRTC Decision Number: 190104
Channel/Class: 269B1 (101.7)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 45 26' 48.12" N 75 37' 27.12" W
Short Spacing Code: LI
Site Elevation: 101 m
| Effective Radiated Power |
4.701 kW |
4.701 kW |
| Maximum Effective Radiated Power |
21 kW |
21 kW |
| Height Above Average Terrain |
98m |
98m |
| Radiation Center Above Ground Level |
81m |
81m |
| Radiation Center Above Mean Sea Level |
182m |
182m |
Overall Antenna Height Above Ground: 83 m

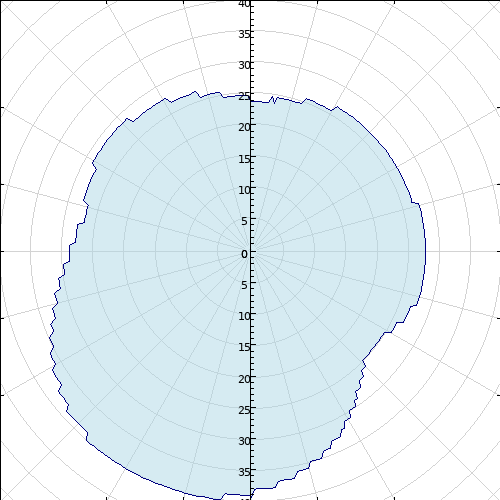

Antenna Type: Directional
Antenna System ID: 5052
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -16.00 | 0.5 |
90 | -12.00 | 1.3 |
180 | -1.00 | 16.7 |
270 | -11.00 | 1.7 |
| 5 | -16.00 | 0.5 |
95 | -12.00 | 1.3 |
185 | -1.00 | 16.7 |
275 | -12.00 | 1.3 |
| 10 | -15.00 | 0.7 |
100 | -12.00 | 1.3 |
190 | 0.00 | 21.0 |
280 | -13.00 | 1.1 |
| 15 | -15.00 | 0.7 |
105 | -12.00 | 1.3 |
195 | 0.00 | 21.0 |
285 | -13.00 | 1.1 |
| 20 | -14.00 | 0.8 |
110 | -13.00 | 1.1 |
200 | 0.00 | 21.0 |
290 | -12.00 | 1.3 |
| 25 | -14.00 | 0.8 |
115 | -13.00 | 1.1 |
205 | 0.00 | 21.0 |
295 | -12.00 | 1.3 |
| 30 | -14.00 | 0.8 |
120 | -14.00 | 0.8 |
210 | 0.00 | 21.0 |
300 | -11.00 | 1.7 |
| 35 | -13.00 | 1.1 |
125 | -15.00 | 0.7 |
215 | 0.00 | 21.0 |
305 | -11.00 | 1.7 |
| 40 | -13.00 | 1.1 |
130 | -15.00 | 0.7 |
220 | 0.00 | 21.0 |
310 | -11.00 | 1.7 |
| 45 | -13.00 | 1.1 |
135 | -14.00 | 0.8 |
225 | -1.00 | 16.7 |
315 | -11.00 | 1.7 |
| 50 | -13.00 | 1.1 |
140 | -13.00 | 1.1 |
230 | -2.00 | 13.3 |
320 | -12.00 | 1.3 |
| 55 | -13.00 | 1.1 |
145 | -11.00 | 1.7 |
235 | -3.00 | 10.5 |
325 | -12.00 | 1.3 |
| 60 | -13.00 | 1.1 |
150 | -9.00 | 2.6 |
240 | -4.00 | 8.4 |
330 | -12.00 | 1.3 |
| 65 | -13.00 | 1.1 |
155 | -7.00 | 4.2 |
245 | -5.00 | 6.6 |
335 | -13.00 | 1.1 |
| 70 | -13.00 | 1.1 |
160 | -6.00 | 5.3 |
250 | -6.00 | 5.3 |
340 | -13.00 | 1.1 |
| 75 | -12.00 | 1.3 |
165 | -4.00 | 8.4 |
255 | -8.00 | 3.3 |
345 | -14.00 | 0.8 |
| 80 | -12.00 | 1.3 |
170 | -3.00 | 10.5 |
260 | -9.00 | 2.6 |
350 | -15.00 | 0.7 |
| 85 | -12.00 | 1.3 |
175 | -2.00 | 13.3 |
265 | -10.00 | 2.1 |
355 | -15.00 | 0.7 |
|
| 1.9 kW ERP and 114 m HAAT or equivalent towards channel 270A(L) in Cornwall, ON (Az.=121.8°). Proposed parameters including antenna pattern towards channel 270B1(L) in Fort Coulonge, QC along the azimuths from 257.5° to 333.5°. 15 kW ERP and 109 m HAAT or equivalent towards channel 268B(L) in Canton, NY (Az.=144.3°). 22 kW ERP and 92 m HAAT or equivalent towards channel 269B in Pulaski, NY (Az.=187.8°). |
| 1.9 kW et 114 m ou l'équivalent vers le canal 270A(L) à Cornwall, ON (Az.=121.8°). paramètres proposés vers le canal 270B1(L) à Fort Coulonge, QC le long des azimuts de 257.5° à 333.5°. 15 kW et 109 m ou l'équivalent vers le canal 268B(L) à Canton, NY (Az.=144.3°). 22 kW et 92 m ou l'équivalent vers le canal 269B à Pulaski, NY (Az.=187.8°).
|
|
|
| Broadcasting Certificate effective date | 01/15/2020 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2027 | | International coordination request sent | 04/17/2019 | | International coordination reply received | 04/23/2019 | | Application received | 12/20/2018 | | Letter of Authorization issued | 04/24/2019 | | On-air date | 10/16/2020 | | CRTC letter date | 01/09/2019 | | CRTC hearing date | 04/08/2019 |
|
