Industry Canada File Number: 20104
CRTC Decision Number: 240009
Channel/Class: 276B1 (103.1)
Broadcasting Mode: Stereo
Status: Authorized
NAD83 Coordinates: 52 4' 45.12" N 106 30' 50.40" W
Site Elevation: 518 m
| Effective Radiated Power |
8.752 kW |
8.752 kW |
| Maximum Effective Radiated Power |
14 kW |
14 kW |
| Height Above Average Terrain |
102m |
102m |
| Radiation Center Above Ground Level |
101m |
101m |
| Radiation Center Above Mean Sea Level |
619m |
619m |
Overall Antenna Height Above Ground: 121 m

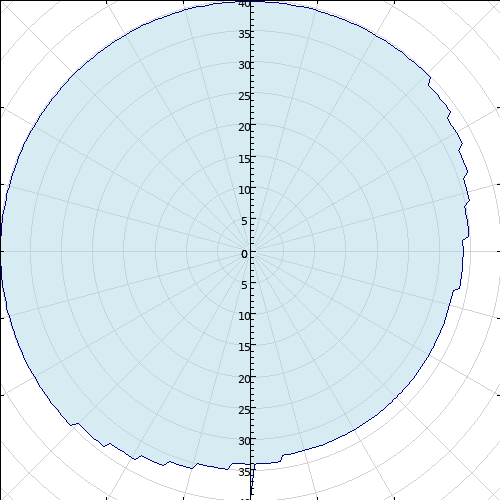

Antenna Type: Directional
Antenna System ID: 6458
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | 0.00 | 14.0 |
90 | -6.00 | 3.5 |
180 | -6.00 | 3.5 |
270 | 0.00 | 14.0 |
| 5 | 0.00 | 14.0 |
95 | -6.00 | 3.5 |
185 | -6.00 | 3.5 |
275 | 0.00 | 14.0 |
| 10 | 0.00 | 14.0 |
100 | -6.00 | 3.5 |
190 | -5.00 | 4.4 |
280 | 0.00 | 14.0 |
| 15 | 0.00 | 14.0 |
105 | -7.00 | 2.8 |
195 | -4.00 | 5.6 |
285 | 0.00 | 14.0 |
| 20 | 0.00 | 14.0 |
110 | -7.00 | 2.8 |
200 | -4.00 | 5.6 |
290 | 0.00 | 14.0 |
| 25 | 0.00 | 14.0 |
115 | -7.00 | 2.8 |
205 | -3.00 | 7.0 |
295 | 0.00 | 14.0 |
| 30 | 0.00 | 14.0 |
120 | -7.00 | 2.8 |
210 | -2.00 | 8.8 |
300 | 0.00 | 14.0 |
| 35 | 0.00 | 14.0 |
125 | -7.00 | 2.8 |
215 | -2.00 | 8.8 |
305 | 0.00 | 14.0 |
| 40 | 0.00 | 14.0 |
130 | -7.00 | 2.8 |
220 | -1.00 | 11.1 |
310 | 0.00 | 14.0 |
| 45 | 0.00 | 14.0 |
135 | -7.00 | 2.8 |
225 | -1.00 | 11.1 |
315 | 0.00 | 14.0 |
| 50 | -1.00 | 11.1 |
140 | -7.00 | 2.8 |
230 | 0.00 | 14.0 |
320 | 0.00 | 14.0 |
| 55 | -1.00 | 11.1 |
145 | -7.00 | 2.8 |
235 | 0.00 | 14.0 |
325 | 0.00 | 14.0 |
| 60 | -2.00 | 8.8 |
150 | -7.00 | 2.8 |
240 | 0.00 | 14.0 |
330 | 0.00 | 14.0 |
| 65 | -3.00 | 7.0 |
155 | -7.00 | 2.8 |
245 | 0.00 | 14.0 |
335 | 0.00 | 14.0 |
| 70 | -3.00 | 7.0 |
160 | -7.00 | 2.8 |
250 | 0.00 | 14.0 |
340 | 0.00 | 14.0 |
| 75 | -4.00 | 5.6 |
165 | -7.00 | 2.8 |
255 | 0.00 | 14.0 |
345 | 0.00 | 14.0 |
| 80 | -5.00 | 4.4 |
170 | -7.00 | 2.8 |
260 | 0.00 | 14.0 |
350 | 0.00 | 14.0 |
| 85 | -5.00 | 4.4 |
175 | -6.00 | 3.5 |
265 | 0.00 | 14.0 |
355 | 0.00 | 14.0 |
|
|
| Broadcasting Certificate renewal date or LOA or OATA expiry date | 02/04/2025 | | Application received | 05/23/2023 | | Letter of Authorization issued | 03/15/2024 | | On-air date | 05/06/2024 | | CRTC letter date | 06/12/2023 | | CRTC hearing date | 01/12/2024 |
|
