Industry Canada - Canada

CJKS-FM

Ohsweken ON

Arrow Radio
3326 Sixth Line
Ohsweken
ON

Industry Canada File Number: 9793
CRTC Decision Number: 140583
Channel/Class: 228A1 (93.5)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 43 4' 12.00" N 80 1' 8.04" W
Short Spacing Code: * #LI
Site Elevation: 210 m

	Horiz	Vert
Effective Radiated Power	0.042 kW	0.042 kW
Maximum Effective Radiated Power	0.075 kW	0.075 kW
Height Above Average Terrain	80m	80m
Radiation Center Above Ground Level	80m	80m
Radiation Center Above Mean Sea Level	290m	290m

Overall Antenna Height Above Ground: 91 m

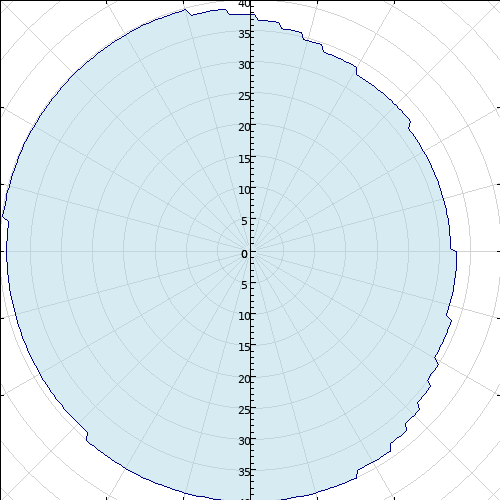

Antenna Type: Directional
Antenna System ID: 3439

Rad	dB	ERP	Rad	dB	ERP	Rad	dB	ERP	Rad	dB	ERP
0	-2.00	0.047	90	-7.00	0.015	180	0.00	0.075	270	-1.00	0.060
5	-3.00	0.038	95	-7.00	0.015	185	0.00	0.075	275	-1.00	0.060
10	-4.00	0.030	100	-7.00	0.015	190	0.00	0.075	280	0.00	0.075
15	-5.00	0.024	105	-7.00	0.015	195	0.00	0.075	285	0.00	0.075
20	-6.00	0.019	110	-6.00	0.019	200	0.00	0.075	290	0.00	0.075
25	-6.00	0.019	115	-6.00	0.019	205	0.00	0.075	295	0.00	0.075
30	-6.00	0.019	120	-6.00	0.019	210	0.00	0.075	300	0.00	0.075
35	-7.00	0.015	125	-5.00	0.024	215	0.00	0.075	305	0.00	0.075
40	-7.00	0.015	130	-4.00	0.030	220	0.00	0.075	310	0.00	0.075
45	-7.00	0.015	135	-3.00	0.038	225	-1.00	0.060	315	0.00	0.075
50	-7.00	0.015	140	-2.00	0.047	230	-1.00	0.060	320	0.00	0.075
55	-8.00	0.012	145	-1.00	0.060	235	-1.00	0.060	325	0.00	0.075
60	-8.00	0.012	150	-1.00	0.060	240	-1.00	0.060	330	0.00	0.075
65	-8.00	0.012	155	0.00	0.075	245	-1.00	0.060	335	0.00	0.075
70	-8.00	0.012	160	0.00	0.075	250	-1.00	0.060	340	0.00	0.075
75	-8.00	0.012	165	0.00	0.075	255	-1.00	0.060	345	0.00	0.075
80	-8.00	0.012	170	0.00	0.075	260	-1.00	0.060	350	-1.00	0.060
85	-8.00	0.012	175	0.00	0.075	265	-1.00	0.060	355	-2.00	0.047

LIMITS

limited to proposed parameters towards 227A1*# in Hamilton, ON (Az.=331°-88°) limited to proposed parameters towards 228C1*# in London, ON (Az.=211°-316°) limited to 175 W and 73.4 m towards 228B*#(L) in Toronto, ON (Az.=38.5°)

limité aux paramètres proposés vers 227A1*# à Hamilton, ON (Az.=331°-88°) limité aux paramètres proposés vers 228C1*# à London, ON (Az.=211°-316°) limité à 175 W et 73.4 m vers 228B*#(L) à Toronto, ON (Az.=38.5°)

For assistance with LPFM, FM and translators, contact REC!

APPLICATION HISTORY

Broadcasting Certificate effective date	02/02/2016
Broadcasting Certificate renewal date or LOA or OATA expiry date	08/31/2030
International coordination request sent	05/20/2014
International coordination reply received	06/12/2014
Application received	07/08/2013
Letter of Authorization issued	11/14/2014
On-air date	01/13/2016
CRTC letter date	11/25/2013
CRTC hearing date	11/10/2014
