Industry Canada File Number: 6511
CRTC Decision Number: 10284
Channel/Class: 270A (101.9)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 45 3' 29.88" N 74 44' 44.16" W
Short Spacing Code: LI
Site Elevation: 63 m
| Effective Radiated Power |
1.42 kW |
1.42 kW |
| Maximum Effective Radiated Power |
3.2 kW |
2.48 kW |
| Height Above Average Terrain |
88m |
88m |
| Radiation Center Above Ground Level |
93m |
93m |
| Radiation Center Above Mean Sea Level |
156m |
156m |
Overall Antenna Height Above Ground: 107 m

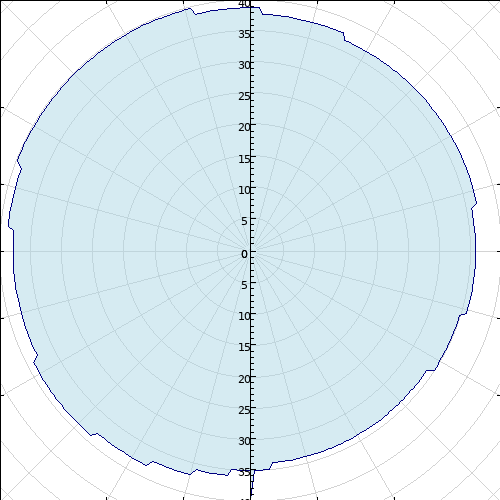

Antenna Type: Directional
Antenna System ID: 4769
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -1.00 | 2.542 |
90 | -4.00 | 1.274 |
180 | -5.00 | 1.012 |
270 | -2.00 | 2.019 |
| 5 | -2.00 | 2.019 |
95 | -4.00 | 1.274 |
185 | -5.00 | 1.012 |
275 | -2.00 | 2.019 |
| 10 | -2.00 | 2.019 |
100 | -4.00 | 1.274 |
190 | -4.00 | 1.274 |
280 | -1.00 | 2.542 |
| 15 | -2.00 | 2.019 |
105 | -4.00 | 1.274 |
195 | -3.00 | 1.604 |
285 | -1.00 | 2.542 |
| 20 | -2.00 | 2.019 |
110 | -5.00 | 1.012 |
200 | -3.00 | 1.604 |
290 | -1.00 | 2.542 |
| 25 | -3.00 | 1.604 |
115 | -5.00 | 1.012 |
205 | -3.00 | 1.604 |
295 | 0.00 | 3.200 |
| 30 | -3.00 | 1.604 |
120 | -5.00 | 1.012 |
210 | -2.00 | 2.019 |
300 | 0.00 | 3.200 |
| 35 | -3.00 | 1.604 |
125 | -6.00 | 0.804 |
215 | -2.00 | 2.019 |
305 | 0.00 | 3.200 |
| 40 | -3.00 | 1.604 |
130 | -6.00 | 0.804 |
220 | -2.00 | 2.019 |
310 | 0.00 | 3.200 |
| 45 | -3.00 | 1.604 |
135 | -6.00 | 0.804 |
225 | -1.00 | 2.542 |
315 | 0.00 | 3.200 |
| 50 | -3.00 | 1.604 |
140 | -6.00 | 0.804 |
230 | -1.00 | 2.542 |
320 | 0.00 | 3.200 |
| 55 | -3.00 | 1.604 |
145 | -6.00 | 0.804 |
235 | -1.00 | 2.542 |
325 | 0.00 | 3.200 |
| 60 | -3.00 | 1.604 |
150 | -6.00 | 0.804 |
240 | -1.00 | 2.542 |
330 | 0.00 | 3.200 |
| 65 | -3.00 | 1.604 |
155 | -6.00 | 0.804 |
245 | -2.00 | 2.019 |
335 | 0.00 | 3.200 |
| 70 | -3.00 | 1.604 |
160 | -6.00 | 0.804 |
250 | -2.00 | 2.019 |
340 | 0.00 | 3.200 |
| 75 | -3.00 | 1.604 |
165 | -6.00 | 0.804 |
255 | -2.00 | 2.019 |
345 | 0.00 | 3.200 |
| 80 | -4.00 | 1.274 |
170 | -6.00 | 0.804 |
260 | -2.00 | 2.019 |
350 | -1.00 | 2.542 |
| 85 | -4.00 | 1.274 |
175 | -5.00 | 1.012 |
265 | -2.00 | 2.019 |
355 | -1.00 | 2.542 |
|
| Limited to 3 kW and 100 metres or equivalent. |
| Limité à 3 kW et 100 mètres ou équivalent.
|
|
|
| Broadcasting Certificate effective date | 09/06/2018 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2026 | | Application received | 08/23/2018 | | Letter of Authorization issued | 01/11/2002 | | On-air date | 12/14/2005 | | CRTC letter date | 02/13/2001 | | CRTC hearing date | 05/22/2001 |
|
