Industry Canada File Number: 1623
CRTC Decision Number: 169999
Channel/Class: 228C1 (93.5)
Broadcasting Mode: Mono
Status: Operational
NAD83 Coordinates: 42 57' 15.84" N 81 21' 16.92" W
Site Elevation: 291 m
| Effective Radiated Power |
64.565 kW |
64.548 kW |
| Maximum Effective Radiated Power |
100 kW |
89.1 kW |
| Height Above Average Terrain |
267m |
267m |
| Radiation Center Above Ground Level |
233m |
233m |
| Radiation Center Above Mean Sea Level |
524m |
524m |
Overall Antenna Height Above Ground: 299 m

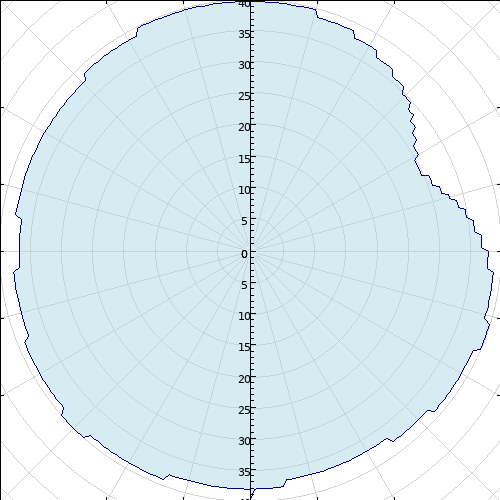

Antenna Type: Directional
Antenna System ID: 4837
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | 0.00 | 100.0 |
90 | -2.00 | 63.1 |
180 | -2.00 | 63.1 |
270 | -3.00 | 50.1 |
| 5 | 0.00 | 100.0 |
95 | -1.00 | 79.4 |
185 | -2.00 | 63.1 |
275 | -3.00 | 50.1 |
| 10 | 0.00 | 100.0 |
100 | -1.00 | 79.4 |
190 | -2.00 | 63.1 |
280 | -2.00 | 63.1 |
| 15 | 0.00 | 100.0 |
105 | -1.00 | 79.4 |
195 | -2.00 | 63.1 |
285 | -2.00 | 63.1 |
| 20 | -1.00 | 79.4 |
110 | 0.00 | 100.0 |
200 | -2.00 | 63.1 |
290 | -2.00 | 63.1 |
| 25 | -1.00 | 79.4 |
115 | -1.00 | 79.4 |
205 | -1.00 | 79.4 |
295 | -2.00 | 63.1 |
| 30 | -2.00 | 63.1 |
120 | -1.00 | 79.4 |
210 | -1.00 | 79.4 |
300 | -2.00 | 63.1 |
| 35 | -3.00 | 50.1 |
125 | -1.00 | 79.4 |
215 | -1.00 | 79.4 |
305 | -2.00 | 63.1 |
| 40 | -4.00 | 39.8 |
130 | -1.00 | 79.4 |
220 | -1.00 | 79.4 |
310 | -2.00 | 63.1 |
| 45 | -5.00 | 31.6 |
135 | -2.00 | 63.1 |
225 | 0.00 | 100.0 |
315 | -2.00 | 63.1 |
| 50 | -6.00 | 25.1 |
140 | -2.00 | 63.1 |
230 | -1.00 | 79.4 |
320 | -1.00 | 79.4 |
| 55 | -8.00 | 15.8 |
145 | -3.00 | 50.1 |
235 | -1.00 | 79.4 |
325 | -1.00 | 79.4 |
| 60 | -9.00 | 12.6 |
150 | -3.00 | 50.1 |
240 | -1.00 | 79.4 |
330 | -1.00 | 79.4 |
| 65 | -10.00 | 10.0 |
155 | -3.00 | 50.1 |
245 | -1.00 | 79.4 |
335 | 0.00 | 100.0 |
| 70 | -9.00 | 12.6 |
160 | -3.00 | 50.1 |
250 | -2.00 | 63.1 |
340 | 0.00 | 100.0 |
| 75 | -7.00 | 20.0 |
165 | -3.00 | 50.1 |
255 | -2.00 | 63.1 |
345 | 0.00 | 100.0 |
| 80 | -5.00 | 31.6 |
170 | -3.00 | 50.1 |
260 | -2.00 | 63.1 |
350 | 0.00 | 100.0 |
| 85 | -4.00 | 39.8 |
175 | -2.00 | 63.1 |
265 | -2.00 | 63.1 |
355 | 0.00 | 100.0 |
|
|
| Broadcasting Certificate effective date | 07/09/2018 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2030 | | Application received | 06/18/2018 | | Letter of Authorization issued | 06/10/2016 | | On-air date | 08/19/2016 | | CRTC letter date | 03/17/2016 | | CRTC hearing date | 04/11/2016 |
|
