Industry Canada File Number: 9352
CRTC Decision Number: 149999
Channel/Class: 248B (97.5)
Broadcasting Mode: Mono
Status: Operational
NAD83 Coordinates: 42 9' 11.88" N 82 57' 11.16" W
Short Spacing Code: LI
Site Elevation: 186 m
| Effective Radiated Power |
3.2 kW |
3.2 kW |
| Maximum Effective Radiated Power |
19 kW |
19 kW |
| Height Above Average Terrain |
130m |
130m |
| Radiation Center Above Ground Level |
130m |
130m |
| Radiation Center Above Mean Sea Level |
316m |
316m |
Overall Antenna Height Above Ground: 222 m

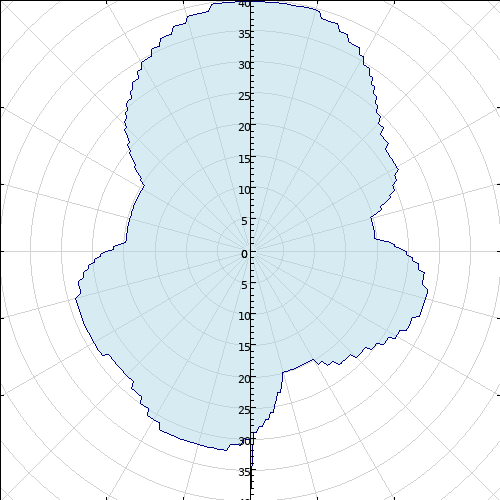

Antenna Type: Directional
Antenna System ID: 4480
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | 0.00 | 19.0 |
90 | -15.00 | 0.6 |
180 | -10.00 | 1.9 |
270 | -17.00 | 0.4 |
| 5 | 0.00 | 19.0 |
95 | -13.00 | 1.0 |
185 | -9.00 | 2.4 |
275 | -20.00 | 0.2 |
| 10 | 0.00 | 19.0 |
100 | -12.00 | 1.2 |
190 | -8.00 | 3.0 |
280 | -20.00 | 0.2 |
| 15 | 0.00 | 19.0 |
105 | -11.00 | 1.5 |
195 | -8.00 | 3.0 |
285 | -20.00 | 0.2 |
| 20 | -1.00 | 15.1 |
110 | -11.00 | 1.5 |
200 | -8.00 | 3.0 |
290 | -20.00 | 0.2 |
| 25 | -3.00 | 9.5 |
115 | -12.00 | 1.2 |
205 | -8.00 | 3.0 |
295 | -20.00 | 0.2 |
| 30 | -4.00 | 7.6 |
120 | -13.00 | 1.0 |
210 | -9.00 | 2.4 |
300 | -20.00 | 0.2 |
| 35 | -6.00 | 4.8 |
125 | -14.00 | 0.8 |
215 | -10.00 | 1.9 |
305 | -18.00 | 0.3 |
| 40 | -9.00 | 2.4 |
130 | -16.00 | 0.5 |
220 | -11.00 | 1.5 |
310 | -15.00 | 0.6 |
| 45 | -11.00 | 1.5 |
135 | -16.00 | 0.5 |
225 | -12.00 | 1.2 |
315 | -12.00 | 1.2 |
| 50 | -12.00 | 1.2 |
140 | -17.00 | 0.4 |
230 | -12.00 | 1.2 |
320 | -9.00 | 2.4 |
| 55 | -13.00 | 1.0 |
145 | -18.00 | 0.3 |
235 | -11.00 | 1.5 |
325 | -7.00 | 3.8 |
| 60 | -13.00 | 1.0 |
150 | -20.00 | 0.2 |
240 | -11.00 | 1.5 |
330 | -5.00 | 6.0 |
| 65 | -15.00 | 0.6 |
155 | -20.00 | 0.2 |
245 | -11.00 | 1.5 |
335 | -4.00 | 7.6 |
| 70 | -17.00 | 0.4 |
160 | -20.00 | 0.2 |
250 | -11.00 | 1.5 |
340 | -3.00 | 9.5 |
| 75 | -20.00 | 0.2 |
165 | -20.00 | 0.2 |
255 | -11.00 | 1.5 |
345 | -1.00 | 15.1 |
| 80 | -20.00 | 0.2 |
170 | -16.00 | 0.5 |
260 | -12.00 | 1.2 |
350 | -1.00 | 15.1 |
| 85 | -19.00 | 0.2 |
175 | -13.00 | 1.0 |
265 | -14.00 | 0.8 |
355 | 0.00 | 19.0 |
|
| Proposed parameters towards 248B London, ON along the azimuths from 31°-79° Proposed parameters towards 247B1 Oak Harbor, OH along the azimuths from 179°-236° Proposed parameters towards 248B Lansing, MI along the azimuths from 268°-323° Limited to 2.7kW & 126.7m towards 248B Akron, OH (Az.=136.3°) Limited to 1.9kW & 128m towards 249A Castalia, OH (Az.=171°) Limited to 28.7kW & 129.3m towards 249B1 Sandusky, MI (Az.=4.0°) |
| Paramètres proposés vers 248B London, ON au longs azimuths de 31°-79° Paramètres proposés vers 247B1 Oak Harbor, OH au longs azimuths de 179°-236° Paramètres proposés vers 248B Lansing, MI au longs azimuths de 268°-323° Limité à 2.7kW & 126.7m vers 284B Akron, OH (Az.=136.3°) Limité à 1.9kW & 128m vers 249A Castalia, OH (Az.=171°) Limité à 28.7kW & 129.3m vers 249B1 Sandusky, MI (Az.=4.0°)
|
|
|
| Broadcasting Certificate effective date | 09/21/2016 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2028 | | International coordination request sent | 06/23/2014 | | International coordination reply received | 07/08/2014 | | Application received | 09/09/2016 | | Letter of Authorization issued | 07/22/2014 | | On-air date | 09/04/2014 | | CRTC letter date | 05/09/2014 | | CRTC hearing date | 05/16/2014 |
|
