Industry Canada File Number: 6052
CRTC Decision Number: 139999
Channel/Class: 214B (90.7)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 43 15' 38.88" N 80 26' 38.04" W
Site Elevation: 305 m
| Effective Radiated Power |
2.44 kW |
2.44 kW |
| Maximum Effective Radiated Power |
8.23 kW |
4.92 kW |
| Height Above Average Terrain |
249m |
249m |
| Radiation Center Above Ground Level |
234m |
234m |
| Radiation Center Above Mean Sea Level |
539m |
539m |
Overall Antenna Height Above Ground: 289 m

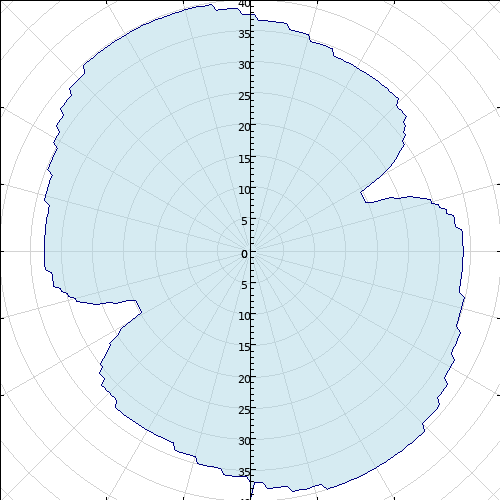

Antenna Type: Directional
Antenna System ID: 5530
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -2.00 | 5.193 |
90 | -6.00 | 2.067 |
180 | -3.00 | 4.125 |
270 | -7.00 | 1.642 |
| 5 | -3.00 | 4.125 |
95 | -6.00 | 2.067 |
185 | -4.00 | 3.276 |
275 | -7.00 | 1.642 |
| 10 | -4.00 | 3.276 |
100 | -6.00 | 2.067 |
190 | -5.00 | 2.603 |
280 | -7.00 | 1.642 |
| 15 | -4.00 | 3.276 |
105 | -5.00 | 2.603 |
195 | -6.00 | 2.067 |
285 | -6.00 | 2.067 |
| 20 | -5.00 | 2.603 |
110 | -5.00 | 2.603 |
200 | -6.00 | 2.067 |
290 | -6.00 | 2.067 |
| 25 | -6.00 | 2.067 |
115 | -4.00 | 3.276 |
205 | -7.00 | 1.642 |
295 | -5.00 | 2.603 |
| 30 | -6.00 | 2.067 |
120 | -3.00 | 4.125 |
210 | -7.00 | 1.642 |
300 | -4.00 | 3.276 |
| 35 | -6.00 | 2.067 |
125 | -2.00 | 5.193 |
215 | -7.00 | 1.642 |
305 | -3.00 | 4.125 |
| 40 | -6.00 | 2.067 |
130 | -1.00 | 6.537 |
220 | -7.00 | 1.642 |
310 | -2.00 | 5.193 |
| 45 | -7.00 | 1.642 |
135 | -1.00 | 6.537 |
225 | -8.00 | 1.304 |
315 | -1.00 | 6.537 |
| 50 | -8.00 | 1.304 |
140 | 0.00 | 8.230 |
230 | -9.00 | 1.036 |
320 | 0.00 | 8.230 |
| 55 | -10.00 | 0.823 |
145 | 0.00 | 8.230 |
235 | -12.00 | 0.519 |
325 | 0.00 | 8.230 |
| 60 | -16.00 | 0.207 |
150 | 0.00 | 8.230 |
240 | -18.00 | 0.130 |
330 | 0.00 | 8.230 |
| 65 | -20.00 | 0.082 |
155 | 0.00 | 8.230 |
245 | -20.00 | 0.082 |
335 | 0.00 | 8.230 |
| 70 | -15.00 | 0.260 |
160 | 0.00 | 8.230 |
250 | -16.00 | 0.207 |
340 | 0.00 | 8.230 |
| 75 | -10.00 | 0.823 |
165 | -1.00 | 6.537 |
255 | -11.00 | 0.654 |
345 | 0.00 | 8.230 |
| 80 | -7.00 | 1.642 |
170 | -1.00 | 6.537 |
260 | -8.00 | 1.304 |
350 | 0.00 | 8.230 |
| 85 | -6.00 | 2.067 |
175 | -2.00 | 5.193 |
265 | -7.00 | 1.642 |
355 | -1.00 | 6.537 |
|
|
| Broadcasting Certificate effective date | 05/28/2020 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2028 | | Application received | 05/27/2020 | | Letter of Authorization issued | 01/28/2014 | | On-air date | 12/12/2014 | | CRTC letter date | 10/30/2013 | | CRTC hearing date | 10/30/2013 |
|
