Industry Canada File Number: 5085
Channel/Class: 266B (101.1)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 42 54' 0.00" N 78 57' 7.92" W
Network:: MP3
Site Elevation: 183 m
| Effective Radiated Power |
50 kW |
50 kW |
| Maximum Effective Radiated Power |
1.199 kW |
1.199 kW |
| Height Above Average Terrain |
76m |
76m |
| Radiation Center Above Ground Level |
73m |
73m |
| Radiation Center Above Mean Sea Level |
256m |
256m |
Overall Antenna Height Above Ground: 77 m

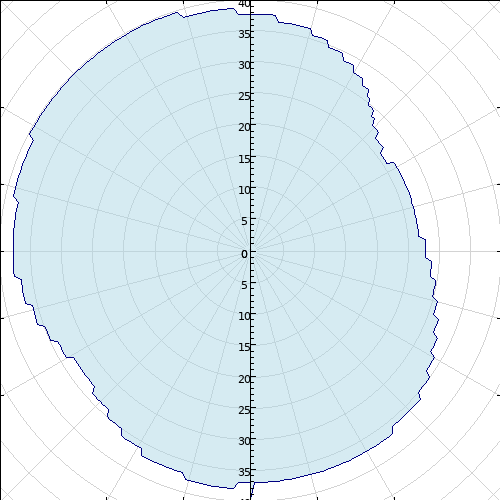

Antenna Type: Directional
Antenna System ID: 5524
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -2.00 | 0.757 |
90 | -12.00 | 0.076 |
180 | -3.00 | 0.601 |
270 | -2.00 | 0.757 |
| 5 | -2.00 | 0.757 |
95 | -11.00 | 0.095 |
185 | -2.00 | 0.757 |
275 | -2.00 | 0.757 |
| 10 | -3.00 | 0.601 |
100 | -10.00 | 0.120 |
190 | -2.00 | 0.757 |
280 | -2.00 | 0.757 |
| 15 | -3.00 | 0.601 |
105 | -9.00 | 0.151 |
195 | -2.00 | 0.757 |
285 | -1.00 | 0.952 |
| 20 | -4.00 | 0.477 |
110 | -8.00 | 0.190 |
200 | -3.00 | 0.601 |
290 | -1.00 | 0.952 |
| 25 | -5.00 | 0.379 |
115 | -7.00 | 0.239 |
205 | -3.00 | 0.601 |
295 | -1.00 | 0.952 |
| 30 | -7.00 | 0.239 |
120 | -6.00 | 0.301 |
210 | -4.00 | 0.477 |
300 | 0.00 | 1.199 |
| 35 | -8.00 | 0.190 |
125 | -5.00 | 0.379 |
215 | -4.00 | 0.477 |
305 | 0.00 | 1.199 |
| 40 | -10.00 | 0.120 |
130 | -5.00 | 0.379 |
220 | -5.00 | 0.379 |
310 | 0.00 | 1.199 |
| 45 | -12.00 | 0.076 |
135 | -4.00 | 0.477 |
225 | -6.00 | 0.301 |
315 | 0.00 | 1.199 |
| 50 | -13.00 | 0.060 |
140 | -4.00 | 0.477 |
230 | -7.00 | 0.239 |
320 | 0.00 | 1.199 |
| 55 | -14.00 | 0.048 |
145 | -3.00 | 0.601 |
235 | -7.00 | 0.239 |
325 | 0.00 | 1.199 |
| 60 | -13.00 | 0.060 |
150 | -3.00 | 0.601 |
240 | -6.00 | 0.301 |
330 | 0.00 | 1.199 |
| 65 | -13.00 | 0.060 |
155 | -3.00 | 0.601 |
245 | -6.00 | 0.301 |
335 | 0.00 | 1.199 |
| 70 | -13.00 | 0.060 |
160 | -3.00 | 0.601 |
250 | -5.00 | 0.379 |
340 | 0.00 | 1.199 |
| 75 | -13.00 | 0.060 |
165 | -3.00 | 0.601 |
255 | -4.00 | 0.477 |
345 | -1.00 | 0.952 |
| 80 | -13.00 | 0.060 |
170 | -3.00 | 0.601 |
260 | -3.00 | 0.601 |
350 | -1.00 | 0.952 |
| 85 | -13.00 | 0.060 |
175 | -3.00 | 0.601 |
265 | -2.00 | 0.757 |
355 | -1.00 | 0.952 |
|
|
| Broadcasting Certificate effective date | 10/06/2022 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2028 | | Application received | 04/14/2020 | | Letter of Authorization issued | 12/09/2020 | | On-air date | 04/20/1999 | | CRTC hearing date | 08/21/1996 |
|
