Industry Canada File Number: 5943
CRTC Decision Number: 940656
Channel/Class: 221B (92.1)
Broadcasting Mode: Mono
Status: Operational
NAD83 Coordinates: 54 31' 4.08" N 128 28' 22.80" W
REC measured distance to USA: 127.7 km - 300
Short Spacing Code: #LI
Site Elevation: 1012 m
| Effective Radiated Power |
0.043 kW |
0.043 kW |
| Maximum Effective Radiated Power |
0.18 kW |
0.18 kW |
| Height Above Average Terrain |
446m |
446m |
| Radiation Center Above Ground Level |
15m |
15m |
| Radiation Center Above Mean Sea Level |
1027m |
1027m |
Overall Antenna Height Above Ground: 33 m

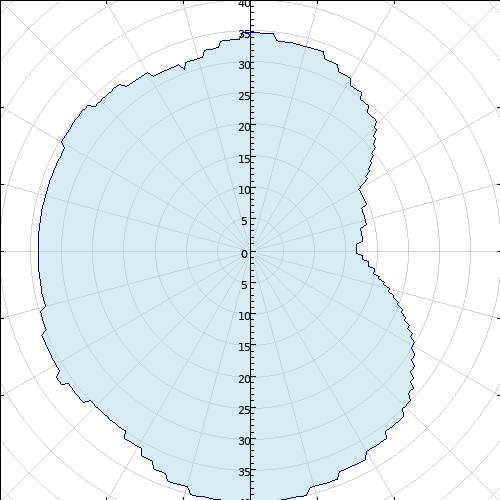

Antenna Type: Directional
Antenna System ID: 3429
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -5.53 | 0.050 |
90 | -23.48 | 0.001 |
180 | 0.00 | 0.180 |
270 | -6.04 | 0.045 |
| 5 | -5.88 | 0.046 |
95 | -21.74 | 0.001 |
185 | -0.13 | 0.175 |
275 | -6.12 | 0.044 |
| 10 | -6.23 | 0.043 |
100 | -20.00 | 0.002 |
190 | -0.26 | 0.169 |
280 | -6.21 | 0.043 |
| 15 | -6.58 | 0.040 |
105 | -17.61 | 0.003 |
195 | -1.05 | 0.141 |
285 | -6.29 | 0.042 |
| 20 | -6.94 | 0.036 |
110 | -15.23 | 0.005 |
200 | -1.83 | 0.118 |
290 | -6.38 | 0.041 |
| 25 | -7.90 | 0.029 |
115 | -12.84 | 0.009 |
205 | -3.13 | 0.087 |
295 | -6.17 | 0.043 |
| 30 | -8.87 | 0.023 |
120 | -10.46 | 0.016 |
210 | -4.44 | 0.065 |
300 | -5.97 | 0.046 |
| 35 | -9.94 | 0.018 |
125 | -8.70 | 0.024 |
215 | -5.06 | 0.056 |
305 | -5.88 | 0.046 |
| 40 | -11.01 | 0.014 |
130 | -6.95 | 0.036 |
220 | -5.68 | 0.049 |
310 | -5.96 | 0.046 |
| 45 | -12.08 | 0.011 |
135 | -5.19 | 0.054 |
225 | -5.32 | 0.053 |
315 | -6.04 | 0.045 |
| 50 | -14.72 | 0.006 |
140 | -4.49 | 0.064 |
230 | -4.60 | 0.062 |
320 | -6.65 | 0.039 |
| 55 | -17.36 | 0.003 |
145 | -3.80 | 0.075 |
235 | -3.88 | 0.074 |
325 | -7.27 | 0.034 |
| 60 | -20.00 | 0.002 |
150 | -3.10 | 0.088 |
240 | -4.16 | 0.069 |
330 | -7.89 | 0.029 |
| 65 | -20.58 | 0.002 |
155 | -2.46 | 0.102 |
245 | -4.44 | 0.065 |
335 | -8.50 | 0.025 |
| 70 | -21.16 | 0.001 |
160 | -1.83 | 0.118 |
250 | -5.27 | 0.053 |
340 | -9.12 | 0.022 |
| 75 | -21.74 | 0.001 |
165 | -1.23 | 0.136 |
255 | -6.10 | 0.044 |
345 | -8.22 | 0.027 |
| 80 | -22.32 | 0.001 |
170 | -0.63 | 0.156 |
260 | -6.94 | 0.036 |
350 | -7.33 | 0.033 |
| 85 | -22.90 | 0.001 |
175 | -0.32 | 0.167 |
265 | -6.49 | 0.040 |
355 | -6.43 | 0.041 |
|
| Limited to 0.18 kW and 446 metres (domestic). |
| Limité à 0.18 kW et 446 mètres (domestique). |
|
|
| Broadcasting Certificate effective date | 09/01/2015 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 09/01/2022 | | International coordination request sent | 06/08/1994 | | International coordination reply received | 07/01/1994 | | Application received | 03/07/1994 | | Letter of Authorization issued | 08/24/1994 | | On-air date | 12/20/1994 |
|
