Industry Canada File Number: 3829
Channel/Class: 240C1 (95.9)
Broadcasting Mode: Stereo
Status:
NAD83 Coordinates: 42 56' 58.92" N 81 15' 51.84" W
Site Elevation: 280 m
| Effective Radiated Power |
90 kW |
90 kW |
| Maximum Effective Radiated Power |
190 kW |
190 kW |
| Height Above Average Terrain |
273m |
273m |
| Radiation Center Above Ground Level |
253m |
253m |
| Radiation Center Above Mean Sea Level |
533m |
533m |
Overall Antenna Height Above Ground: 298 m

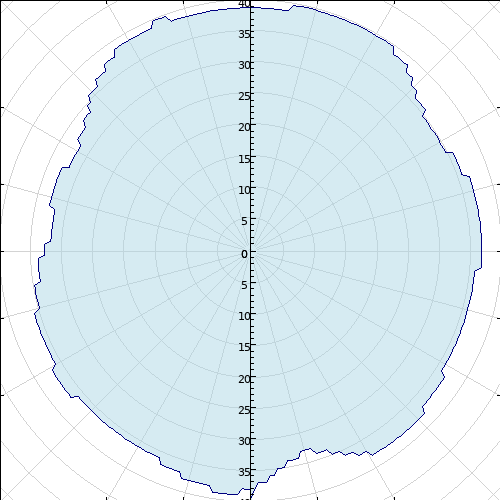

Antenna Type: Directional
Antenna System ID: 4886
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -1.00 | 150.9 |
90 | -3.00 | 95.2 |
180 | -2.00 | 119.9 |
270 | -7.00 | 37.9 |
| 5 | -1.00 | 150.9 |
95 | -4.00 | 75.6 |
185 | -1.00 | 150.9 |
275 | -8.00 | 30.1 |
| 10 | 0.00 | 190.0 |
100 | -4.00 | 75.6 |
190 | -2.00 | 119.9 |
280 | -8.00 | 30.1 |
| 15 | 0.00 | 190.0 |
105 | -4.00 | 75.6 |
195 | -2.00 | 119.9 |
285 | -7.00 | 37.9 |
| 20 | 0.00 | 190.0 |
110 | -4.00 | 75.6 |
200 | -3.00 | 95.2 |
290 | -7.00 | 37.9 |
| 25 | 0.00 | 190.0 |
115 | -4.00 | 75.6 |
205 | -4.00 | 75.6 |
295 | -8.00 | 30.1 |
| 30 | 0.00 | 190.0 |
120 | -4.00 | 75.6 |
210 | -4.00 | 75.6 |
300 | -8.00 | 30.1 |
| 35 | 0.00 | 190.0 |
125 | -3.00 | 95.2 |
215 | -4.00 | 75.6 |
305 | -7.00 | 37.9 |
| 40 | -1.00 | 150.9 |
130 | -3.00 | 95.2 |
220 | -4.00 | 75.6 |
310 | -6.00 | 47.7 |
| 45 | -3.00 | 95.2 |
135 | -2.00 | 119.9 |
225 | -4.00 | 75.6 |
315 | -4.00 | 75.6 |
| 50 | -4.00 | 75.6 |
140 | -2.00 | 119.9 |
230 | -4.00 | 75.6 |
320 | -3.00 | 95.2 |
| 55 | -5.00 | 60.1 |
145 | -2.00 | 119.9 |
235 | -3.00 | 95.2 |
325 | -2.00 | 119.9 |
| 60 | -5.00 | 60.1 |
150 | -3.00 | 95.2 |
240 | -4.00 | 75.6 |
330 | -1.00 | 150.9 |
| 65 | -4.00 | 75.6 |
155 | -4.00 | 75.6 |
245 | -4.00 | 75.6 |
335 | -1.00 | 150.9 |
| 70 | -4.00 | 75.6 |
160 | -6.00 | 47.7 |
250 | -4.00 | 75.6 |
340 | 0.00 | 190.0 |
| 75 | -3.00 | 95.2 |
165 | -7.00 | 37.9 |
255 | -5.00 | 60.1 |
345 | -1.00 | 150.9 |
| 80 | -3.00 | 95.2 |
170 | -6.00 | 47.7 |
260 | -5.00 | 60.1 |
350 | -1.00 | 150.9 |
| 85 | -3.00 | 95.2 |
175 | -4.00 | 75.6 |
265 | -6.00 | 47.7 |
355 | -1.00 | 150.9 |
|
|
| Broadcasting Certificate effective date | 02/06/2018 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2031 | | Application received | 08/21/2018 | | Letter of Authorization issued | 05/31/2017 | | On-air date | 10/16/2003 | | CRTC letter date | 07/11/2000 | | CRTC hearing date | 07/26/2000 |
|
