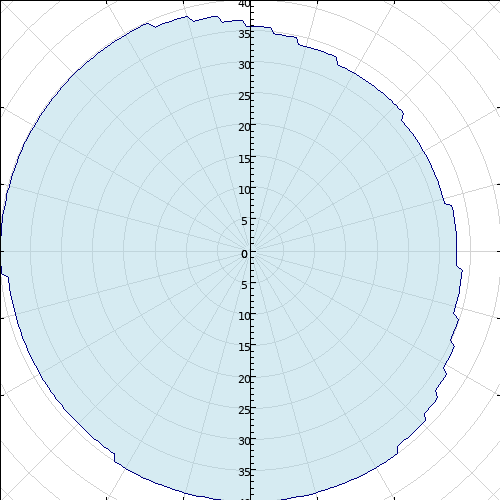

11-13 4PM ET: It appears that the FCC Contours API has been restored and is operating reliably. The outage did cause residual issues with some eLMS qualified FM applications and amendments not receiving contour maps or HAAT data. We will address this by re-running those impacted applications through eLMS this weekend. USA (AM/FM/TV) USA (Amateur) Canada Mexico UK/Ireland Australia Japan/日本 Call Sign Community Name Licensee Name Broadcast Amateur Industry Canada - Canada CFWC-FM Brantford ON Dufferin Communications Inc. 5312 Dundas Street West Toronto ON   Industry Canada File Number: 7095 CRTC Decision Number: 220220 Channel/Class: 230A (93.9) Broadcasting Mode: Stereo Status: Operational NAD83 Coordinates: 43 10' 5.16" N 80 14' 48.84" W Short Spacing Code: LI Site Elevation: 223 m   Horiz Vert Effective Radiated Power 1.483 kW 1.483 kW Maximum Effective Radiated Power 2.63 kW 2.63 kW Height Above Average Terrain 40m 40m Radiation Center Above Ground Level 45m 45m Radiation Center Above Mean Sea Level 268m 268m Overall Antenna Height Above Ground: 61 m Antenna Type: Directional Antenna System ID: 6179 Rad dB ERP Rad dB ERP Rad dB ERP Rad dB ERP 0 -4.00 1.047 90 -7.00 0.525 180 0.00 2.630 270 0.00 2.630 5 -4.00 1.047 95 -6.00 0.661 185 0.00 2.630 275 0.00 2.630 10 -5.00 0.832 100 -6.00 0.661 190 0.00 2.630 280 0.00 2.630 15 -6.00 0.661 105 -6.00 0.661 195 0.00 2.630 285 0.00 2.630 20 -6.00 0.661 110 -5.00 0.832 200 0.00 2.630 290 0.00 2.630 25 -7.00 0.525 115 -4.00 1.047 205 0.00 2.630 295 0.00 2.630 30 -7.00 0.525 120 -4.00 1.047 210 0.00 2.630 300 0.00 2.630 35 -7.00 0.525 125 -3.00 1.318 215 -1.00 2.089 305 0.00 2.630 40 -7.00 0.525 130 -2.00 1.659 220 -1.00 2.089 310 0.00 2.630 45 -7.00 0.525 135 -1.00 2.089 225 -1.00 2.089 315 0.00 2.630 50 -8.00 0.417 140 -1.00 2.089 230 -1.00 2.089 320 0.00 2.630 55 -8.00 0.417 145 0.00 2.630 235 -1.00 2.089 325 0.00 2.630 60 -8.00 0.417 150 0.00 2.630 240 -1.00 2.089 330 0.00 2.630 65 -8.00 0.417 155 0.00 2.630 245 -1.00 2.089 335 0.00 2.630 70 -8.00 0.417 160 0.00 2.630 250 -1.00 2.089 340 -1.00 2.089 75 -8.00 0.417 165 0.00 2.630 255 -1.00 2.089 345 -1.00 2.089 80 -7.00 0.525 170 0.00 2.630 260 -1.00 2.089 350 -2.00 1.659 85 -7.00 0.525 175 0.00 2.630 265 0.00 2.630 355 -3.00 1.318 LIMITS Limited to proposed parameters including antenna radiation pattern (domestic) Limited to 6 kW ERP and 70 m HAAT or equivalent towards channel 230A in Fairview, PA (Az.= 158° to Az. = 177°). Limité aux paramètres proposés incluant le patron d'antenne (Domestique) Limité à 6 kW ERP et 70 m HAAT ou équivalent vers le canal 230A à Fairview, PA (Az.= 158° to Az. = 177°). APPLICATION HISTORY Broadcasting Certificate effective date 12/11/2023 Broadcasting Certificate renewal date or LOA or OATA expiry date 08/31/2030 International coordination request sent 01/08/2004 International coordination reply received 03/10/2004 Application received 05/05/2022 Letter of Authorization issued 07/21/2020 On-air date 05/17/2023 CRTC letter date 06/13/2022 CRTC hearing date 08/11/2022
