Industry Canada File Number: 6794
Channel/Class: 228B (93.5)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 43 38' 56.04" N 79 22' 54.12" W
Short Spacing Code: LI
Site Elevation: 84 m
| Effective Radiated Power |
1.069 kW |
1.069 kW |
| Maximum Effective Radiated Power |
3.706 kW |
3.706 kW |
| Height Above Average Terrain |
298m |
298m |
| Radiation Center Above Ground Level |
332m |
332m |
| Radiation Center Above Mean Sea Level |
416m |
416m |
Overall Antenna Height Above Ground: 352 m

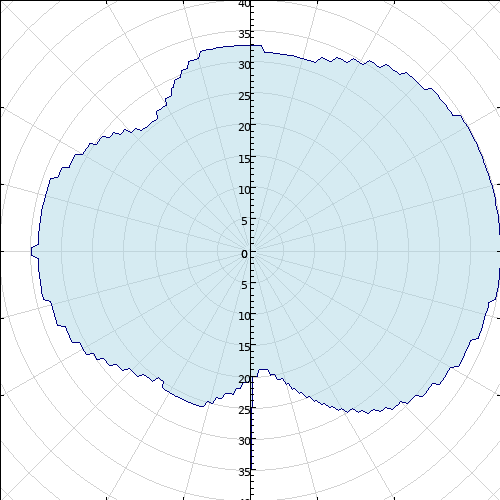

Antenna Type: Directional
Antenna System ID: 5746
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -7.00 | 0.739 |
90 | 0.00 | 3.706 |
180 | -20.00 | 0.037 |
270 | -5.00 | 1.172 |
| 5 | -8.00 | 0.587 |
95 | 0.00 | 3.706 |
185 | -18.00 | 0.059 |
275 | -6.00 | 0.931 |
| 10 | -8.00 | 0.587 |
100 | 0.00 | 3.706 |
190 | -17.00 | 0.074 |
280 | -6.00 | 0.931 |
| 15 | -8.00 | 0.587 |
105 | -1.00 | 2.944 |
195 | -15.00 | 0.117 |
285 | -6.00 | 0.931 |
| 20 | -7.00 | 0.739 |
110 | -1.00 | 2.944 |
200 | -14.00 | 0.148 |
290 | -6.00 | 0.931 |
| 25 | -6.00 | 0.931 |
115 | -2.00 | 2.338 |
205 | -14.00 | 0.148 |
295 | -8.00 | 0.587 |
| 30 | -5.00 | 1.172 |
120 | -3.00 | 1.857 |
210 | -14.00 | 0.148 |
300 | -9.00 | 0.467 |
| 35 | -4.00 | 1.475 |
125 | -3.00 | 1.857 |
215 | -15.00 | 0.117 |
305 | -10.00 | 0.371 |
| 40 | -3.00 | 1.857 |
130 | -4.00 | 1.475 |
220 | -14.00 | 0.148 |
310 | -11.00 | 0.294 |
| 45 | -2.00 | 2.338 |
135 | -6.00 | 0.931 |
225 | -13.00 | 0.186 |
315 | -13.00 | 0.186 |
| 50 | -1.00 | 2.944 |
140 | -7.00 | 0.739 |
230 | -12.00 | 0.234 |
320 | -14.00 | 0.148 |
| 55 | -1.00 | 2.944 |
145 | -9.00 | 0.467 |
235 | -10.00 | 0.371 |
325 | -14.00 | 0.148 |
| 60 | 0.00 | 3.706 |
150 | -11.00 | 0.294 |
240 | -9.00 | 0.467 |
330 | -13.00 | 0.186 |
| 65 | 0.00 | 3.706 |
155 | -13.00 | 0.186 |
245 | -8.00 | 0.587 |
335 | -11.00 | 0.294 |
| 70 | 0.00 | 3.706 |
160 | -16.00 | 0.093 |
250 | -7.00 | 0.739 |
340 | -9.00 | 0.467 |
| 75 | 0.00 | 3.706 |
165 | -18.00 | 0.059 |
255 | -7.00 | 0.739 |
345 | -8.00 | 0.587 |
| 80 | 0.00 | 3.706 |
170 | -20.00 | 0.037 |
260 | -6.00 | 0.931 |
350 | -7.00 | 0.739 |
| 85 | 0.00 | 3.706 |
175 | -21.00 | 0.029 |
265 | -6.00 | 0.931 |
355 | -7.00 | 0.739 |
|
| Limited to the proposed parameters including the directional antenna pattern. |
| Limité aux paramètres proposés incluant le patron d'antenne directionnel.
|
|
|
| Broadcasting Certificate effective date | 07/21/2022 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2027 | | Application received | 11/04/2020 | | Letter of Authorization issued | 01/15/2021 | | On-air date | 03/03/2006 | | CRTC letter date | 06/16/2004 | | CRTC hearing date | 09/13/2004 |
|
