Industry Canada File Number: 3921
Channel/Class: 251C1 (98.1)
Broadcasting Mode: Stereo
Status:
NAD83 Coordinates: 43 47' 44.88" N 79 25' 33.96" W
Site Elevation: 190 m
| Effective Radiated Power |
0 kW |
2.26 kW |
| Maximum Effective Radiated Power |
0 kW |
3.95 kW |
| Height Above Average Terrain |
0m |
104m |
| Radiation Center Above Ground Level |
0m |
102m |
| Radiation Center Above Mean Sea Level |
0m |
292m |
Overall Antenna Height Above Ground: 109 m

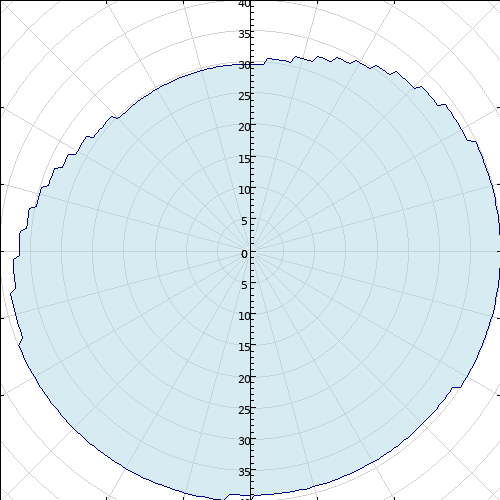

Antenna Type: Directional
Antenna System ID: 5782
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -10.00 | 0.395 |
90 | 0.00 | 3.950 |
180 | -1.00 | 3.138 |
270 | -3.00 | 1.980 |
| 5 | -9.00 | 0.497 |
95 | 0.00 | 3.950 |
185 | -1.00 | 3.138 |
275 | -3.00 | 1.980 |
| 10 | -9.00 | 0.497 |
100 | 0.00 | 3.950 |
190 | 0.00 | 3.950 |
280 | -4.00 | 1.573 |
| 15 | -8.00 | 0.626 |
105 | 0.00 | 3.950 |
195 | 0.00 | 3.950 |
285 | -5.00 | 1.249 |
| 20 | -7.00 | 0.788 |
110 | 0.00 | 3.950 |
200 | 0.00 | 3.950 |
290 | -6.00 | 0.992 |
| 25 | -6.00 | 0.992 |
115 | 0.00 | 3.950 |
205 | 0.00 | 3.950 |
295 | -7.00 | 0.788 |
| 30 | -5.00 | 1.249 |
120 | 0.00 | 3.950 |
210 | 0.00 | 3.950 |
300 | -8.00 | 0.626 |
| 35 | -4.00 | 1.573 |
125 | -1.00 | 3.138 |
215 | 0.00 | 3.950 |
305 | -8.00 | 0.626 |
| 40 | -3.00 | 1.980 |
130 | -1.00 | 3.138 |
220 | 0.00 | 3.950 |
310 | -9.00 | 0.497 |
| 45 | -3.00 | 1.980 |
135 | -1.00 | 3.138 |
225 | 0.00 | 3.950 |
315 | -10.00 | 0.395 |
| 50 | -2.00 | 2.492 |
140 | -1.00 | 3.138 |
230 | 0.00 | 3.950 |
320 | -10.00 | 0.395 |
| 55 | -1.00 | 3.138 |
145 | -1.00 | 3.138 |
235 | 0.00 | 3.950 |
325 | -10.00 | 0.395 |
| 60 | -1.00 | 3.138 |
150 | -1.00 | 3.138 |
240 | 0.00 | 3.950 |
330 | -10.00 | 0.395 |
| 65 | 0.00 | 3.950 |
155 | -1.00 | 3.138 |
245 | 0.00 | 3.950 |
335 | -10.00 | 0.395 |
| 70 | 0.00 | 3.950 |
160 | -1.00 | 3.138 |
250 | -1.00 | 3.138 |
340 | -10.00 | 0.395 |
| 75 | 0.00 | 3.950 |
165 | -1.00 | 3.138 |
255 | -1.00 | 3.138 |
345 | -10.00 | 0.395 |
| 80 | 0.00 | 3.950 |
170 | -1.00 | 3.138 |
260 | -1.00 | 3.138 |
350 | -10.00 | 0.395 |
| 85 | 0.00 | 3.950 |
175 | -1.00 | 3.138 |
265 | -2.00 | 2.492 |
355 | -10.00 | 0.395 |
|
|
| Broadcasting Certificate effective date | 06/06/2023 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2027 | | Application received | 01/28/2021 | | Letter of Authorization issued | 06/10/1976 | | On-air date | 05/21/1976 |
|
