Industry Canada File Number: 7299
Channel/Class: 299A (107.7)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 43 20' 8.16" N 81 0' 11.16" W
Short Spacing Code: LI
Site Elevation: 365 m
| Effective Radiated Power |
2.717 kW |
2.717 kW |
| Maximum Effective Radiated Power |
6 kW |
6 kW |
| Height Above Average Terrain |
84m |
84m |
| Radiation Center Above Ground Level |
74m |
74m |
| Radiation Center Above Mean Sea Level |
439m |
439m |
Overall Antenna Height Above Ground: 82 m

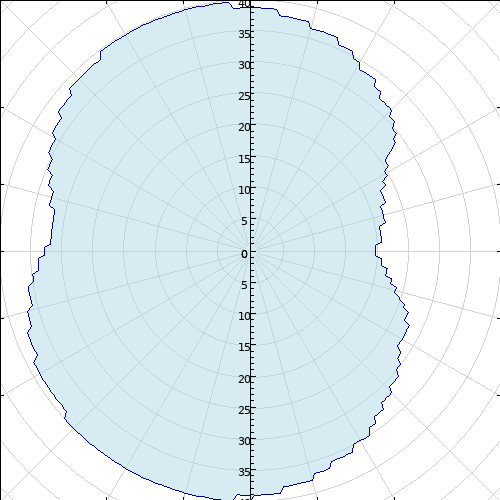

Antenna Type: Directional
Antenna System ID: 5328
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -1.00 | 4.766 |
90 | -20.00 | 0.060 |
180 | -1.00 | 4.766 |
270 | -7.00 | 1.197 |
| 5 | -1.00 | 4.766 |
95 | -19.00 | 0.076 |
185 | 0.00 | 6.000 |
275 | -8.00 | 0.951 |
| 10 | -2.00 | 3.786 |
100 | -18.00 | 0.095 |
190 | 0.00 | 6.000 |
280 | -8.00 | 0.951 |
| 15 | -3.00 | 3.007 |
105 | -16.00 | 0.151 |
195 | 0.00 | 6.000 |
285 | -7.00 | 1.197 |
| 20 | -3.00 | 3.007 |
110 | -14.00 | 0.239 |
200 | 0.00 | 6.000 |
290 | -6.00 | 1.507 |
| 25 | -4.00 | 2.389 |
115 | -12.00 | 0.379 |
205 | 0.00 | 6.000 |
295 | -5.00 | 1.897 |
| 30 | -5.00 | 1.897 |
120 | -12.00 | 0.379 |
210 | 0.00 | 6.000 |
300 | -4.00 | 2.389 |
| 35 | -6.00 | 1.507 |
125 | -11.00 | 0.477 |
215 | 0.00 | 6.000 |
305 | -3.00 | 3.007 |
| 40 | -8.00 | 0.951 |
130 | -9.00 | 0.755 |
220 | 0.00 | 6.000 |
310 | -2.00 | 3.786 |
| 45 | -8.00 | 0.951 |
135 | -8.00 | 0.951 |
225 | 0.00 | 6.000 |
315 | -1.00 | 4.766 |
| 50 | -10.00 | 0.600 |
140 | -7.00 | 1.197 |
230 | -1.00 | 4.766 |
320 | -1.00 | 4.766 |
| 55 | -13.00 | 0.301 |
145 | -6.00 | 1.507 |
235 | -1.00 | 4.766 |
325 | 0.00 | 6.000 |
| 60 | -15.00 | 0.190 |
150 | -5.00 | 1.897 |
240 | -1.00 | 4.766 |
330 | 0.00 | 6.000 |
| 65 | -17.00 | 0.120 |
155 | -4.00 | 2.389 |
245 | -2.00 | 3.786 |
335 | 0.00 | 6.000 |
| 70 | -17.00 | 0.120 |
160 | -3.00 | 3.007 |
250 | -2.00 | 3.786 |
340 | 0.00 | 6.000 |
| 75 | -18.00 | 0.095 |
165 | -2.00 | 3.786 |
255 | -3.00 | 3.007 |
345 | 0.00 | 6.000 |
| 80 | -19.00 | 0.076 |
170 | -2.00 | 3.786 |
260 | -4.00 | 2.389 |
350 | 0.00 | 6.000 |
| 85 | -19.00 | 0.076 |
175 | -1.00 | 4.766 |
265 | -6.00 | 1.507 |
355 | 0.00 | 6.000 |
|
| Limited to 410 W and 80 metres towards 300B Burlington, ON (AZ. = 86.1°) Limited to 240 W and 79 m etres towards 298A Cambridge,ON (Az. 81.8°) |
| Limité à 410 W et 80 mètres vers 300B Burlington, ON (AZ. = 86.1°) Limité à 240 W et 79 mètres vers 298A Cambridge, ON (Az. 81.8°)
|
|
|
| Broadcasting Certificate effective date | 01/26/2022 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2029 | | International coordination request sent | 04/26/2002 | | International coordination reply received | 05/28/2002 | | Application received | 10/11/2019 | | Letter of Authorization issued | 08/14/2020 | | On-air date | 01/05/2021 | | CRTC letter date | 01/22/2002 | | CRTC hearing date | 12/18/2002 |
|
