Industry Canada File Number: 6142
CRTC Decision Number: 219999
Channel/Class: 241C (96.1)
Broadcasting Mode: Stereo
Status:
NAD83 Coordinates: 49 21' 12.96" N 122 57' 25.20" W
Site Elevation: 848 m
| Effective Radiated Power |
15.441 kW |
15.441 kW |
| Maximum Effective Radiated Power |
41.689 kW |
50.018 kW |
| Height Above Average Terrain |
610m |
610m |
| Radiation Center Above Ground Level |
67m |
67m |
| Radiation Center Above Mean Sea Level |
915m |
915m |
Overall Antenna Height Above Ground: 91 m

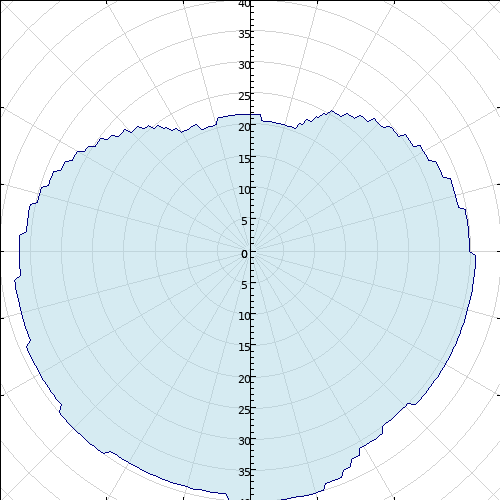

Antenna Type: Directional
Antenna System ID: 5795
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -18.00 | 0.8 |
90 | -5.00 | 15.8 |
180 | 0.00 | 50.0 |
270 | -3.00 | 25.1 |
| 5 | -19.00 | 0.6 |
95 | -4.00 | 19.9 |
185 | 0.00 | 50.0 |
275 | -4.00 | 19.9 |
| 10 | -19.00 | 0.6 |
100 | -4.00 | 19.9 |
190 | -1.00 | 39.7 |
280 | -4.00 | 19.9 |
| 15 | -19.00 | 0.6 |
105 | -4.00 | 19.9 |
195 | -1.00 | 39.7 |
285 | -5.00 | 15.8 |
| 20 | -19.00 | 0.6 |
110 | -4.00 | 19.9 |
200 | -1.00 | 39.7 |
290 | -6.00 | 12.6 |
| 25 | -17.00 | 1.0 |
115 | -4.00 | 19.9 |
205 | -1.00 | 39.7 |
295 | -7.00 | 10.0 |
| 30 | -14.00 | 2.0 |
120 | -4.00 | 19.9 |
210 | -1.00 | 39.7 |
300 | -8.00 | 7.9 |
| 35 | -13.00 | 2.5 |
125 | -4.00 | 19.9 |
215 | -1.00 | 39.7 |
305 | -10.00 | 5.0 |
| 40 | -12.00 | 3.2 |
130 | -4.00 | 19.9 |
220 | 0.00 | 50.0 |
310 | -11.00 | 4.0 |
| 45 | -11.00 | 4.0 |
135 | -5.00 | 15.8 |
225 | 0.00 | 50.0 |
315 | -13.00 | 2.5 |
| 50 | -10.00 | 5.0 |
140 | -5.00 | 15.8 |
230 | 0.00 | 50.0 |
320 | -14.00 | 2.0 |
| 55 | -9.00 | 6.3 |
145 | -4.00 | 19.9 |
235 | -1.00 | 39.7 |
325 | -16.00 | 1.3 |
| 60 | -8.00 | 7.9 |
150 | -4.00 | 19.9 |
240 | -1.00 | 39.7 |
330 | -18.00 | 0.8 |
| 65 | -7.00 | 10.0 |
155 | -2.00 | 31.6 |
245 | -1.00 | 39.7 |
335 | -18.00 | 0.8 |
| 70 | -6.00 | 12.6 |
160 | -1.00 | 39.7 |
250 | -2.00 | 31.6 |
340 | -19.00 | 0.6 |
| 75 | -6.00 | 12.6 |
165 | 0.00 | 50.0 |
255 | -2.00 | 31.6 |
345 | -19.00 | 0.6 |
| 80 | -5.00 | 15.8 |
170 | 0.00 | 50.0 |
260 | -2.00 | 31.6 |
350 | -18.00 | 0.8 |
| 85 | -5.00 | 15.8 |
175 | 0.00 | 50.0 |
265 | -3.00 | 25.1 |
355 | -18.00 | 0.8 |
|
|
| Broadcasting Certificate effective date | 10/31/2022 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2029 | | Application received | 01/18/2021 | | Letter of Authorization issued | 12/01/2021 | | On-air date | 08/05/2022 | | CRTC letter date | 02/08/2021 | | CRTC hearing date | 05/05/2021 |
|
