Industry Canada File Number: 8424
CRTC Decision Number: 100934
Channel/Class: 201A (88.1)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 44 54' 33.84" N 76 16' 50.88" W
REC measured distance to USA: 57.5 km - 131.9
Short Spacing Code: * #
Site Elevation: 143 m
| Effective Radiated Power |
0 kW |
2.8 kW |
| Maximum Effective Radiated Power |
0 kW |
5.4 kW |
| Height Above Average Terrain |
0m |
91.5m |
| Radiation Center Above Ground Level |
0m |
96m |
| Radiation Center Above Mean Sea Level |
0m |
239m |
Overall Antenna Height Above Ground: 99 m

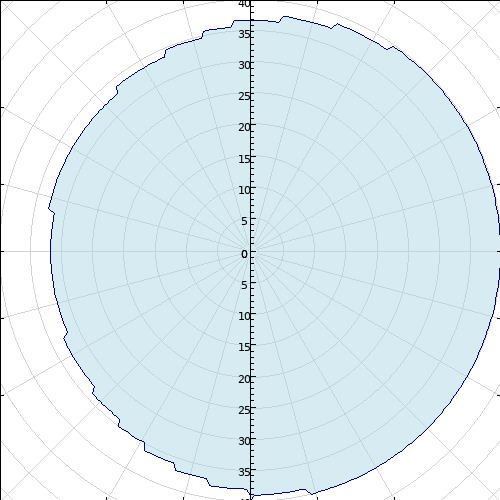

Antenna Type: Directional
Antenna System ID: 3663
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -3.73 | 2.286 |
90 | -0.04 | 5.349 |
180 | -1.95 | 3.444 |
270 | -8.18 | 0.821 |
| 5 | -3.43 | 2.454 |
95 | -0.10 | 5.283 |
185 | -2.50 | 3.035 |
275 | -8.11 | 0.834 |
| 10 | -2.71 | 2.897 |
100 | -0.10 | 5.272 |
190 | -2.93 | 2.752 |
280 | -8.03 | 0.849 |
| 15 | -2.51 | 3.026 |
105 | -0.03 | 5.358 |
195 | -3.48 | 2.425 |
285 | -7.83 | 0.891 |
| 20 | -2.03 | 3.381 |
110 | -0.04 | 5.345 |
200 | -4.04 | 2.132 |
290 | -7.67 | 0.923 |
| 25 | -1.60 | 3.738 |
115 | -0.03 | 5.367 |
205 | -4.59 | 1.877 |
295 | -7.65 | 0.928 |
| 30 | -1.21 | 4.088 |
120 | -0.06 | 5.328 |
210 | -5.14 | 1.652 |
300 | -7.49 | 0.962 |
| 35 | -0.94 | 4.346 |
125 | -0.08 | 5.304 |
215 | -5.71 | 1.452 |
305 | -7.31 | 1.002 |
| 40 | -0.71 | 4.586 |
130 | -0.10 | 5.273 |
220 | -6.24 | 1.284 |
310 | -7.27 | 1.013 |
| 45 | -0.71 | 4.589 |
135 | -0.13 | 5.241 |
225 | -6.74 | 1.144 |
315 | -7.25 | 1.016 |
| 50 | -0.56 | 4.745 |
140 | -0.14 | 5.234 |
230 | -7.15 | 1.042 |
320 | -7.01 | 1.076 |
| 55 | -0.50 | 4.810 |
145 | -0.19 | 5.173 |
235 | -7.49 | 0.963 |
325 | -6.65 | 1.169 |
| 60 | -0.34 | 4.997 |
150 | -0.34 | 4.994 |
240 | -7.75 | 0.906 |
330 | -6.27 | 1.274 |
| 65 | -0.22 | 5.136 |
155 | -0.53 | 4.780 |
245 | -7.97 | 0.861 |
335 | -6.04 | 1.343 |
| 70 | -0.20 | 5.161 |
160 | -0.65 | 4.654 |
250 | -8.18 | 0.820 |
340 | -5.67 | 1.463 |
| 75 | -0.20 | 5.157 |
165 | -0.88 | 4.411 |
255 | -8.25 | 0.807 |
345 | -5.13 | 1.657 |
| 80 | -0.17 | 5.189 |
170 | -1.16 | 4.132 |
260 | -8.29 | 0.800 |
350 | -4.65 | 1.850 |
| 85 | -0.11 | 5.260 |
175 | -1.58 | 3.750 |
265 | -8.24 | 0.810 |
355 | -4.02 | 2.138 |
|
|
| Broadcasting Certificate effective date | 03/27/2013 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 09/01/2019 | | Application received | 07/30/2010 | | Letter of Authorization issued | 12/15/2010 | | On-air date | 03/21/2013 | | CRTC letter date | 08/06/2010 | | CRTC hearing date | 12/13/2010 |
|
