Industry Canada File Number: 20115
Channel/Class: 261B1 (100.1)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 43 44' 26.16" N 80 56' 0.96" W
Short Spacing Code: LI
Site Elevation: 388 m
| Effective Radiated Power |
6.4 kW |
6.4 kW |
| Maximum Effective Radiated Power |
10.7 kW |
10.7 kW |
| Height Above Average Terrain |
63m |
63m |
| Radiation Center Above Ground Level |
61m |
61m |
| Radiation Center Above Mean Sea Level |
449m |
449m |
Overall Antenna Height Above Ground: 91 m

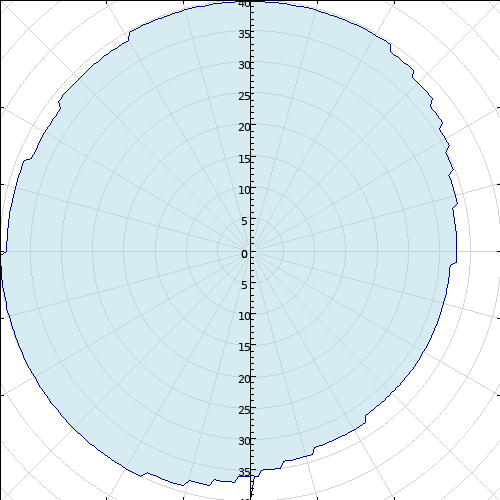

Antenna Type: Directional
Antenna System ID: 5545
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | 0.00 | 10.7 |
90 | -7.00 | 2.1 |
180 | -4.00 | 4.3 |
270 | -1.00 | 8.5 |
| 5 | 0.00 | 10.7 |
95 | -8.00 | 1.7 |
185 | -3.00 | 5.4 |
275 | -1.00 | 8.5 |
| 10 | 0.00 | 10.7 |
100 | -8.00 | 1.7 |
190 | -2.00 | 6.8 |
280 | -1.00 | 8.5 |
| 15 | 0.00 | 10.7 |
105 | -8.00 | 1.7 |
195 | -2.00 | 6.8 |
285 | -1.00 | 8.5 |
| 20 | 0.00 | 10.7 |
110 | -8.00 | 1.7 |
200 | -1.00 | 8.5 |
290 | -1.00 | 8.5 |
| 25 | 0.00 | 10.7 |
115 | -8.00 | 1.7 |
205 | -1.00 | 8.5 |
295 | -2.00 | 6.8 |
| 30 | 0.00 | 10.7 |
120 | -8.00 | 1.7 |
210 | 0.00 | 10.7 |
300 | -2.00 | 6.8 |
| 35 | -1.00 | 8.5 |
125 | -8.00 | 1.7 |
215 | 0.00 | 10.7 |
305 | -2.00 | 6.8 |
| 40 | -1.00 | 8.5 |
130 | -8.00 | 1.7 |
220 | 0.00 | 10.7 |
310 | -1.00 | 8.5 |
| 45 | -2.00 | 6.8 |
135 | -8.00 | 1.7 |
225 | 0.00 | 10.7 |
315 | -1.00 | 8.5 |
| 50 | -2.00 | 6.8 |
140 | -8.00 | 1.7 |
230 | 0.00 | 10.7 |
320 | -1.00 | 8.5 |
| 55 | -3.00 | 5.4 |
145 | -8.00 | 1.7 |
235 | 0.00 | 10.7 |
325 | -1.00 | 8.5 |
| 60 | -4.00 | 4.3 |
150 | -7.00 | 2.1 |
240 | 0.00 | 10.7 |
330 | -1.00 | 8.5 |
| 65 | -5.00 | 3.4 |
155 | -7.00 | 2.1 |
245 | 0.00 | 10.7 |
335 | 0.00 | 10.7 |
| 70 | -6.00 | 2.7 |
160 | -7.00 | 2.1 |
250 | 0.00 | 10.7 |
340 | 0.00 | 10.7 |
| 75 | -6.00 | 2.7 |
165 | -6.00 | 2.7 |
255 | 0.00 | 10.7 |
345 | 0.00 | 10.7 |
| 80 | -7.00 | 2.1 |
170 | -6.00 | 2.7 |
260 | 0.00 | 10.7 |
350 | 0.00 | 10.7 |
| 85 | -7.00 | 2.1 |
175 | -5.00 | 3.4 |
265 | 0.00 | 10.7 |
355 | 0.00 | 10.7 |
|
| Limited to proposed parameters including the antenna pattern (domestic). |
| Limité aux paramètres proposés incluant le patron d'antenne (domestique).
|
|
|
| Broadcasting Certificate effective date | 07/21/2023 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2030 | | Application received | 07/08/2020 | | On-air date | 06/30/2023 |
|
