Industry Canada File Number: 7987
Channel/Class: 259B (99.7)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 53 0' 32.04" N 78 45' 0.00" W
Site Elevation: 81 m
| Effective Radiated Power |
7.45 kW |
0 kW |
| Maximum Effective Radiated Power |
24.65 kW |
0 kW |
| Height Above Average Terrain |
110m |
0m |
| Radiation Center Above Ground Level |
56m |
0m |
| Radiation Center Above Mean Sea Level |
137m |
0m |
Overall Antenna Height Above Ground: 60 m

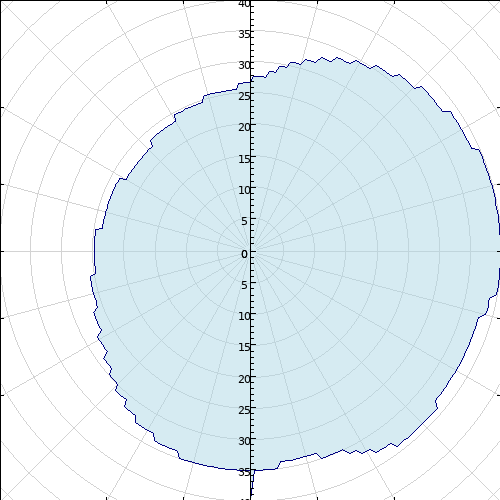

Antenna Type: Directional
Antenna System ID: 3738
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -13.00 | 1.2 |
90 | 0.00 | 24.7 |
180 | -5.00 | 7.8 |
270 | -15.00 | 0.8 |
| 5 | -12.00 | 1.6 |
95 | 0.00 | 24.7 |
185 | -5.00 | 7.8 |
275 | -15.00 | 0.8 |
| 10 | -10.00 | 2.5 |
100 | 0.00 | 24.7 |
190 | -5.00 | 7.8 |
280 | -16.00 | 0.6 |
| 15 | -9.00 | 3.1 |
105 | -1.00 | 19.6 |
195 | -5.00 | 7.8 |
285 | -16.00 | 0.6 |
| 20 | -7.00 | 4.9 |
110 | -2.00 | 15.6 |
200 | -6.00 | 6.2 |
290 | -16.00 | 0.6 |
| 25 | -6.00 | 6.2 |
115 | -2.00 | 15.6 |
205 | -6.00 | 6.2 |
295 | -16.00 | 0.6 |
| 30 | -5.00 | 7.8 |
120 | -2.00 | 15.6 |
210 | -7.00 | 4.9 |
300 | -17.00 | 0.5 |
| 35 | -4.00 | 9.8 |
125 | -2.00 | 15.6 |
215 | -8.00 | 3.9 |
305 | -17.00 | 0.5 |
| 40 | -3.00 | 12.4 |
130 | -1.00 | 19.6 |
220 | -9.00 | 3.1 |
310 | -17.00 | 0.5 |
| 45 | -3.00 | 12.4 |
135 | -1.00 | 19.6 |
225 | -10.00 | 2.5 |
315 | -17.00 | 0.5 |
| 50 | -2.00 | 15.6 |
140 | -1.00 | 19.6 |
230 | -11.00 | 2.0 |
320 | -16.00 | 0.6 |
| 55 | -1.00 | 19.6 |
145 | -2.00 | 15.6 |
235 | -12.00 | 1.6 |
325 | -16.00 | 0.6 |
| 60 | -1.00 | 19.6 |
150 | -3.00 | 12.4 |
240 | -12.00 | 1.6 |
330 | -16.00 | 0.6 |
| 65 | -1.00 | 19.6 |
155 | -5.00 | 7.8 |
245 | -13.00 | 1.2 |
335 | -15.00 | 0.8 |
| 70 | 0.00 | 24.7 |
160 | -5.00 | 7.8 |
250 | -14.00 | 1.0 |
340 | -15.00 | 0.8 |
| 75 | 0.00 | 24.7 |
165 | -6.00 | 6.2 |
255 | -14.00 | 1.0 |
345 | -14.00 | 1.0 |
| 80 | 0.00 | 24.7 |
170 | -6.00 | 6.2 |
260 | -14.00 | 1.0 |
350 | -14.00 | 1.0 |
| 85 | 0.00 | 24.7 |
175 | -5.00 | 7.8 |
265 | -15.00 | 0.8 |
355 | -14.00 | 1.0 |
|
|
| Broadcasting Certificate effective date | 10/15/2013 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2027 | | Application received | 04/08/2010 | | Letter of Authorization issued | 12/01/2010 | | On-air date | 10/07/2013 |
|
