Industry Canada File Number: 6346
CRTC Decision Number: 970124
Channel/Class: 231C (94.1)
Broadcasting Mode: Stereo
Status:
NAD83 Coordinates: 45 28' 41.16" N 66 14' 0.96" W
Short Spacing Code: #
Site Elevation: 445 m
| Effective Radiated Power |
5.8 kW |
0 kW |
| Maximum Effective Radiated Power |
11.5 kW |
0 kW |
| Height Above Average Terrain |
382m |
0m |
| Radiation Center Above Ground Level |
43m |
0m |
| Radiation Center Above Mean Sea Level |
488m |
0m |
Overall Antenna Height Above Ground: 55 m

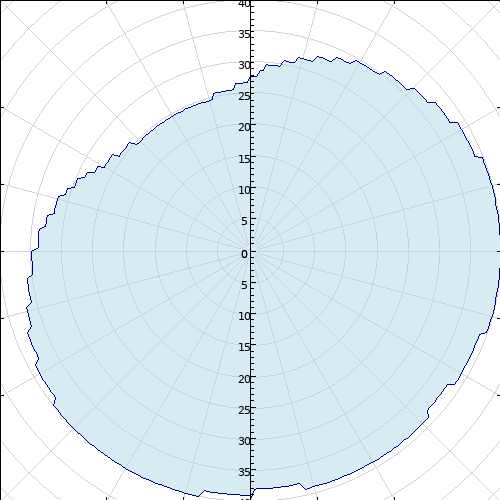

Antenna Type: Directional
Antenna System ID: 5507
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -12.00 | 0.7 |
90 | 0.00 | 11.5 |
180 | -1.00 | 9.1 |
270 | -5.00 | 3.6 |
| 5 | -10.00 | 1.2 |
95 | 0.00 | 11.5 |
185 | -1.00 | 9.1 |
275 | -6.00 | 2.9 |
| 10 | -9.00 | 1.4 |
100 | 0.00 | 11.5 |
190 | -1.00 | 9.1 |
280 | -7.00 | 2.3 |
| 15 | -8.00 | 1.8 |
105 | 0.00 | 11.5 |
195 | 0.00 | 11.5 |
285 | -8.00 | 1.8 |
| 20 | -7.00 | 2.3 |
110 | -1.00 | 9.1 |
200 | 0.00 | 11.5 |
290 | -10.00 | 1.2 |
| 25 | -6.00 | 2.9 |
115 | -1.00 | 9.1 |
205 | 0.00 | 11.5 |
295 | -11.00 | 0.9 |
| 30 | -5.00 | 3.6 |
120 | -1.00 | 9.1 |
210 | 0.00 | 11.5 |
300 | -13.00 | 0.6 |
| 35 | -5.00 | 3.6 |
125 | -2.00 | 7.3 |
215 | 0.00 | 11.5 |
305 | -13.00 | 0.6 |
| 40 | -4.00 | 4.6 |
130 | -2.00 | 7.3 |
220 | 0.00 | 11.5 |
310 | -14.00 | 0.5 |
| 45 | -3.00 | 5.8 |
135 | -1.00 | 9.1 |
225 | 0.00 | 11.5 |
315 | -15.00 | 0.4 |
| 50 | -3.00 | 5.8 |
140 | -1.00 | 9.1 |
230 | 0.00 | 11.5 |
320 | -15.00 | 0.4 |
| 55 | -2.00 | 7.3 |
145 | -1.00 | 9.1 |
235 | -1.00 | 9.1 |
325 | -15.00 | 0.4 |
| 60 | -1.00 | 9.1 |
150 | -1.00 | 9.1 |
240 | -1.00 | 9.1 |
330 | -15.00 | 0.4 |
| 65 | -1.00 | 9.1 |
155 | -1.00 | 9.1 |
245 | -2.00 | 7.3 |
335 | -15.00 | 0.4 |
| 70 | 0.00 | 11.5 |
160 | -1.00 | 9.1 |
250 | -2.00 | 7.3 |
340 | -15.00 | 0.4 |
| 75 | 0.00 | 11.5 |
165 | -1.00 | 9.1 |
255 | -3.00 | 5.8 |
345 | -15.00 | 0.4 |
| 80 | 0.00 | 11.5 |
170 | -2.00 | 7.3 |
260 | -4.00 | 4.6 |
350 | -14.00 | 0.5 |
| 85 | 0.00 | 11.5 |
175 | -2.00 | 7.3 |
265 | -5.00 | 3.6 |
355 | -13.00 | 0.6 |
|
|
| Broadcasting Certificate effective date | 03/24/2020 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2031 | | Application received | 03/17/2020 | | Letter of Authorization issued | 04/16/1997 | | On-air date | 07/08/1998 |
|
