Industry Canada File Number: 6665
CRTC Decision Number: 120490
Channel/Class: 272C1 (102.3)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 42 56' 58.92" N 81 15' 51.84" W
Short Spacing Code: * #LI
Site Elevation: 279 m
Subsidiary Carrier Multiple Operation
| Effective Radiated Power |
20.4 kW |
20.4 kW |
| Maximum Effective Radiated Power |
100 kW |
100 kW |
| Height Above Average Terrain |
128m |
128m |
| Radiation Center Above Ground Level |
112m |
112m |
| Radiation Center Above Mean Sea Level |
391m |
391m |
Overall Antenna Height Above Ground: 298 m

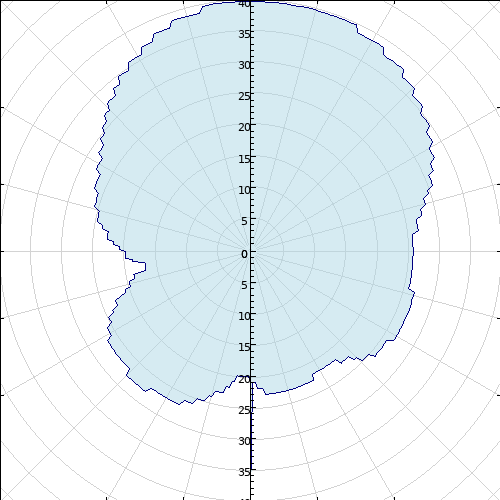

Antenna Type: Directional
Antenna System ID: 3428
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | 0.00 | 100.0 |
90 | -14.00 | 4.0 |
180 | -19.00 | 1.3 |
270 | -20.00 | 1.0 |
| 5 | 0.00 | 100.0 |
95 | -14.00 | 4.0 |
185 | -20.00 | 1.0 |
275 | -17.00 | 2.0 |
| 10 | 0.00 | 100.0 |
100 | -14.00 | 4.0 |
190 | -18.00 | 1.6 |
280 | -16.00 | 2.5 |
| 15 | 0.00 | 100.0 |
105 | -13.00 | 5.0 |
195 | -16.00 | 2.5 |
285 | -15.00 | 3.2 |
| 20 | 0.00 | 100.0 |
110 | -13.00 | 5.0 |
200 | -15.00 | 3.2 |
290 | -14.00 | 4.0 |
| 25 | 0.00 | 100.0 |
115 | -13.00 | 5.0 |
205 | -13.00 | 5.0 |
295 | -13.00 | 5.0 |
| 30 | -1.00 | 79.4 |
120 | -13.00 | 5.0 |
210 | -13.00 | 5.0 |
300 | -12.00 | 6.3 |
| 35 | -2.00 | 63.1 |
125 | -14.00 | 4.0 |
215 | -13.00 | 5.0 |
305 | -11.00 | 7.9 |
| 40 | -2.00 | 63.1 |
130 | -14.00 | 4.0 |
220 | -12.00 | 6.3 |
310 | -9.00 | 12.6 |
| 45 | -3.00 | 50.1 |
135 | -16.00 | 2.5 |
225 | -12.00 | 6.3 |
315 | -8.00 | 15.8 |
| 50 | -4.00 | 39.8 |
140 | -17.00 | 2.0 |
230 | -13.00 | 5.0 |
320 | -6.00 | 25.1 |
| 55 | -5.00 | 31.6 |
145 | -18.00 | 1.6 |
235 | -13.00 | 5.0 |
325 | -5.00 | 31.6 |
| 60 | -7.00 | 20.0 |
150 | -18.00 | 1.6 |
240 | -14.00 | 4.0 |
330 | -4.00 | 39.8 |
| 65 | -8.00 | 15.8 |
155 | -17.00 | 2.0 |
245 | -15.00 | 3.2 |
335 | -3.00 | 50.1 |
| 70 | -9.00 | 12.6 |
160 | -17.00 | 2.0 |
250 | -17.00 | 2.0 |
340 | -2.00 | 63.1 |
| 75 | -11.00 | 7.9 |
165 | -17.00 | 2.0 |
255 | -20.00 | 1.0 |
345 | -1.00 | 79.4 |
| 80 | -13.00 | 5.0 |
170 | -17.00 | 2.0 |
260 | -23.00 | 0.5 |
350 | 0.00 | 100.0 |
| 85 | -14.00 | 4.0 |
175 | -18.00 | 1.6 |
265 | -21.00 | 0.8 |
355 | 0.00 | 100.0 |
|
| 27.1 kW and 116.8 m twd 271C1 Brampton, ON Az. 62.5° 19.1 kW and 140.2 m twd 272A Windsor, ON Az. 343.9° 90 kW and 123.2 m twd 273A Shelburne, ON Az. 31.5° 100 kW and 280 m twd 271B Cleveland, OH Az. 191.8° 100 kW and 200 m twd 271B Bad Axe, MI Az. 305.5° 4.7 kW and 124 m Az. 296° and 2.2 kW and 137 m Az. 256° twd 272B1 Port Huron, MI 7.3 kW and 131 m twd 272B1 Erie, PA Az. 156° 100 kW and 240 m twd 273A Edgewood, OH Az. 163.7° |
| 27.1 kW et 116.8 m dir. 271C1 Brampton, ON Az. 62.5° 19.1 kW et 140.2 m dir. 272A Windsor, ON Az. 343.9° 90 kW et 123.2 m dir. 273A Shelburne, ON Az. 31.5° 100 kW et 280 m dir. 271B Cleveland, OH Az. 191.8° 100 kW et 200 m dir. 271B Bad Axe, MI Az. 305.5° 4.7 kW et 124 m Az. 296° and 2.2 kW and 137 m Az. 256° dir. 272B1 Port Huron, MI 7.3 kW et 131 m dir. 272B1 Erie, PA Az. 156° 100 kW et 240 m dir. 273A Edgewood, OH Az. 163.7°
|
|
|
| Broadcasting Certificate effective date | 07/16/2013 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2026 | | International coordination request sent | 05/25/2012 | | International coordination reply received | 06/18/2012 | | Application received | 07/28/2011 | | Letter of Authorization issued | 09/17/2012 | | On-air date | 01/07/2013 | | CRTC letter date | 01/09/2012 | | CRTC hearing date | 09/12/2012 |
|
