Industry Canada File Number: 8073
Channel/Class: 284B1 (104.7)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 43 6' 5.04" N 80 46' 17.04" W
Short Spacing Code: LI
Site Elevation: 356 m
| Effective Radiated Power |
8.95 kW |
8.95 kW |
| Maximum Effective Radiated Power |
20 kW |
20 kW |
| Height Above Average Terrain |
99m |
99m |
| Radiation Center Above Ground Level |
47m |
47m |
| Radiation Center Above Mean Sea Level |
403m |
403m |
Overall Antenna Height Above Ground: 75 m

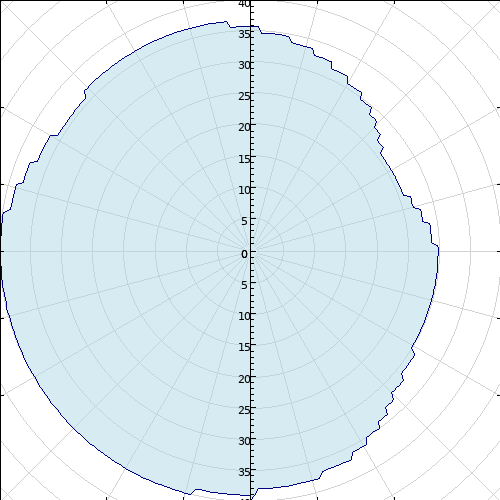

Antenna Type: Directional
Antenna System ID: 5308
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -4.00 | 8.0 |
90 | -10.00 | 2.0 |
180 | -1.00 | 15.9 |
270 | 0.00 | 20.0 |
| 5 | -5.00 | 6.3 |
95 | -10.00 | 2.0 |
185 | -1.00 | 15.9 |
275 | 0.00 | 20.0 |
| 10 | -5.00 | 6.3 |
100 | -10.00 | 2.0 |
190 | -1.00 | 15.9 |
280 | -1.00 | 15.9 |
| 15 | -6.00 | 5.0 |
105 | -10.00 | 2.0 |
195 | 0.00 | 20.0 |
285 | -1.00 | 15.9 |
| 20 | -7.00 | 4.0 |
110 | -10.00 | 2.0 |
200 | 0.00 | 20.0 |
290 | -2.00 | 12.6 |
| 25 | -8.00 | 3.2 |
115 | -10.00 | 2.0 |
205 | 0.00 | 20.0 |
295 | -3.00 | 10.0 |
| 30 | -9.00 | 2.5 |
120 | -10.00 | 2.0 |
210 | 0.00 | 20.0 |
300 | -3.00 | 10.0 |
| 35 | -9.00 | 2.5 |
125 | -9.00 | 2.5 |
215 | 0.00 | 20.0 |
305 | -4.00 | 8.0 |
| 40 | -10.00 | 2.0 |
130 | -8.00 | 3.2 |
220 | 0.00 | 20.0 |
310 | -4.00 | 8.0 |
| 45 | -12.00 | 1.3 |
135 | -8.00 | 3.2 |
225 | 0.00 | 20.0 |
315 | -3.00 | 10.0 |
| 50 | -13.00 | 1.0 |
140 | -6.00 | 5.0 |
230 | 0.00 | 20.0 |
320 | -3.00 | 10.0 |
| 55 | -14.00 | 0.8 |
145 | -5.00 | 6.3 |
235 | 0.00 | 20.0 |
325 | -3.00 | 10.0 |
| 60 | -14.00 | 0.8 |
150 | -4.00 | 8.0 |
240 | 0.00 | 20.0 |
330 | -3.00 | 10.0 |
| 65 | -14.00 | 0.8 |
155 | -3.00 | 10.0 |
245 | 0.00 | 20.0 |
335 | -3.00 | 10.0 |
| 70 | -14.00 | 0.8 |
160 | -3.00 | 10.0 |
250 | 0.00 | 20.0 |
340 | -3.00 | 10.0 |
| 75 | -13.00 | 1.0 |
165 | -2.00 | 12.6 |
255 | 0.00 | 20.0 |
345 | -3.00 | 10.0 |
| 80 | -12.00 | 1.3 |
170 | -2.00 | 12.6 |
260 | 0.00 | 20.0 |
350 | -3.00 | 10.0 |
| 85 | -11.00 | 1.6 |
175 | -2.00 | 12.6 |
265 | 0.00 | 20.0 |
355 | -4.00 | 8.0 |
|
| Proposed parameters towards channel 283C1 in Toronto, ON along the azimuths from 17.5° to 105.5°; towards channel 284A*(L72) in Sarnia, ON along the azimuths from 250° to 278.5°; 9.6 kW ERP and 83.3 m HAAT or equivalent towards channel 285B1(L) in Goderich, ON (Az.=310.6°; 13.5 kW ERP and 90.6 m HAAT or equivalent towards channel 284A in Geneva, OH (Az.=176.5°); |
| Limité aux paramètres proposés vers 283C1 Toronto, ON au long les az. de 17.5° à 105.5°; Limité aux paramètres proposés vers 284A*(L72) Sarnia, ON au long les az. de 250° to 278.5°; Limité à 9.6kW PAR et 83.3 m HASM ou l¿équivalent vers 285B1(L) Goderich, ON (Az.=310.6°); Limité à 13.5 kW PAR et 90.6 m HASM ou l¿équivalent vers 284A Geneva, OH (Az.=176.5°).
|
|
|
| Broadcasting Certificate effective date | 09/13/2019 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2026 | | Application received | 06/03/2019 | | Letter of Authorization issued | 11/14/2011 | | On-air date | 06/22/2012 | | CRTC letter date | 02/04/2011 | | CRTC hearing date | 11/10/2011 |
|
