Industry Canada File Number: 3953
CRTC Decision Number: 870195
Channel/Class: 204C1 (88.7)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 42 10' 14.88" N 82 59' 29.04" W
REC measured distance to USA: 12.6 km - 255.3
Short Spacing Code: * #LI
Site Elevation: 183 m
Subsidiary Carrier Multiple Operation
| Effective Radiated Power |
78.2 kW |
78.2 kW |
| Maximum Effective Radiated Power |
100 kW |
100 kW |
| Height Above Average Terrain |
188.5m |
188.5m |
| Radiation Center Above Ground Level |
190m |
190m |
| Radiation Center Above Mean Sea Level |
373m |
373m |
Overall Antenna Height Above Ground: 210 m

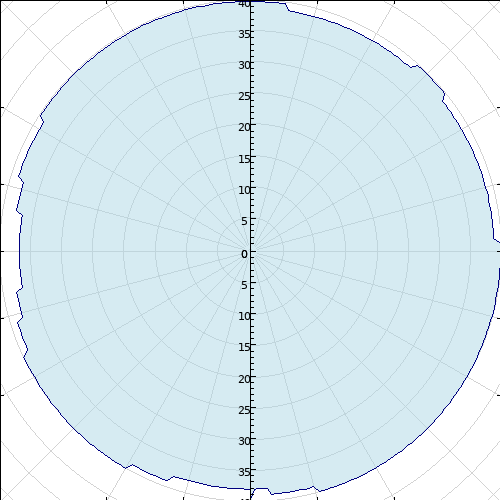

Antenna Type: Directional
Antenna System ID: 4925
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -0.40 | 91.2 |
90 | -0.85 | 82.2 |
180 | -2.40 | 57.5 |
270 | -3.90 | 40.7 |
| 5 | -0.75 | 84.1 |
95 | -0.60 | 87.1 |
185 | -2.62 | 54.7 |
275 | -3.65 | 43.2 |
| 10 | -1.10 | 77.6 |
100 | -0.40 | 91.2 |
190 | -2.68 | 54.0 |
280 | -3.00 | 50.1 |
| 15 | -1.35 | 73.3 |
105 | -0.20 | 95.5 |
195 | -2.50 | 56.2 |
285 | -2.35 | 58.2 |
| 20 | -1.60 | 69.2 |
110 | -0.14 | 96.9 |
200 | -1.95 | 63.8 |
290 | -1.75 | 66.8 |
| 25 | -1.63 | 68.8 |
115 | -0.13 | 97.1 |
205 | -1.40 | 72.4 |
295 | -1.30 | 74.1 |
| 30 | -1.51 | 70.7 |
120 | -0.20 | 95.5 |
210 | -0.95 | 80.3 |
300 | -1.05 | 78.5 |
| 35 | -1.28 | 74.5 |
125 | -0.35 | 92.2 |
215 | -0.50 | 89.1 |
305 | -0.95 | 80.4 |
| 40 | -1.05 | 78.5 |
130 | -0.50 | 89.1 |
220 | -0.25 | 94.4 |
310 | -0.82 | 82.7 |
| 45 | -0.90 | 81.3 |
135 | -0.70 | 85.1 |
225 | -0.10 | 97.7 |
315 | -0.70 | 85.1 |
| 50 | -0.95 | 80.3 |
140 | -0.72 | 84.8 |
230 | -0.03 | 99.3 |
320 | -0.55 | 88.1 |
| 55 | -1.13 | 77.1 |
145 | -0.73 | 84.4 |
235 | -0.15 | 96.6 |
325 | -0.40 | 91.2 |
| 60 | -1.30 | 74.1 |
150 | -0.75 | 84.1 |
240 | -0.40 | 91.2 |
330 | -0.23 | 94.8 |
| 65 | -1.48 | 71.1 |
155 | -0.75 | 84.1 |
245 | -0.90 | 81.3 |
335 | -0.09 | 98.0 |
| 70 | -1.66 | 68.2 |
160 | -0.80 | 83.2 |
250 | -1.59 | 69.4 |
340 | -0.03 | 99.2 |
| 75 | -1.61 | 69.0 |
165 | -1.00 | 79.4 |
255 | -2.28 | 59.1 |
345 | -0.02 | 99.5 |
| 80 | -1.50 | 70.8 |
170 | -1.40 | 72.4 |
260 | -2.99 | 50.2 |
350 | -0.08 | 98.2 |
| 85 | -1.18 | 76.3 |
175 | -1.90 | 64.5 |
265 | -3.70 | 42.7 |
355 | -0.21 | 95.2 |
|
| Educational Channels to be used as commercial. |
| Canal à but educatif assigné pour buts commerciaux. |
|
|
| Broadcasting Certificate effective date | 09/01/2014 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 09/01/2021 | | Application received | 10/29/1986 | | Letter of Authorization issued | 07/14/1987 | | On-air date | 08/31/1987 |
|
