Industry Canada File Number: 2812
Channel/Class: 253C (98.5)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 48 25' 17.04" N 123 30' 39.60" W
Site Elevation: 206 m
| Effective Radiated Power |
47 kW |
47 kW |
| Maximum Effective Radiated Power |
100 kW |
100 kW |
| Height Above Average Terrain |
147m |
147m |
| Radiation Center Above Ground Level |
49m |
49m |
| Radiation Center Above Mean Sea Level |
255m |
255m |
Overall Antenna Height Above Ground: 61 m

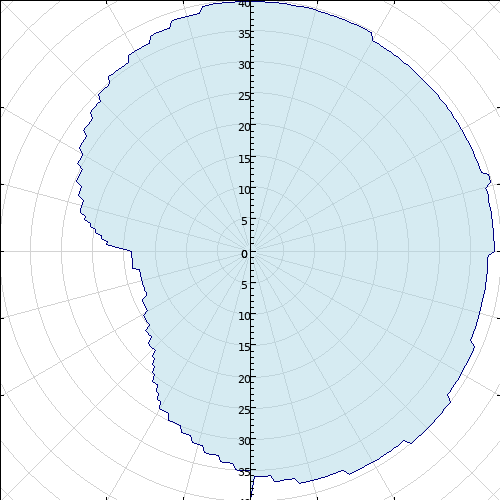

Antenna Type: Directional
Antenna System ID: 6471
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | 0.00 | 100.0 |
90 | -1.00 | 79.4 |
180 | -5.00 | 31.6 |
270 | -21.00 | 0.8 |
| 5 | 0.00 | 100.0 |
95 | -2.00 | 63.1 |
185 | -6.00 | 25.1 |
275 | -16.00 | 2.5 |
| 10 | 0.00 | 100.0 |
100 | -2.00 | 63.1 |
190 | -7.00 | 20.0 |
280 | -14.00 | 4.0 |
| 15 | 0.00 | 100.0 |
105 | -2.00 | 63.1 |
195 | -8.00 | 15.8 |
285 | -12.00 | 6.3 |
| 20 | 0.00 | 100.0 |
110 | -2.00 | 63.1 |
200 | -9.00 | 12.6 |
290 | -11.00 | 7.9 |
| 25 | 0.00 | 100.0 |
115 | -1.00 | 79.4 |
205 | -10.00 | 10.0 |
295 | -10.00 | 10.0 |
| 30 | -1.00 | 79.4 |
120 | -1.00 | 79.4 |
210 | -11.00 | 7.9 |
300 | -9.00 | 12.6 |
| 35 | -1.00 | 79.4 |
125 | -1.00 | 79.4 |
215 | -14.00 | 4.0 |
305 | -8.00 | 15.8 |
| 40 | -1.00 | 79.4 |
130 | 0.00 | 100.0 |
220 | -16.00 | 2.5 |
310 | -7.00 | 20.0 |
| 45 | -1.00 | 79.4 |
135 | 0.00 | 100.0 |
225 | -18.00 | 1.6 |
315 | -6.00 | 25.1 |
| 50 | -1.00 | 79.4 |
140 | 0.00 | 100.0 |
230 | -19.00 | 1.3 |
320 | -5.00 | 31.6 |
| 55 | -1.00 | 79.4 |
145 | -1.00 | 79.4 |
235 | -20.00 | 1.0 |
325 | -4.00 | 39.8 |
| 60 | -1.00 | 79.4 |
150 | -1.00 | 79.4 |
240 | -21.00 | 0.8 |
330 | -3.00 | 50.1 |
| 65 | -1.00 | 79.4 |
155 | -1.00 | 79.4 |
245 | -21.00 | 0.8 |
335 | -2.00 | 63.1 |
| 70 | -1.00 | 79.4 |
160 | -2.00 | 63.1 |
250 | -22.00 | 0.6 |
340 | -2.00 | 63.1 |
| 75 | -1.00 | 79.4 |
165 | -2.00 | 63.1 |
255 | -22.00 | 0.6 |
345 | -1.00 | 79.4 |
| 80 | -1.00 | 79.4 |
170 | -3.00 | 50.1 |
260 | -22.00 | 0.6 |
350 | 0.00 | 100.0 |
| 85 | -1.00 | 79.4 |
175 | -4.00 | 39.8 |
265 | -21.00 | 0.8 |
355 | 0.00 | 100.0 |
|
|
| Broadcasting Certificate effective date | 12/20/2023 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2025 | | Application received | 07/10/2023 | | Letter of Authorization issued | 06/10/2000 | | On-air date | 08/29/2000 | | CRTC letter date | 11/25/1998 | | CRTC hearing date | 05/28/1999 |
|
