Industry Canada File Number: 3298
CRTC Decision Number: 20130
Channel/Class: 298B (107.5)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 49 20' 39.84" N 123 23' 13.20" W
Short Spacing Code: #LI
Site Elevation: 320 m
| Effective Radiated Power |
0.82 kW |
0 kW |
| Maximum Effective Radiated Power |
4.6 kW |
0 kW |
| Height Above Average Terrain |
287m |
0m |
| Radiation Center Above Ground Level |
19m |
0m |
| Radiation Center Above Mean Sea Level |
339m |
0m |
Overall Antenna Height Above Ground: 30 m

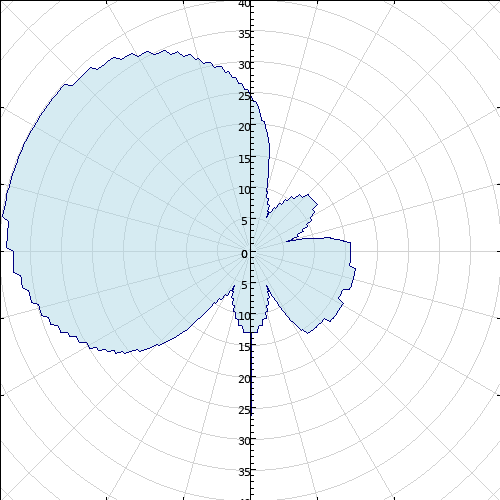

Antenna Type: Directional
Antenna System ID: 4004
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -15.00 | 0.145 |
90 | -24.00 | 0.018 |
180 | -27.00 | 0.009 |
270 | -2.00 | 2.902 |
| 5 | -19.00 | 0.058 |
95 | -24.00 | 0.018 |
185 | -27.00 | 0.009 |
275 | -1.00 | 3.654 |
| 10 | -23.00 | 0.023 |
100 | -23.00 | 0.023 |
190 | -29.00 | 0.006 |
280 | 0.00 | 4.600 |
| 15 | -30.00 | 0.005 |
105 | -23.00 | 0.023 |
195 | -30.00 | 0.005 |
285 | 0.00 | 4.600 |
| 20 | -32.00 | 0.003 |
110 | -23.00 | 0.023 |
200 | -32.00 | 0.003 |
290 | 0.00 | 4.600 |
| 25 | -34.00 | 0.002 |
115 | -24.00 | 0.018 |
205 | -34.00 | 0.002 |
295 | 0.00 | 4.600 |
| 30 | -32.00 | 0.003 |
120 | -23.00 | 0.023 |
210 | -32.00 | 0.003 |
300 | 0.00 | 4.600 |
| 35 | -30.00 | 0.005 |
125 | -23.00 | 0.023 |
215 | -30.00 | 0.005 |
305 | 0.00 | 4.600 |
| 40 | -29.00 | 0.006 |
130 | -23.00 | 0.023 |
220 | -23.00 | 0.023 |
310 | 0.00 | 4.600 |
| 45 | -27.00 | 0.009 |
135 | -24.00 | 0.018 |
225 | -19.00 | 0.058 |
315 | -1.00 | 3.654 |
| 50 | -27.00 | 0.009 |
140 | -24.00 | 0.018 |
230 | -15.00 | 0.145 |
320 | -2.00 | 2.902 |
| 55 | -27.00 | 0.009 |
145 | -24.00 | 0.018 |
235 | -12.00 | 0.290 |
325 | -2.00 | 2.902 |
| 60 | -29.00 | 0.006 |
150 | -27.00 | 0.009 |
240 | -10.00 | 0.460 |
330 | -4.00 | 1.831 |
| 65 | -30.00 | 0.005 |
155 | -34.00 | 0.002 |
245 | -8.00 | 0.729 |
335 | -5.00 | 1.455 |
| 70 | -32.00 | 0.003 |
160 | -32.00 | 0.003 |
250 | -6.00 | 1.155 |
340 | -6.00 | 1.155 |
| 75 | -34.00 | 0.002 |
165 | -30.00 | 0.005 |
255 | -5.00 | 1.455 |
345 | -8.00 | 0.729 |
| 80 | -27.00 | 0.009 |
170 | -29.00 | 0.006 |
260 | -4.00 | 1.831 |
350 | -10.00 | 0.460 |
| 85 | -24.00 | 0.018 |
175 | -27.00 | 0.009 |
265 | -2.00 | 2.902 |
355 | -12.00 | 0.290 |
|
| Limited to 0.081 kW and 339 metres towards 297B Victoria, BC. (AZ 185.1°) Limited to 12 kW and 230 metres towards 297A Powell River, BC. (AZ 298.7°) Limited to 2.8 kW and 241 metres towards 300A Squamish, BC. (AZ 20.6°) Limited to 110 W and 300.5 metres towards 298A Chilliwack, BC (Az. 102.6°) |
| Limité à 0.081 kW et 339 mètres vers 297B Victoria, BC. (AZ 185.1°) Limité à 12 kW et 230 mètres vers 297A Powell River, BC. (AZ 298.7°) Limité à 2.8 kW et 241 mètres vers 300A Squamish, BC. (AZ 20.6°) Limité à 110 W et 300.5 mètres vers 298A Chilliwack, BC (Az. 102.6°)
|
|
|
| Broadcasting Certificate effective date | 09/01/2013 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2027 | | International coordination request sent | 11/06/2001 | | Application received | 06/21/2001 | | Letter of Authorization issued | 07/08/2002 | | On-air date | 04/07/2003 | | CRTC letter date | 08/01/2001 | | CRTC hearing date | 05/07/2002 |
|
