Industry Canada File Number: 3822
CRTC Decision Number: 840409
Channel/Class: 287C1 (105.3)
Broadcasting Mode: Stereo
Status:
NAD83 Coordinates: 45 13' 0.84" N 75 33' 50.04" W
REC measured distance to USA: 44.2 km - 144.2
Site Elevation: 89 m
| Effective Radiated Power |
0 kW |
6.345 kW |
| Maximum Effective Radiated Power |
0 kW |
20 kW |
| Height Above Average Terrain |
0m |
149.3m |
| Radiation Center Above Ground Level |
0m |
149m |
| Radiation Center Above Mean Sea Level |
0m |
238m |
Overall Antenna Height Above Ground: 225 m

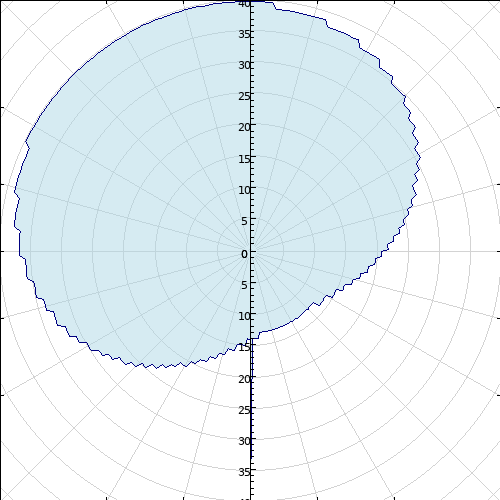

Antenna Type: Directional
Antenna System ID: 5431
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -0.72 | 16.9 |
90 | -19.09 | 0.2 |
180 | -26.38 | 0.0 |
270 | -3.77 | 8.4 |
| 5 | -0.98 | 15.9 |
95 | -20.63 | 0.2 |
185 | -25.68 | 0.1 |
275 | -3.02 | 10.0 |
| 10 | -1.31 | 14.8 |
100 | -21.94 | 0.1 |
190 | -24.73 | 0.1 |
280 | -2.40 | 11.5 |
| 15 | -1.70 | 13.5 |
105 | -23.22 | 0.1 |
195 | -23.74 | 0.1 |
285 | -1.86 | 13.0 |
| 20 | -2.18 | 12.1 |
110 | -24.29 | 0.1 |
200 | -22.50 | 0.1 |
290 | -1.40 | 14.5 |
| 25 | -2.72 | 10.7 |
115 | -25.19 | 0.1 |
205 | -21.21 | 0.2 |
295 | -1.02 | 15.8 |
| 30 | -3.36 | 9.2 |
120 | -26.02 | 0.0 |
210 | -19.66 | 0.2 |
300 | -0.71 | 17.0 |
| 35 | -4.11 | 7.8 |
125 | -26.56 | 0.0 |
215 | -18.13 | 0.3 |
305 | -0.48 | 17.9 |
| 40 | -5.01 | 6.3 |
130 | -27.13 | 0.0 |
220 | -16.59 | 0.4 |
310 | -0.29 | 18.7 |
| 45 | -5.97 | 5.1 |
135 | -27.54 | 0.0 |
225 | -14.94 | 0.6 |
315 | -0.16 | 19.3 |
| 50 | -7.05 | 3.9 |
140 | -27.74 | 0.0 |
230 | -13.31 | 0.9 |
320 | -0.06 | 19.7 |
| 55 | -8.29 | 3.0 |
145 | -27.96 | 0.0 |
235 | -11.80 | 1.3 |
325 | -0.02 | 19.9 |
| 60 | -9.63 | 2.2 |
150 | -27.96 | 0.0 |
240 | -10.37 | 1.8 |
330 | 0.00 | 20.0 |
| 65 | -11.09 | 1.6 |
155 | -27.96 | 0.0 |
245 | -9.00 | 2.5 |
335 | -0.03 | 19.8 |
| 70 | -12.65 | 1.1 |
160 | -27.96 | 0.0 |
250 | -7.74 | 3.4 |
340 | -0.09 | 19.6 |
| 75 | -14.24 | 0.8 |
165 | -27.74 | 0.0 |
255 | -6.58 | 4.4 |
345 | -0.19 | 19.1 |
| 80 | -15.92 | 0.5 |
170 | -27.33 | 0.0 |
260 | -5.53 | 5.6 |
350 | -0.33 | 18.5 |
| 85 | -17.59 | 0.3 |
175 | -26.94 | 0.0 |
265 | -4.60 | 6.9 |
355 | -0.51 | 17.8 |
|
|
| Broadcasting Certificate effective date | 11/10/2017 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 09/01/2023 | | Application received | 07/06/2017 | | Letter of Authorization issued | 05/14/1984 | | On-air date | 05/14/1984 |
|
