Industry Canada File Number: 20121
CRTC Decision Number: 230018
Channel/Class: 222A (92.3)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 49 6' 5.04" N 121 58' 40.80" W
Short Spacing Code: LI
Site Elevation: 32 m
| Effective Radiated Power |
0 kW |
1.8 kW |
| Maximum Effective Radiated Power |
0 kW |
4.32 kW |
| Height Above Average Terrain |
0m |
-334m |
| Radiation Center Above Ground Level |
0m |
26m |
| Radiation Center Above Mean Sea Level |
0m |
58m |
Overall Antenna Height Above Ground: 45 m

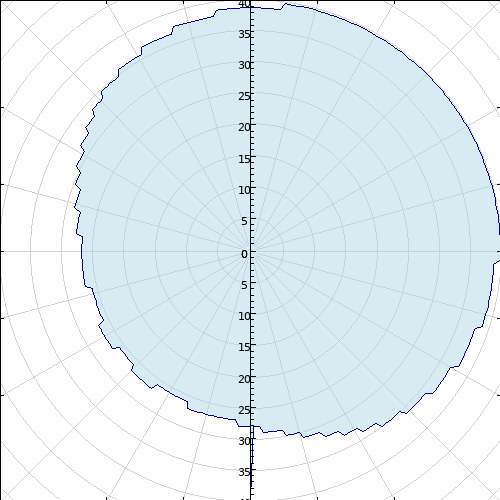

Antenna Type: Directional
Antenna System ID: 6709
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -1.00 | 3.431 |
90 | 0.00 | 4.320 |
180 | -12.00 | 0.273 |
270 | -13.00 | 0.217 |
| 5 | -1.00 | 3.431 |
95 | -1.00 | 3.431 |
185 | -13.00 | 0.217 |
275 | -13.00 | 0.217 |
| 10 | 0.00 | 4.320 |
100 | -1.00 | 3.431 |
190 | -13.00 | 0.217 |
280 | -12.00 | 0.273 |
| 15 | 0.00 | 4.320 |
105 | -1.00 | 3.431 |
195 | -13.00 | 0.217 |
285 | -11.00 | 0.343 |
| 20 | 0.00 | 4.320 |
110 | -2.00 | 2.726 |
200 | -13.00 | 0.217 |
290 | -11.00 | 0.343 |
| 25 | 0.00 | 4.320 |
115 | -2.00 | 2.726 |
205 | -14.00 | 0.172 |
295 | -10.00 | 0.432 |
| 30 | 0.00 | 4.320 |
120 | -3.00 | 2.165 |
210 | -14.00 | 0.172 |
300 | -9.00 | 0.544 |
| 35 | 0.00 | 4.320 |
125 | -3.00 | 2.165 |
215 | -14.00 | 0.172 |
305 | -8.00 | 0.685 |
| 40 | 0.00 | 4.320 |
130 | -4.00 | 1.720 |
220 | -13.00 | 0.217 |
310 | -7.00 | 0.862 |
| 45 | 0.00 | 4.320 |
135 | -4.00 | 1.720 |
225 | -13.00 | 0.217 |
315 | -6.00 | 1.085 |
| 50 | 0.00 | 4.320 |
140 | -5.00 | 1.366 |
230 | -14.00 | 0.172 |
320 | -5.00 | 1.366 |
| 55 | 0.00 | 4.320 |
145 | -6.00 | 1.085 |
235 | -13.00 | 0.217 |
325 | -4.00 | 1.720 |
| 60 | 0.00 | 4.320 |
150 | -7.00 | 0.862 |
240 | -13.00 | 0.217 |
330 | -4.00 | 1.720 |
| 65 | 0.00 | 4.320 |
155 | -8.00 | 0.685 |
245 | -14.00 | 0.172 |
335 | -3.00 | 2.165 |
| 70 | 0.00 | 4.320 |
160 | -9.00 | 0.544 |
250 | -14.00 | 0.172 |
340 | -3.00 | 2.165 |
| 75 | 0.00 | 4.320 |
165 | -10.00 | 0.432 |
255 | -14.00 | 0.172 |
345 | -2.00 | 2.726 |
| 80 | 0.00 | 4.320 |
170 | -11.00 | 0.343 |
260 | -13.00 | 0.217 |
350 | -2.00 | 2.726 |
| 85 | 0.00 | 4.320 |
175 | -11.00 | 0.343 |
265 | -13.00 | 0.217 |
355 | -1.00 | 3.431 |
|
| Limited to: 610 W and 41 m or the equivalent towards channel 221C in Victoria, BC (Az.=252.3°). 6 kW ERP and 85 m HAAT or the equivalent towards channel 222B in Penticton, BC (Az.=73.3°) proposed parameters including the antenna pattern towards channel 223A(L) in Abbotsford, BC |
| Limité à: 610 W et 41 m ou l'équivalent vers le canal 221C à Victoria, BC (Az.=252.3°). 6 kW et 85 m ou l'équivalent vers le canal 222B à Penticton, BC (Az.=73.3°) paramètres approuvés incluant le patron d'antenne vers le canal 223A(L) à Abbotsford, BC
|
|
|
| Broadcasting Certificate effective date | 09/16/2024 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2030 | | International coordination request sent | 05/31/2019 | | International coordination reply received | 06/04/2019 | | Application received | 08/12/2024 | | Letter of Authorization issued | 03/26/2020 | | On-air date | 08/14/2023 | | CRTC letter date | 04/24/2023 | | CRTC hearing date | 05/11/2023 |
|
