Industry Canada File Number: 2759
Channel/Class: 245C (96.9)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 49 21' 25.92" N 122 57' 14.40" W
Site Elevation: 941 m
| Effective Radiated Power |
32 kW |
32 kW |
| Maximum Effective Radiated Power |
70 kW |
70 kW |
| Height Above Average Terrain |
707m |
707m |
| Radiation Center Above Ground Level |
81m |
81m |
| Radiation Center Above Mean Sea Level |
1022m |
1022m |
Overall Antenna Height Above Ground: 119 m

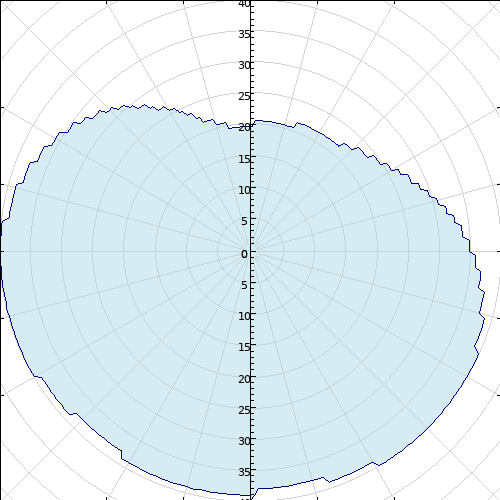

Antenna Type: Directional
Antenna System ID: 5028
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -20.00 | 0.7 |
90 | -5.00 | 22.1 |
180 | -1.00 | 55.6 |
270 | 0.00 | 70.0 |
| 5 | -19.00 | 0.9 |
95 | -3.00 | 35.1 |
185 | -1.00 | 55.6 |
275 | 0.00 | 70.0 |
| 10 | -19.00 | 0.9 |
100 | -2.00 | 44.2 |
190 | -1.00 | 55.6 |
280 | -1.00 | 55.6 |
| 15 | -19.00 | 0.9 |
105 | -2.00 | 44.2 |
195 | -1.00 | 55.6 |
285 | -1.00 | 55.6 |
| 20 | -18.00 | 1.1 |
110 | -1.00 | 55.6 |
200 | -1.00 | 55.6 |
290 | -2.00 | 44.2 |
| 25 | -18.00 | 1.1 |
115 | 0.00 | 70.0 |
205 | -1.00 | 55.6 |
295 | -3.00 | 35.1 |
| 30 | -18.00 | 1.1 |
120 | 0.00 | 70.0 |
210 | -1.00 | 55.6 |
300 | -4.00 | 27.9 |
| 35 | -18.00 | 1.1 |
125 | 0.00 | 70.0 |
215 | -2.00 | 44.2 |
305 | -5.00 | 22.1 |
| 40 | -18.00 | 1.1 |
130 | 0.00 | 70.0 |
220 | -2.00 | 44.2 |
310 | -7.00 | 14.0 |
| 45 | -17.00 | 1.4 |
135 | 0.00 | 70.0 |
225 | -2.00 | 44.2 |
315 | -8.00 | 11.1 |
| 50 | -16.00 | 1.8 |
140 | 0.00 | 70.0 |
230 | -1.00 | 55.6 |
320 | -10.00 | 7.0 |
| 55 | -15.00 | 2.2 |
145 | 0.00 | 70.0 |
235 | -1.00 | 55.6 |
325 | -12.00 | 4.4 |
| 60 | -14.00 | 2.8 |
150 | -1.00 | 55.6 |
240 | 0.00 | 70.0 |
330 | -14.00 | 2.8 |
| 65 | -12.00 | 4.4 |
155 | -1.00 | 55.6 |
245 | 0.00 | 70.0 |
335 | -16.00 | 1.8 |
| 70 | -11.00 | 5.6 |
160 | -1.00 | 55.6 |
250 | 0.00 | 70.0 |
340 | -18.00 | 1.1 |
| 75 | -9.00 | 8.8 |
165 | -2.00 | 44.2 |
255 | 0.00 | 70.0 |
345 | -19.00 | 0.9 |
| 80 | -7.00 | 14.0 |
170 | -2.00 | 44.2 |
260 | 0.00 | 70.0 |
350 | -20.00 | 0.7 |
| 85 | -6.00 | 17.6 |
175 | -2.00 | 44.2 |
265 | 0.00 | 70.0 |
355 | -20.00 | 0.7 |
|
|
| Broadcasting Certificate effective date | 01/21/2019 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2028 | | Application received | 12/24/2018 | | Letter of Authorization issued | 04/09/2013 | | On-air date | 05/16/2013 | | CRTC letter date | 12/17/2012 | | CRTC hearing date | 01/14/2013 |
|
