Industry Canada File Number: 1623 CRTC Decision Number: 160999 Channel/Class: 257B (99.3) Broadcasting Mode: Mono Status: Operational NAD83 Coordinates: 42 57' 15.84" N 81 21' 16.92" W REC measured distance to USA: 80.2 km - 166.7
Site Elevation: 291 m
Effective Radiated Power |
9.946 kW |
9.904 kW |
Maximum Effective Radiated Power |
13.73 kW |
15.34 kW |
Height Above Average Terrain |
267.2m |
267.2m |
Radiation Center Above Ground Level |
233.5m |
233.5m |
Radiation Center Above Mean Sea Level |
524.5m |
524.5m |

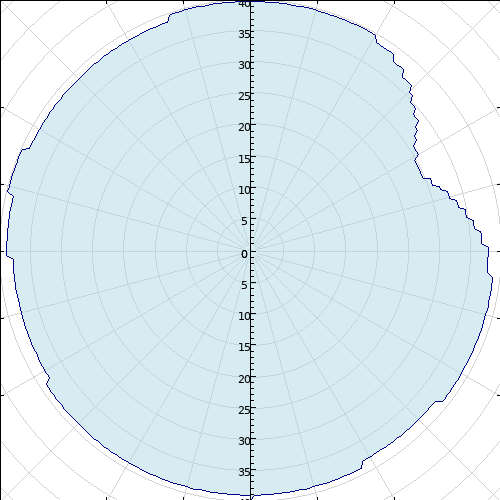

Overall Antenna Height Above Ground: 299.9 m Antenna Type: Directional Antenna System ID: 5675
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
0 | -0.53 | 13.6 |
90 | -2.79 | 8.1 |
180 | -1.45 | 11.0 |
270 | -1.86 | 10.0 |
5 | -0.25 | 14.5 |
95 | -2.03 | 9.6 |
185 | -1.62 | 10.6 |
275 | -1.46 | 11.0 |
10 | -0.06 | 15.1 |
100 | -1.56 | 10.7 |
190 | -1.68 | 10.4 |
280 | -1.15 | 11.8 |
15 | -0.02 | 15.3 |
105 | -1.31 | 11.3 |
195 | -1.80 | 10.1 |
285 | -0.97 | 12.3 |
20 | -0.11 | 15.0 |
110 | -1.24 | 11.5 |
200 | -1.96 | 9.8 |
290 | -0.92 | 12.4 |
25 | -0.36 | 14.1 |
115 | -1.37 | 11.2 |
205 | -1.91 | 9.9 |
295 | -1.02 | 12.1 |
30 | -0.85 | 12.6 |
120 | -1.53 | 10.8 |
210 | -1.83 | 10.1 |
300 | -1.09 | 11.9 |
35 | -1.67 | 10.4 |
125 | -1.76 | 10.2 |
215 | -1.73 | 10.3 |
305 | -1.32 | 11.3 |
40 | -2.80 | 8.1 |
130 | -2.08 | 9.5 |
220 | -1.66 | 10.5 |
310 | -1.45 | 11.0 |
45 | -4.26 | 5.8 |
135 | -2.42 | 8.8 |
225 | -1.63 | 10.5 |
315 | -1.58 | 10.7 |
50 | -6.13 | 3.7 |
140 | -2.75 | 8.1 |
230 | -1.69 | 10.4 |
320 | -1.78 | 10.2 |
55 | -8.24 | 2.3 |
145 | -2.63 | 8.4 |
235 | -1.88 | 10.0 |
325 | -1.71 | 10.3 |
60 | -9.93 | 1.6 |
150 | -2.18 | 9.3 |
240 | -2.08 | 9.5 |
330 | -1.52 | 10.8 |
65 | -10.57 | 1.3 |
155 | -1.81 | 10.1 |
245 | -2.32 | 9.0 |
335 | -1.28 | 11.4 |
70 | -9.21 | 1.8 |
160 | -1.53 | 10.8 |
250 | -2.60 | 8.4 |
340 | -1.02 | 12.1 |
75 | -7.11 | 3.0 |
165 | -1.36 | 11.2 |
255 | -2.84 | 8.0 |
345 | -0.77 | 12.8 |
80 | -5.32 | 4.5 |
170 | -1.34 | 11.3 |
260 | -2.84 | 8.0 |
350 | -0.57 | 13.5 |
85 | -3.86 | 6.3 |
175 | -1.43 | 11.0 |
265 | -2.37 | 8.9 |
355 | -0.53 | 13.6 |
| |
Broadcasting Certificate effective date | 06/28/2018 | Broadcasting Certificate renewal date or LOA or OATA expiry date | 09/01/2023 | Application received | 06/18/2018 | Letter of Authorization issued | 06/10/2016 | On-air date | 08/19/2016 | CRTC letter date | 03/17/2016 | CRTC hearing date | 04/20/2016 | |
