Industry Canada File Number: 3504 CRTC Decision Number: 229999 Channel/Class: 261A (100.1) Broadcasting Mode: Stereo Status: Operational NAD83 Coordinates: 60 51' 51.84" N 115 46' 4.80" W Site Elevation: 159 m
Effective Radiated Power |
1.627 kW |
1.394 kW |
Maximum Effective Radiated Power |
4.25 kW |
3.002 kW |
Height Above Average Terrain |
28m |
28m |
Radiation Center Above Ground Level |
30m |
30m |
Radiation Center Above Mean Sea Level |
189m |
189m |

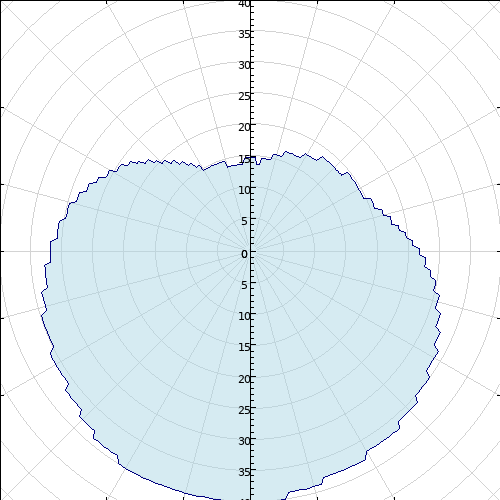

Overall Antenna Height Above Ground: 36 m Antenna Type: Directional Antenna System ID: 6160
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
0 | -25.00 | 0.013 |
90 | -13.00 | 0.213 |
180 | 0.00 | 4.250 |
270 | -8.00 | 0.674 |
5 | -26.00 | 0.011 |
95 | -12.00 | 0.268 |
185 | 0.00 | 4.250 |
275 | -9.00 | 0.535 |
10 | -25.00 | 0.013 |
100 | -10.00 | 0.425 |
190 | 0.00 | 4.250 |
280 | -10.00 | 0.425 |
15 | -24.00 | 0.017 |
105 | -9.00 | 0.535 |
195 | 0.00 | 4.250 |
285 | -10.00 | 0.425 |
20 | -23.00 | 0.021 |
110 | -8.00 | 0.674 |
200 | 0.00 | 4.250 |
290 | -12.00 | 0.268 |
25 | -23.00 | 0.021 |
115 | -7.00 | 0.848 |
205 | 0.00 | 4.250 |
295 | -13.00 | 0.213 |
30 | -22.00 | 0.027 |
120 | -6.00 | 1.068 |
210 | 0.00 | 4.250 |
300 | -14.00 | 0.169 |
35 | -22.00 | 0.027 |
125 | -5.00 | 1.344 |
215 | -1.00 | 3.376 |
305 | -16.00 | 0.107 |
40 | -21.00 | 0.034 |
130 | -5.00 | 1.344 |
220 | -1.00 | 3.376 |
310 | -18.00 | 0.067 |
45 | -21.00 | 0.034 |
135 | -4.00 | 1.692 |
225 | -2.00 | 2.682 |
315 | -20.00 | 0.043 |
50 | -21.00 | 0.034 |
140 | -3.00 | 2.130 |
230 | -3.00 | 2.130 |
320 | -21.00 | 0.034 |
55 | -20.00 | 0.043 |
145 | -3.00 | 2.130 |
235 | -4.00 | 1.692 |
325 | -23.00 | 0.021 |
60 | -20.00 | 0.043 |
150 | -3.00 | 2.130 |
240 | -4.00 | 1.692 |
330 | -25.00 | 0.013 |
65 | -20.00 | 0.043 |
155 | -2.00 | 2.682 |
245 | -5.00 | 1.344 |
335 | -25.00 | 0.013 |
70 | -19.00 | 0.054 |
160 | -2.00 | 2.682 |
250 | -5.00 | 1.344 |
340 | -25.00 | 0.013 |
75 | -18.00 | 0.067 |
165 | -1.00 | 3.376 |
255 | -6.00 | 1.068 |
345 | -26.00 | 0.011 |
80 | -16.00 | 0.107 |
170 | -1.00 | 3.376 |
260 | -7.00 | 0.848 |
350 | -26.00 | 0.011 |
85 | -15.00 | 0.134 |
175 | 0.00 | 4.250 |
265 | -7.00 | 0.848 |
355 | -26.00 | 0.011 |
| |
Broadcasting Certificate effective date | 07/16/2024 | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2030 | Application received | 04/19/2022 | Letter of Authorization issued | 12/20/2022 | On-air date | 07/20/2023 | CRTC letter date | 07/15/2024 | CRTC hearing date | 06/27/2022 | |
