Industry Canada File Number: 9881
Channel/Class: 281B (104.1)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 52 7' 50.16" N 78 10' 9.84" W
Site Elevation: 109 m
| Effective Radiated Power |
11.088 kW |
0 kW |
| Maximum Effective Radiated Power |
38.052 kW |
0 kW |
| Height Above Average Terrain |
152m |
0m |
| Radiation Center Above Ground Level |
98m |
0m |
| Radiation Center Above Mean Sea Level |
207m |
0m |
Overall Antenna Height Above Ground: 109 m

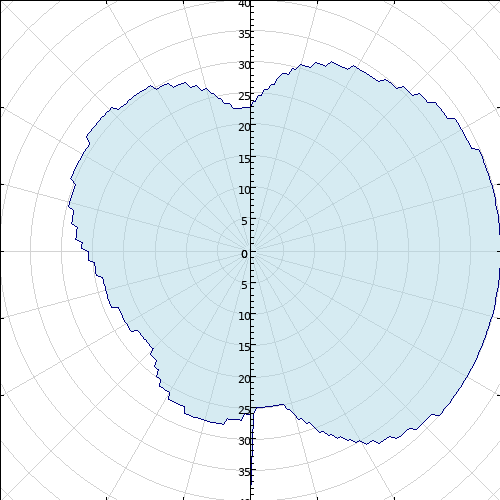

Antenna Type: Directional
Antenna System ID: 3520
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -17.00 | 0.8 |
90 | 0.00 | 38.1 |
180 | -14.00 | 1.5 |
270 | -14.00 | 1.5 |
| 5 | -14.00 | 1.5 |
95 | 0.00 | 38.1 |
185 | -13.00 | 1.9 |
275 | -12.00 | 2.4 |
| 10 | -11.00 | 3.0 |
100 | 0.00 | 38.1 |
190 | -12.00 | 2.4 |
280 | -11.00 | 3.0 |
| 15 | -9.00 | 4.8 |
105 | 0.00 | 38.1 |
195 | -12.00 | 2.4 |
285 | -10.00 | 3.8 |
| 20 | -8.00 | 6.0 |
110 | 0.00 | 38.1 |
200 | -12.00 | 2.4 |
290 | -10.00 | 3.8 |
| 25 | -7.00 | 7.6 |
115 | 0.00 | 38.1 |
205 | -13.00 | 1.9 |
295 | -9.00 | 4.8 |
| 30 | -6.00 | 9.6 |
120 | 0.00 | 38.1 |
210 | -14.00 | 1.5 |
300 | -9.00 | 4.8 |
| 35 | -6.00 | 9.6 |
125 | 0.00 | 38.1 |
215 | -15.00 | 1.2 |
305 | -8.00 | 6.0 |
| 40 | -5.00 | 12.0 |
130 | 0.00 | 38.1 |
220 | -16.00 | 1.0 |
310 | -8.00 | 6.0 |
| 45 | -4.00 | 15.1 |
135 | -1.00 | 30.2 |
225 | -18.00 | 0.6 |
315 | -8.00 | 6.0 |
| 50 | -3.00 | 19.1 |
140 | -2.00 | 24.0 |
230 | -18.00 | 0.6 |
320 | -9.00 | 4.8 |
| 55 | -2.00 | 24.0 |
145 | -3.00 | 19.1 |
235 | -18.00 | 0.6 |
325 | -9.00 | 4.8 |
| 60 | -1.00 | 30.2 |
150 | -5.00 | 12.0 |
240 | -17.00 | 0.8 |
330 | -10.00 | 3.8 |
| 65 | -1.00 | 30.2 |
155 | -7.00 | 7.6 |
245 | -17.00 | 0.8 |
335 | -11.00 | 3.0 |
| 70 | 0.00 | 38.1 |
160 | -10.00 | 3.8 |
250 | -16.00 | 1.0 |
340 | -12.00 | 2.4 |
| 75 | 0.00 | 38.1 |
165 | -13.00 | 1.9 |
255 | -16.00 | 1.0 |
345 | -13.00 | 1.9 |
| 80 | 0.00 | 38.1 |
170 | -15.00 | 1.2 |
260 | -16.00 | 1.0 |
350 | -16.00 | 1.0 |
| 85 | 0.00 | 38.1 |
175 | -15.00 | 1.2 |
265 | -15.00 | 1.2 |
355 | -17.00 | 0.8 |
|
|
| Broadcasting Certificate effective date | 05/25/2016 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2030 | | Application received | 01/16/2015 | | Letter of Authorization issued | 12/15/2015 | | On-air date | 04/04/2016 |
|
