Industry Canada File Number: 20089
CRTC Decision Number: 209999
Channel/Class: 224B (92.7)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 49 43' 50.16" N 97 11' 57.84" W
Short Spacing Code: LI
Site Elevation: 235 m
| Effective Radiated Power |
14.599 kW |
14.599 kW |
| Maximum Effective Radiated Power |
24 kW |
24 kW |
| Height Above Average Terrain |
182m |
182m |
| Radiation Center Above Ground Level |
180m |
180m |
| Radiation Center Above Mean Sea Level |
415m |
415m |
Overall Antenna Height Above Ground: 190 m

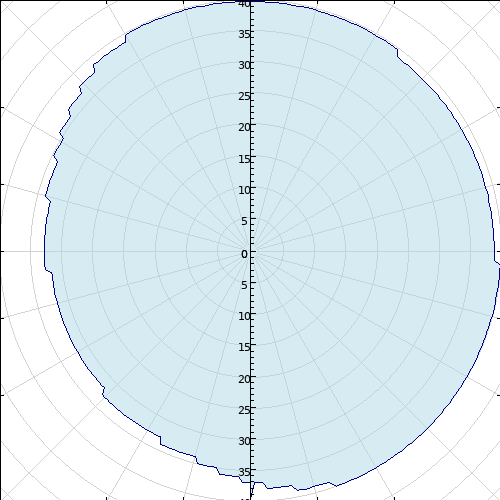

Antenna Type: Directional
Antenna System ID: 5528
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | 0.00 | 24.0 |
90 | -1.00 | 19.1 |
180 | -3.00 | 12.0 |
270 | -7.00 | 4.8 |
| 5 | 0.00 | 24.0 |
95 | 0.00 | 24.0 |
185 | -4.00 | 9.6 |
275 | -7.00 | 4.8 |
| 10 | 0.00 | 24.0 |
100 | 0.00 | 24.0 |
190 | -5.00 | 7.6 |
280 | -7.00 | 4.8 |
| 15 | 0.00 | 24.0 |
105 | 0.00 | 24.0 |
195 | -6.00 | 6.0 |
285 | -6.00 | 6.0 |
| 20 | 0.00 | 24.0 |
110 | 0.00 | 24.0 |
200 | -6.00 | 6.0 |
290 | -6.00 | 6.0 |
| 25 | 0.00 | 24.0 |
115 | 0.00 | 24.0 |
205 | -6.00 | 6.0 |
295 | -6.00 | 6.0 |
| 30 | 0.00 | 24.0 |
120 | 0.00 | 24.0 |
210 | -7.00 | 4.8 |
300 | -5.00 | 7.6 |
| 35 | 0.00 | 24.0 |
125 | 0.00 | 24.0 |
215 | -7.00 | 4.8 |
305 | -4.00 | 9.6 |
| 40 | -1.00 | 19.1 |
130 | 0.00 | 24.0 |
220 | -7.00 | 4.8 |
310 | -3.00 | 12.0 |
| 45 | -1.00 | 19.1 |
135 | 0.00 | 24.0 |
225 | -7.00 | 4.8 |
315 | -2.00 | 15.1 |
| 50 | -1.00 | 19.1 |
140 | 0.00 | 24.0 |
230 | -8.00 | 3.8 |
320 | -1.00 | 19.1 |
| 55 | -1.00 | 19.1 |
145 | 0.00 | 24.0 |
235 | -8.00 | 3.8 |
325 | -1.00 | 19.1 |
| 60 | -1.00 | 19.1 |
150 | 0.00 | 24.0 |
240 | -8.00 | 3.8 |
330 | 0.00 | 24.0 |
| 65 | -1.00 | 19.1 |
155 | 0.00 | 24.0 |
245 | -8.00 | 3.8 |
335 | 0.00 | 24.0 |
| 70 | -1.00 | 19.1 |
160 | 0.00 | 24.0 |
250 | -8.00 | 3.8 |
340 | 0.00 | 24.0 |
| 75 | -1.00 | 19.1 |
165 | -1.00 | 19.1 |
255 | -8.00 | 3.8 |
345 | 0.00 | 24.0 |
| 80 | -1.00 | 19.1 |
170 | -2.00 | 15.1 |
260 | -8.00 | 3.8 |
350 | 0.00 | 24.0 |
| 85 | -1.00 | 19.1 |
175 | -2.00 | 15.1 |
265 | -7.00 | 4.8 |
355 | 0.00 | 24.0 |
|
| proposed parameters towards channel 224C1 in Brandon,MB along the azimuths from 243.5° to 294°. 27 kW ERP and 185 m HAAT or equivalent towards channel 223C1 in Warroad, MN (Az.=126.7°) |
| paramètres proposés vers le canal 224C1 à Brandon,MB le long des azimuts de 243.5° to 294°. 27 kW et 185 m ou l'équivalent vers le canal 223C1 à Warroad, MN (Az.=126.7°)
|
|
|
| Broadcasting Certificate effective date | 07/12/2022 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2029 | | Application received | 04/21/2020 | | Letter of Authorization issued | 01/15/2021 | | On-air date | 09/21/2021 | | CRTC letter date | 06/22/2020 | | CRTC hearing date | 07/07/2020 |
|
