Industry Canada File Number: 20039
CRTC Decision Number: 170191
Channel/Class: 259B1 (99.7)
Broadcasting Mode: Stereo
Status: Operational
NAD83 Coordinates: 42 50' 48.12" N 80 19' 41.16" W
Short Spacing Code: LI
Site Elevation: 224 m
| Effective Radiated Power |
11.622 kW |
11.622 kW |
| Maximum Effective Radiated Power |
18 kW |
18 kW |
| Height Above Average Terrain |
28m |
28m |
| Radiation Center Above Ground Level |
30m |
30m |
| Radiation Center Above Mean Sea Level |
254m |
254m |
Overall Antenna Height Above Ground: 36 m

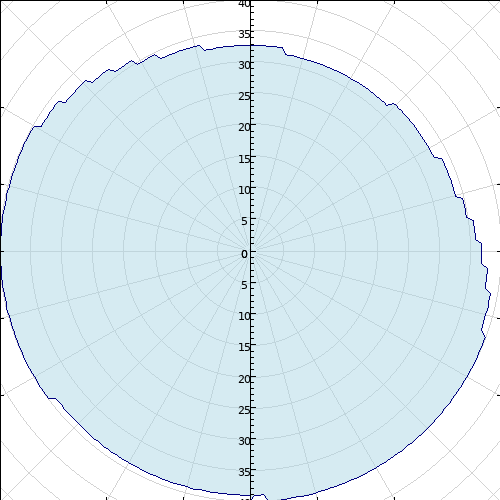

Antenna Type: Directional
Antenna System ID: 3834
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -7.00 | 3.6 |
90 | -3.00 | 9.0 |
180 | -1.00 | 14.3 |
270 | 0.00 | 18.0 |
| 5 | -7.00 | 3.6 |
95 | -2.00 | 11.4 |
185 | -1.00 | 14.3 |
275 | 0.00 | 18.0 |
| 10 | -8.00 | 2.9 |
100 | -1.00 | 14.3 |
190 | -1.00 | 14.3 |
280 | 0.00 | 18.0 |
| 15 | -8.00 | 2.9 |
105 | -1.00 | 14.3 |
195 | -1.00 | 14.3 |
285 | 0.00 | 18.0 |
| 20 | -8.00 | 2.9 |
110 | 0.00 | 18.0 |
200 | -1.00 | 14.3 |
290 | 0.00 | 18.0 |
| 25 | -8.00 | 2.9 |
115 | 0.00 | 18.0 |
205 | -1.00 | 14.3 |
295 | 0.00 | 18.0 |
| 30 | -8.00 | 2.9 |
120 | 0.00 | 18.0 |
210 | -1.00 | 14.3 |
300 | 0.00 | 18.0 |
| 35 | -8.00 | 2.9 |
125 | 0.00 | 18.0 |
215 | -1.00 | 14.3 |
305 | -1.00 | 14.3 |
| 40 | -8.00 | 2.9 |
130 | 0.00 | 18.0 |
220 | -1.00 | 14.3 |
310 | -2.00 | 11.4 |
| 45 | -7.00 | 3.6 |
135 | 0.00 | 18.0 |
225 | -1.00 | 14.3 |
315 | -2.00 | 11.4 |
| 50 | -7.00 | 3.6 |
140 | 0.00 | 18.0 |
230 | -1.00 | 14.3 |
320 | -3.00 | 9.0 |
| 55 | -7.00 | 3.6 |
145 | 0.00 | 18.0 |
235 | 0.00 | 18.0 |
325 | -4.00 | 7.2 |
| 60 | -7.00 | 3.6 |
150 | 0.00 | 18.0 |
240 | 0.00 | 18.0 |
330 | -5.00 | 5.7 |
| 65 | -6.00 | 4.5 |
155 | 0.00 | 18.0 |
245 | 0.00 | 18.0 |
335 | -6.00 | 4.5 |
| 70 | -6.00 | 4.5 |
160 | 0.00 | 18.0 |
250 | 0.00 | 18.0 |
340 | -6.00 | 4.5 |
| 75 | -6.00 | 4.5 |
165 | 0.00 | 18.0 |
255 | 0.00 | 18.0 |
345 | -6.00 | 4.5 |
| 80 | -5.00 | 5.7 |
170 | 0.00 | 18.0 |
260 | 0.00 | 18.0 |
350 | -7.00 | 3.6 |
| 85 | -4.00 | 7.2 |
175 | 0.00 | 18.0 |
265 | 0.00 | 18.0 |
355 | -7.00 | 3.6 |
|
| 6.2 kW ERP and 30 m HAAT or equivalent towards channel 258B1 in Kitchener, ON (Az.=345.1°). 9 kW ERP and 30 m HAAT or equivalent towards channel 259A in Goderich, ON (Az.=312.1°). proposed parameters towards channel 258B1 in Toronto, ON along the azimuths from 87.7° to 353°. 19.4 kW ERP and 30 m HAAT or equivalent towards channel 260A in London, ON (Az.=282°). 25 kW ERP and 85 m HAAT or equivalent towards channel 260B in Erie, PA (Az.=159.8°). |
| 6.2 kW et 30 m ou l'équivalent vers le canal 258B1 à Kitchener, ON (Az.=345.1°). 9 kW et 30 m ou l'équivalent vers le canal 259A à Goderich, ON (Az.=312.1°). paramètres proposés vers le canal 258B1 à Toronto, ON le long des azimuts de 87.7° à 353°. 19.4 kW et 30 m ou l'équivalent vers le canal 260A à London, ON (Az.=282°). 25 kW et 85 m ou l'équivalent vers le canal 260B à Erie, PA (Az.=159.8°).
|
|
|
| Broadcasting Certificate effective date | 09/27/2018 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2025 | | International coordination request sent | 10/18/2016 | | International coordination reply received | 10/21/2016 | | Application received | 02/23/2016 | | Letter of Authorization issued | 06/12/2017 | | On-air date | 08/07/2018 | | CRTC letter date | 02/26/2016 | | CRTC hearing date | 06/09/2017 |
|
