Industry Canada File Number: 9597 CRTC Decision Number: 130479 Channel/Class: 237C1 (95.3) Broadcasting Mode: Stereo Status: Operational NAD83 Coordinates: 51 4' 21.00" N 114 15' 39.60" W REC measured distance to USA: 228.6 km - 180.1
Short Spacing Code: #LI Site Elevation: 1279 m Subsidiary Carrier Multiple Operation
Effective Radiated Power |
29 kW |
29 kW |
Maximum Effective Radiated Power |
100 kW |
100 kW |
Height Above Average Terrain |
272.9m |
272.9m |
Radiation Center Above Ground Level |
150m |
150m |
Radiation Center Above Mean Sea Level |
1429m |
1429m |

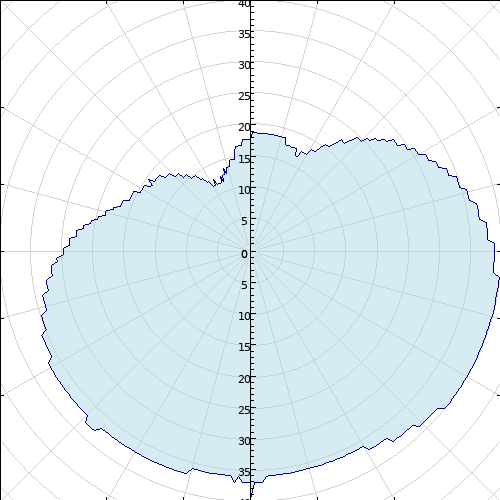

Overall Antenna Height Above Ground: 243 m Antenna Type: Directional Antenna System ID: 3257
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
0 | -22.16 | 0.6 |
90 | -1.64 | 68.6 |
180 | -3.99 | 39.9 |
270 | -10.34 | 9.2 |
5 | -21.41 | 0.7 |
95 | -1.01 | 79.2 |
185 | -4.03 | 39.6 |
275 | -12.11 | 6.2 |
10 | -21.11 | 0.8 |
100 | -0.50 | 89.1 |
190 | -4.05 | 39.3 |
280 | -14.38 | 3.6 |
15 | -21.51 | 0.7 |
105 | -0.21 | 95.3 |
195 | -4.01 | 39.7 |
285 | -16.48 | 2.2 |
20 | -22.27 | 0.6 |
110 | -0.02 | 99.6 |
200 | -3.85 | 41.2 |
290 | -18.42 | 1.4 |
25 | -23.48 | 0.4 |
115 | -0.05 | 98.8 |
205 | -3.64 | 43.3 |
295 | -19.74 | 1.1 |
30 | -22.16 | 0.6 |
120 | -0.22 | 95.1 |
210 | -3.30 | 46.8 |
300 | -20.54 | 0.9 |
35 | -19.91 | 1.0 |
125 | -0.57 | 87.6 |
215 | -3.10 | 49.0 |
305 | -20.92 | 0.8 |
40 | -17.46 | 1.8 |
130 | -1.09 | 77.8 |
220 | -3.01 | 50.0 |
310 | -21.94 | 0.6 |
45 | -15.09 | 3.1 |
135 | -1.74 | 66.9 |
225 | -3.02 | 49.8 |
315 | -23.10 | 0.5 |
50 | -12.80 | 5.2 |
140 | -2.48 | 56.6 |
230 | -3.15 | 48.4 |
320 | -24.73 | 0.3 |
55 | -10.72 | 8.5 |
145 | -3.26 | 47.2 |
235 | -3.45 | 45.2 |
325 | -26.56 | 0.2 |
60 | -9.07 | 12.4 |
150 | -4.01 | 39.7 |
240 | -3.86 | 41.1 |
330 | -28.18 | 0.2 |
65 | -7.35 | 18.4 |
155 | -4.41 | 36.2 |
245 | -4.51 | 35.4 |
335 | -28.87 | 0.1 |
70 | -5.97 | 25.3 |
160 | -4.58 | 34.8 |
250 | -5.22 | 30.0 |
340 | -27.74 | 0.2 |
75 | -4.61 | 34.6 |
165 | -4.41 | 36.2 |
255 | -6.20 | 24.0 |
345 | -26.20 | 0.2 |
80 | -3.49 | 44.8 |
170 | -4.21 | 37.9 |
260 | -7.37 | 18.3 |
350 | -25.19 | 0.3 |
85 | -2.51 | 56.1 |
175 | -4.03 | 39.6 |
265 | -8.68 | 13.5 |
355 | -23.10 | 0.5 |
limited to proposed parameters and antenna pattern towards 236B in Banff, AB (Az.=236°- 322°) limited to proposed parameters and antenna pattern towards 238C1 in Lethbridge, AB (Az.=116° - 175°) limited to proposed parameters and antenna pattern towards 238C1#(L) in Red Deer, AB (Az.=339° - 53°) limited to proposed parameters and antenna pattern towards 238A# in Radium, BC (Az.=233° - 265°) |
limité aux paramètres proposés et patron d'antenne vers 236B à Banf, AB (Az.=236°-322°) limité aux paramètres proposés et patron d'antenne vers 238C1 à Lethbridge, AB (Az.=116°-175°) limité aux paramètres proposés et patron d'antenne vers 238C1#(L) in Red Deer, AB (Az.=339°-53°) limité aux paramètres proposés et patron d'antenne vers 238A# in Radium, BC (Az.=233°-265°) |
| |
Broadcasting Certificate effective date | 03/11/2016 | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2021 | International coordination request sent | 10/03/2013 | International coordination reply received | 11/12/2013 | Application received | 03/01/2016 | Letter of Authorization issued | 10/11/2013 | On-air date | 04/15/2014 | CRTC letter date | 06/14/2013 | CRTC hearing date | 09/11/2013 | |
