Industry Canada File Number: 3830
CRTC Decision Number: 109999
Channel: 10
Station Class: R
Status:
NAD83 Coordinates: 42 56' 58.92" N 81 15' 51.84" W
REC measured distance to USA: 78.2 km - 166.1
Site Elevation: 279 m
Allocation Planning Zone: 1
Effective HAAT: 299 m
Site Elevation: 279 m
Overall Antenna Height Above Ground: 294 m
Radiation Center Above Mean Sea Level: 562 m
Effective Radiated Power (ERP): 13 kW

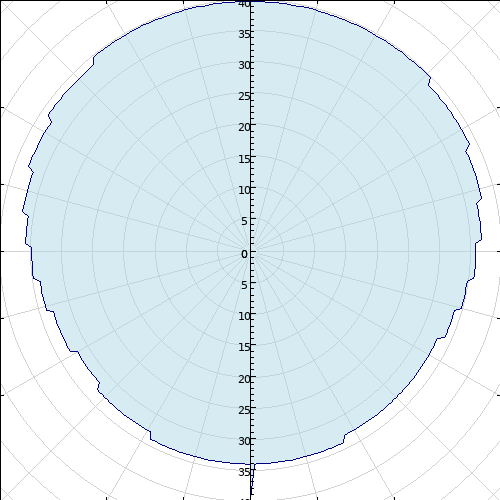

Antenna Type: Directional
Antenna System ID: 2030
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | 0.00 | 13.0 |
90 | -4.00 | 5.2 |
180 | -6.00 | 3.3 |
270 | -5.00 | 4.1 |
| 5 | 0.00 | 13.0 |
95 | -4.00 | 5.2 |
185 | -6.00 | 3.3 |
275 | -4.00 | 5.2 |
| 10 | 0.00 | 13.0 |
100 | -5.00 | 4.1 |
190 | -6.00 | 3.3 |
280 | -3.00 | 6.5 |
| 15 | 0.00 | 13.0 |
105 | -5.00 | 4.1 |
195 | -6.00 | 3.3 |
285 | -3.00 | 6.5 |
| 20 | 0.00 | 13.0 |
110 | -6.00 | 3.3 |
200 | -6.00 | 3.3 |
290 | -3.00 | 6.5 |
| 25 | 0.00 | 13.0 |
115 | -7.00 | 2.6 |
205 | -6.00 | 3.3 |
295 | -2.00 | 8.2 |
| 30 | 0.00 | 13.0 |
120 | -7.00 | 2.6 |
210 | -7.00 | 2.6 |
300 | -2.00 | 8.2 |
| 35 | 0.00 | 13.0 |
125 | -7.00 | 2.6 |
215 | -7.00 | 2.6 |
305 | -1.00 | 10.3 |
| 40 | 0.00 | 13.0 |
130 | -7.00 | 2.6 |
220 | -7.00 | 2.6 |
310 | -1.00 | 10.3 |
| 45 | 0.00 | 13.0 |
135 | -7.00 | 2.6 |
225 | -7.00 | 2.6 |
315 | -1.00 | 10.3 |
| 50 | -1.00 | 10.3 |
140 | -7.00 | 2.6 |
230 | -8.00 | 2.1 |
320 | -1.00 | 10.3 |
| 55 | -1.00 | 10.3 |
145 | -7.00 | 2.6 |
235 | -8.00 | 2.1 |
325 | 0.00 | 13.0 |
| 60 | -1.00 | 10.3 |
150 | -7.00 | 2.6 |
240 | -8.00 | 2.1 |
330 | 0.00 | 13.0 |
| 65 | -2.00 | 8.2 |
155 | -6.00 | 3.3 |
245 | -7.00 | 2.6 |
335 | 0.00 | 13.0 |
| 70 | -2.00 | 8.2 |
160 | -6.00 | 3.3 |
250 | -7.00 | 2.6 |
340 | 0.00 | 13.0 |
| 75 | -2.00 | 8.2 |
165 | -6.00 | 3.3 |
255 | -6.00 | 3.3 |
345 | 0.00 | 13.0 |
| 80 | -3.00 | 6.5 |
170 | -6.00 | 3.3 |
260 | -6.00 | 3.3 |
350 | 0.00 | 13.0 |
| 85 | -3.00 | 6.5 |
175 | -6.00 | 3.3 |
265 | -5.00 | 4.1 |
355 | 0.00 | 13.0 |
|
|
| Broadcasting Certificate effective date | 12/29/2014 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 08/31/2029 | | Application received | 10/29/2010 | | Letter of Authorization issued | 02/07/2011 | | On-air date | 12/29/2014 | | CRTC letter date | 11/25/2010 | | CRTC hearing date | 11/29/2010 |
|
