Industry Canada File Number: 1011
CRTC Decision Number: 130021
Channel: 17
Station Class: R
Status: Operational
NAD83 Coordinates: 43 15' 38.88" N 80 26' 38.04" W
REC measured distance to USA: 96.7 km - 151.3
Site Elevation: 304.8 m
Effective HAAT: 272 m
Site Elevation: 304.8 m
Overall Antenna Height Above Ground: 312.1 m
Radiation Center Above Mean Sea Level: 563.8 m
Effective Radiated Power (ERP): 97 kW average / 165 kW peak

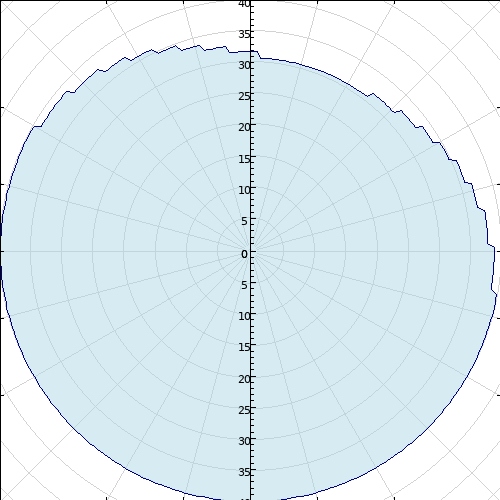

Antenna Type: Directional
Antenna System ID: 2079
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -14.33 | 3.6 |
90 | -11.37 | 7.1 |
180 | -46.02 | 0.0 |
270 | -0.30 | 90.5 |
| 5 | -6.38 | 22.3 |
95 | -7.40 | 17.7 |
185 | -46.02 | 0.0 |
275 | -10.63 | 8.4 |
| 10 | -7.33 | 17.9 |
100 | -14.42 | 3.5 |
190 | -11.10 | 7.5 |
280 | -10.52 | 8.6 |
| 15 | -13.63 | 4.2 |
105 | -15.92 | 2.5 |
195 | -46.02 | 0.0 |
285 | -1.80 | 64.1 |
| 20 | -8.40 | 14.0 |
110 | -10.40 | 8.8 |
200 | -46.02 | 0.0 |
290 | -3.30 | 45.4 |
| 25 | -8.40 | 14.0 |
115 | -20.92 | 0.8 |
205 | -4.00 | 38.6 |
295 | -9.58 | 10.7 |
| 30 | -9.11 | 11.9 |
120 | -24.44 | 0.3 |
210 | -2.70 | 52.1 |
300 | -3.90 | 39.5 |
| 35 | -8.18 | 14.8 |
125 | -8.80 | 12.8 |
215 | -27.96 | 0.2 |
305 | -2.30 | 57.1 |
| 40 | -7.96 | 15.5 |
130 | -7.70 | 16.5 |
220 | -1.50 | 68.7 |
310 | -8.59 | 13.4 |
| 45 | -5.89 | 25.0 |
135 | -40.00 | 0.0 |
225 | -1.00 | 77.0 |
315 | -0.70 | 82.6 |
| 50 | -4.95 | 31.0 |
140 | -8.00 | 15.4 |
230 | -6.69 | 20.8 |
320 | -1.30 | 71.9 |
| 55 | -7.33 | 17.9 |
145 | -9.50 | 10.9 |
235 | -1.00 | 77.0 |
325 | -8.13 | 14.9 |
| 60 | -4.25 | 36.4 |
150 | -46.02 | 0.0 |
240 | -1.40 | 70.3 |
330 | -8.11 | 15.0 |
| 65 | -3.82 | 40.3 |
155 | -11.50 | 6.9 |
245 | -8.07 | 15.1 |
335 | -4.00 | 38.6 |
| 70 | -8.40 | 14.0 |
160 | -10.50 | 8.6 |
250 | -8.59 | 13.4 |
340 | -8.20 | 14.7 |
| 75 | -2.71 | 52.0 |
165 | -46.02 | 0.0 |
255 | -3.50 | 43.3 |
345 | -8.34 | 14.2 |
| 80 | -2.05 | 60.5 |
170 | -46.02 | 0.0 |
260 | -9.90 | 9.9 |
350 | -0.40 | 88.5 |
| 85 | -10.46 | 8.7 |
175 | -9.30 | 11.4 |
265 | -10.37 | 8.9 |
355 | -8.75 | 12.9 |
|
|
| Broadcasting Certificate effective date | 01/29/2015 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 09/01/2017 | | Application received | 09/16/2012 | | Letter of Authorization issued | 01/22/2013 | | On-air date | 01/29/2015 | | CRTC letter date | 10/10/2012 | | CRTC hearing date | 01/22/2013 |
|
