Industry Canada File Number: 1011
CRTC Decision Number: 130021
Channel: 17
Station Class: R
Status: Operational
NAD83 Coordinates: 43 15' 38.88" N 80 26' 38.04" W
REC measured distance to USA: 96.7 km - 151.3
Site Elevation: 304.8 m
Effective HAAT: 272 m
Site Elevation: 304.8 m
Overall Antenna Height Above Ground: 312.1 m
Radiation Center Above Mean Sea Level: 563.8 m
Effective Radiated Power (ERP): 97 kW average / 165 kW peak

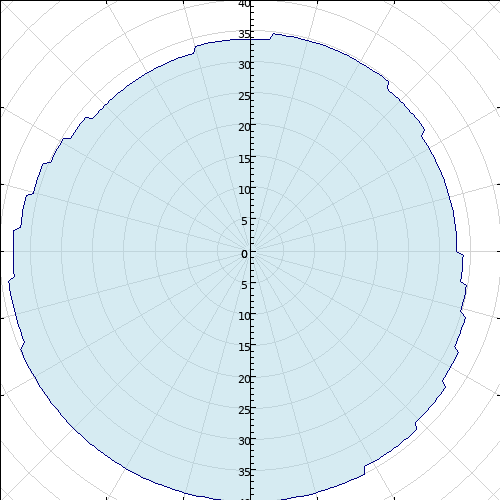

Antenna Type: Directional
Antenna System ID: 2802
| Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
Rad |
dB |
ERP |
| 0 | -3.74 | 41.0 |
90 | -11.37 | 7.1 |
180 | -0.86 | 79.5 |
270 | -2.62 | 53.1 |
| 5 | -4.88 | 31.5 |
95 | -0.62 | 84.2 |
185 | -46.02 | 0.0 |
275 | -2.47 | 55.0 |
| 10 | -7.33 | 17.9 |
100 | -0.22 | 92.2 |
190 | -46.02 | 0.0 |
280 | -0.92 | 78.6 |
| 15 | -6.78 | 20.4 |
105 | -15.92 | 2.5 |
195 | -2.15 | 59.2 |
285 | -0.26 | 91.3 |
| 20 | -7.54 | 17.1 |
110 | -18.42 | 1.4 |
200 | -46.02 | 0.0 |
290 | -3.26 | 45.8 |
| 25 | -8.40 | 14.0 |
115 | -0.10 | 94.8 |
205 | -46.02 | 0.0 |
295 | -0.09 | 95.1 |
| 30 | -8.40 | 14.0 |
120 | -24.44 | 0.3 |
210 | -1.84 | 63.5 |
300 | -0.63 | 83.9 |
| 35 | -7.86 | 15.9 |
125 | -27.96 | 0.2 |
215 | -27.96 | 0.2 |
305 | -4.36 | 35.5 |
| 40 | -7.96 | 15.5 |
130 | -0.72 | 82.2 |
220 | -21.94 | 0.6 |
310 | -5.21 | 29.2 |
| 45 | -7.54 | 17.1 |
135 | -40.00 | 0.0 |
225 | -0.66 | 83.4 |
315 | -4.58 | 33.8 |
| 50 | -6.02 | 24.3 |
140 | -46.02 | 0.0 |
230 | -0.40 | 88.4 |
320 | -1.30 | 71.9 |
| 55 | -7.33 | 17.9 |
145 | -1.95 | 61.9 |
235 | -12.04 | 6.1 |
325 | -2.60 | 53.3 |
| 60 | -7.54 | 17.1 |
150 | -2.11 | 59.7 |
240 | -0.01 | 96.8 |
330 | -6.02 | 24.2 |
| 65 | -2.79 | 51.0 |
155 | -46.02 | 0.0 |
245 | -0.12 | 94.4 |
335 | -4.00 | 38.6 |
| 70 | -1.83 | 63.6 |
160 | -1.70 | 65.6 |
250 | -7.13 | 18.8 |
340 | -3.00 | 48.6 |
| 75 | -8.87 | 12.6 |
165 | -1.25 | 72.7 |
255 | -0.59 | 84.7 |
345 | -6.74 | 20.5 |
| 80 | -0.54 | 85.7 |
170 | -46.02 | 0.0 |
260 | -0.93 | 78.3 |
350 | -6.56 | 21.4 |
| 85 | -0.27 | 91.2 |
175 | -0.74 | 81.8 |
265 | -3.74 | 41.0 |
355 | -0.10 | 94.8 |
|
|
| Broadcasting Certificate effective date | 01/29/2015 | | Broadcasting Certificate renewal date or LOA or OATA expiry date | 09/01/2017 | | Application received | 09/16/2012 | | Letter of Authorization issued | 01/22/2013 | | On-air date | 01/29/2015 | | CRTC letter date | 10/10/2012 | | CRTC hearing date | 01/22/2013 |
|
